Boreway 300 to 800mm U shape Diamond Segments For Edge Cutting Limestone

Add / Delete to Basket

Product parameters

Name:	Boreway 300 to 800mm U shape Diamond Segments For Edge Cutting Limestone
Model Number:	BW-DSEMB-00
Place of Origin:	Fujian, China
Brand Name:	Boreway
Supply Type:	Manufactory
Diameter Size:	300-800mm
Welding method:	Silver Welding
Base and Matrix Type:	Normal, Silent
Machine:	Bridge Cutting Machine
Application:	For Slab Edge Cutting Of Marble, Limestone

Product Description

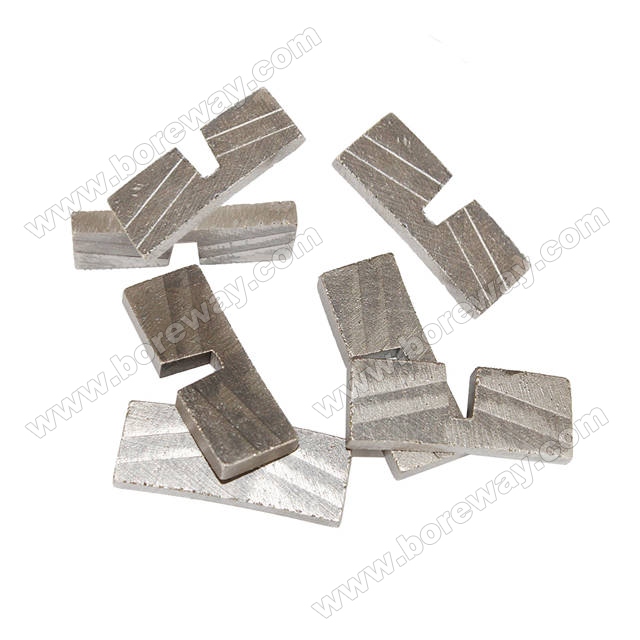

Boreway 300 to 800mm U shape Diamond Segments For Edge Cutting Limestone

Descriptions:

300 to 800mm u shape diamond segments:

Under same segment bond condition, short length means less resistance, 300 to 800mm u shape diamond segments for Marble is good to reduce the cutting resistance from the stones, thus it help to improve the cutting speed. With the improving of the cutting speed, this design give very smooth cutting.

Our 300 to 800mm u shape diamond segments for Marble are made by high-quality diamond powder and metal

powder mixture,produced by pressing and sintering, diamond powder and metal powder combine

closely, the quality is higher and the effect is better.

Feature:

1.The unique "U" gullet design on segment side face allows high cutting effiency.

2.300 to 800mm u shape diamond segments segment structure reduces blade ston interface while cutting,decreases cutting friction.

3.Ideal debris removal and bettering cooling,reduces frictional heat gain and noise produced by resonance effectively.

4.It will not allow easy edge collapse,broken,slab bend etc.

Specifications:

We are instrumental in providing to our valuable customers excellent quality 300 to 800mm u shape diamond segments which are available with following specification:

Specification	Core Thickness	Segment Dimension	Segment Numbers
300	2.2/2.0	40x3.6/3.3/3.0x15(12)	21
350	2.4/2.2	40x3.6/3.3/3.0x15(12)	24
400	2.8/2.4	40x4.0/3.7/3.4x15(12)	28
500	3.2/2.8	40x4.3/4.0/3.7x15(12)	36
600	3.6/3.2	40x5.0/4.7/4.4x15(12)	42
700	4.0/3.8	40x5.5/5.2/4.9x15(12)	50
800	4.5/4.2	40x6.0/5.7/5.4x15(12)	57

Besides 300 to 800mm u shape diamond segments, All of our products have been strictly tested before access to market. Other specifications can be customized according to requirements.

Applications:

300 to 800mm u shape diamond segments of 300-800mm circular saw blades for slab edge cutting of marble.

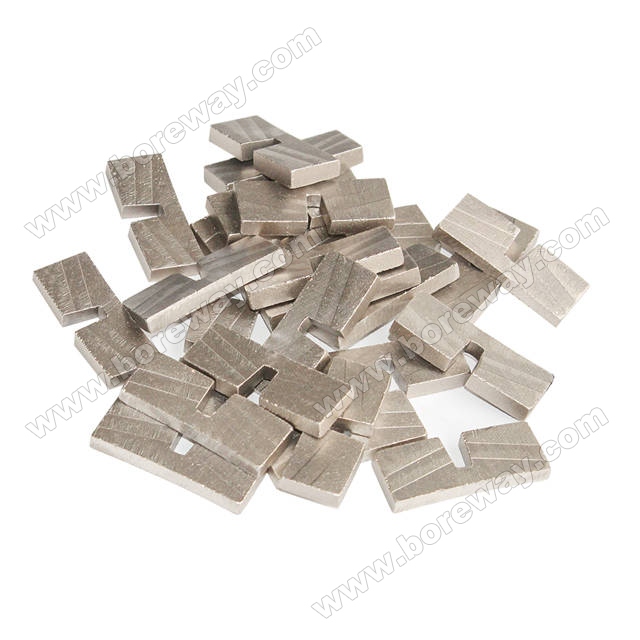

Boreway 300 to 800mm U shape Diamond Segments For Edge Cutting Limestone

Cutting Effect:

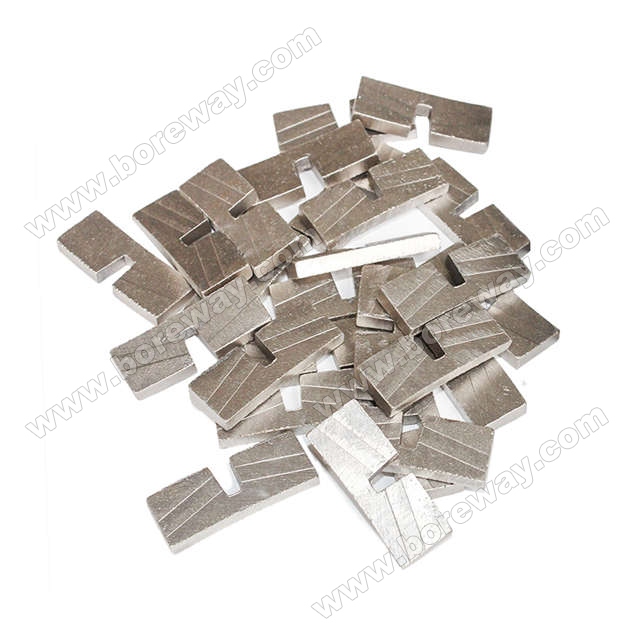

Boreway 300 to 800mm U shape Diamond Segments For Edge Cutting Limestone

Advantages:

1. Unique U shape design, enhance the cutting sharpness.

2. Excellent comprehensive cutting performance

3. 3.Smooth cutting, fast cutting speed, long diamond life.

4. 300 to 800mm u shape diamond segments for cutting stone

5. Using silver high frequency welding to braze the segments on the steelcores

6. The diamond segment has good sharpness and high efficiency at theprocess of cutting. meanwhile, granite cutting blade has a long lifespan

Related Products:

Boreway Hot Pressed U Slot Diamond Segment for Edge Cutting Marble Manufacturer

Sintered Diamond Segment For Cutting Granite Stone

About us:

We have a strict quality control system:

Packing & Delivery:

Our service:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to buy diamond segment, how could we know the quality?

You can buy diamond segment with a small quantity first, test the quality and our service, it will be much better for our long term cooperation. For small quantity, you don’t need to take risk in case the quality doesn’t fit your market.

2. What could we do if we find your diamond segment are not in good performance?

Please tell us the detailed information of the cutting, for example:

1). The RPM of the machine, the cutting object.
2). The detail picture of diamond segment after use, e.g. the cutting side of diamond segment.
3). Do you feed enough cooling water.

3. What is the delivery way?

Express Courier Service, Sea Cargo and so on. We give the advice according to actual situation for customers make decision.
