Boreway 2500MM M Shape Diamond Tips Blade Segment For Cutting Hard Stone

Add / Delete to Basket

Product parameters

Name:	Boreway 2500MM M Shape Diamond Tips Blade Segment For Cutting Hard Stone
Model Number:	BW-DSGB-12-18
Brand Name:	Boreway
Place of Origin:	Fujian, China
Usage:	Wet Use
Shape:	M Shape
Seg.No.:	140pcs
Hole:	100/120MM
Max. RPM:	350 RPM
Disc Diameter:	2500MM

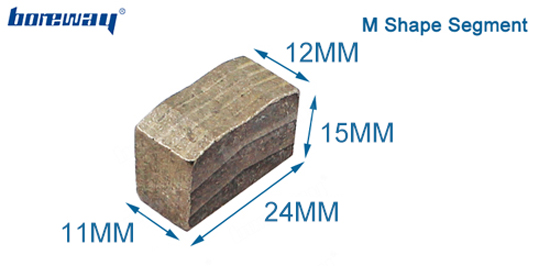

Seg. Size(LxWxH):	24x12/11x15MM
Application	Cutting of Granite

Product Description

Boreway 2500MM M Shape Diamond Tips Blade Segment For Cutting Hard Stone

Feature:

1) 2500mm m shape diamond tips diamond sheet feed and (Ti + Cr + Ni + Co, etc.) to form chemical bonds, can reduce the threshing, improve the edge, extend the service life.

2) A large number of exported to eastern Europe, North America, South America, Middle East, Australia and other overseas markets; Product quality is unanimously recognized the overseas customers.

Advantage:

1) 2500mm m shape diamond tipschange the single grinding for cutting grinding and the blade,the combination of optimization of the cutting performance.

2) Good sharp degree of the cutting tools,cutting speed, cutting efficiency is high.

3) 2000mm good price m shape diamond block segment is good wear-resisting coefficient,long service life, high performance/price ratio,and integrated.

4) Fast cutting, cutting, stitching cut out of stone material surface smooth, uniform size.

Specification:

The following specifications of 2500mm m shape diamond tips:

Diameter		Thickness	Teeth	Segment Size			Hole	Max. RPM
Inch	mm	mm	pcs/set	L	W	H	mm	RPM
100inch	2500	9.0(10.0)	140	24	12.0/11.0	15/20	100/120	350

Boreway 2500MM M Shape Diamond Tips Blade Segment For Cutting Hard Stone

Specially designed tools are available for any standard application. We can

Tailor your tools to your specific needs

PS:A certain amount of cooling water should be added when cutting the cutter head, and the spray water flow should be large, so that it has a better cooling effect!

In addition, the speed of the combined saw blade is required to be 280-320 rpm, and the trolley can not be transported too fast!

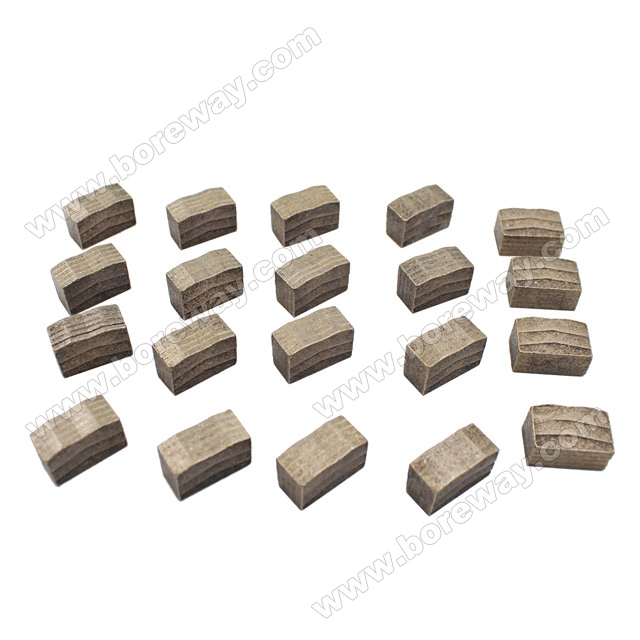

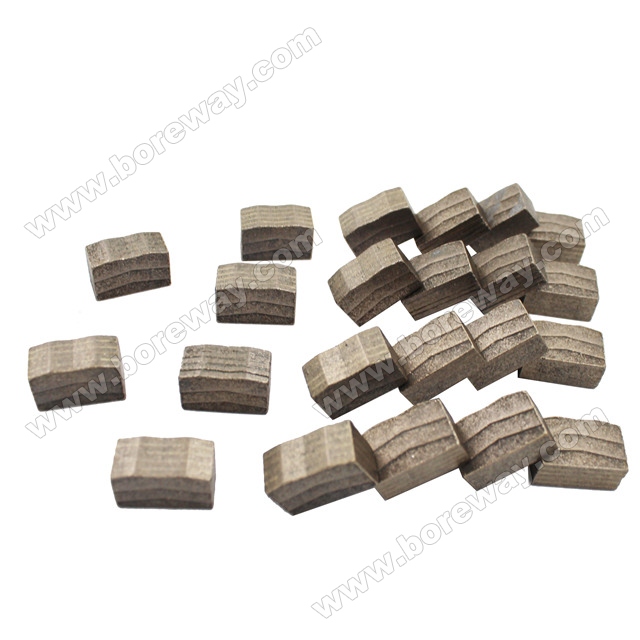

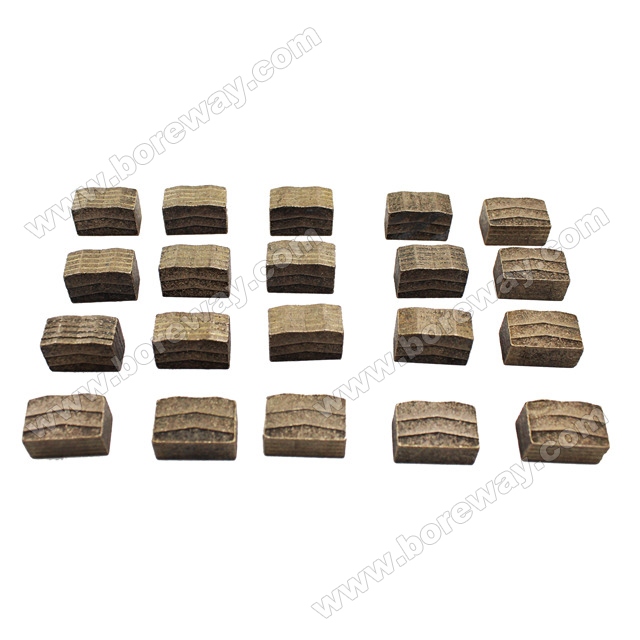

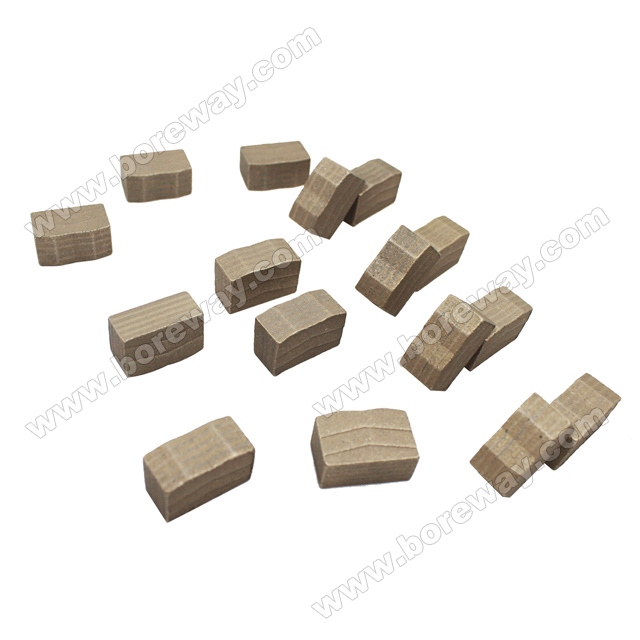

Product Detail:

M shape 2200mm diamond segment

Boreway 2500MM M Shape Diamond Tips Blade Segment For Cutting Hard Stone

M shape 2200mm diamond segment

Application:

2000mm good price m shape diamond block segment for granite cutting used for single or multi circular saw blade from 900mm to 3500mm, Cutting of Granite, Sandstone, various hard stone with quartz.

1. If the material is hard, the bond of the diamond segments should be softer.

Because diamonds will become blunt when cutting hard material. Softer bond can be

worn down with the blunt diamonds faster, then make new diamonds beneath be more easily exposed to participate in cutting

2. If the material is relatively softer, the bond should be harder.

The diamonds can last longer in this care. The harder bond wears slower, so that it can hold the diamonds also longer. This can make better use of the diamonds and prolong the diamond tool's service life.

Application machine:

Welding method: 2000mm good price m shape diamond block segment silver welding by high frequency welding machine.

High frequency silver welded machine is recommended instead of welding by fire.

Don’t weld diamond segment for a long time, just a few minutes, otherwise the diamond inside might be damaged because of the high temperature, which will affect the cutting performance of the granite segment greatly.

Relatsd Products:

Multi Blade Diamond Segment	W Shape Edge Cutting Diamond Segment for Granite	1400mm Diamond Cutting Tools Marble Block Diamond Segments

Please try best to offer below information when you are placing order:

Diam.: (inch or mm)

Segment Size (LxWxH, and thickness of steel core if possible)

Segment Formation (sandwich type or multiple line type)

Welding technology ( Silver Welding by high frequency machine, or Laser weldng)

Cutting target (for granite, sandstone or other hard stone including quartz)

Order quantity (how many pcs of blade or how many sets of segment)

Machine power (motor/rotation speed if possible)

Feeding speed (meter/minute)

Expected cutting depth(mm, at every turn, to and from)

Cooling system(water cooling or oil cooling, is it including coolant, the rate, liter/m )

Expected delivery time

About us:

Our serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?

Please test in a very small order and then you will know the quality. Now, so
Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Plese note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.
