Boreway 24x4.0x10mm Turbo Diamond Segment for Core Bit Factory Price

Product parameters
Name: Boreway 24x4.0x10mm Turbo Diamond Segment for Core Bit Factory Price
Model Number: BW-DS-DB-C02-22
Place of Origin: Fujian, China(Mainland)
Brand Name: Boreway
Segment No.: 12pcs
Diameter: 5.5inch(140mm)
Type: Core Drill Bit
Segment Size: 24x4.0x10mm
Applications: Concrete ,Granite,Marble
Segment Technology: Cold pressed and Hot pressed Sintered
Machinery: Hydraulic power drilling machines, Electric hand-held drills.

Product Description


Boreway 24x4.0x10mm Turbo Diamond Segment for Core Bit Factory Price



 Descriptions:

Factory=Quality Control=Competitive Price=Owntechnology=OEM

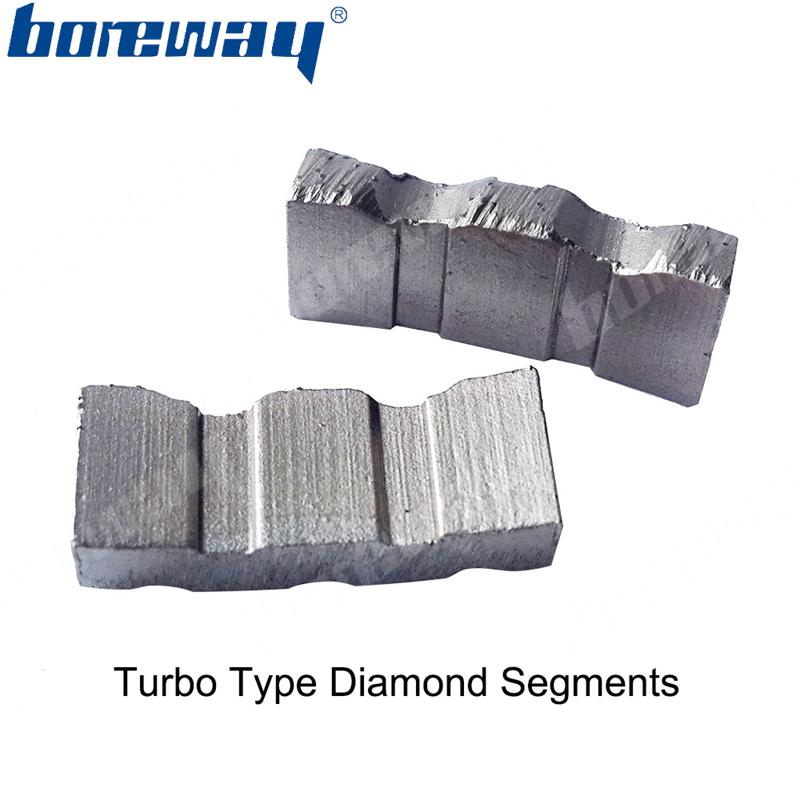

Diamond Segments of Drill Bits - Turbo Shape

24x4.0x10mm Turbo Diamond Segment for factory price of cured reinforced concrete with hard to soft aggregates granite,marble, green concrete or abrasive material.

Boreway 24x4.0x10mm Turbo Core Bit Diamond Segment For Concrete Granite Manufacturer
Specifications:
The following are normal specifications 24x4.0x10mm Turbo Diamond Segment for factory price:



Code No.

Diameter

Segment Size

Segment No.

BW-DSDB-S04-01

1.25"(32mm)

16x3.0x10

4

BW-DSDB-S04-02

1.38"(35mm)

16x3.0x10

4

BW-DSDB-S04-03

1.50"(38mm)

16x3.0x10

5

BW-DSDB-S04-04

1.63"(42mm)

16x3.0x10

5

BW-DSDB-S04-05

1.75"(45mm)

16x3.0x10

6

BW-DSDB-S04-06

1.88"(48mm)

16x3.0x10

6

BW-DSDB-S04-07

2"(52mm)

16x3.0x10

7

BW-DSDB-S04-08

2.25"(57mm)

24x3.5x10

5

BW-DSDB-S04-09

2.50"(63mm)

24x3.5x10

6

BW-DSDB-S04-10

2.75"(70mm)

24x3.5x10

7

BW-DSDB-S04-11

3"(76mm)

24x3.5x10

8

BW-DSDB-S04-12

3.25"(82mm)

24x3.5x10

9

BW-DSDB-S04-13

3.50"(89mm)

24x3.5x10

10

BW-DSDB-S04-14

4"(102mm)

24x3.5x10

10

BW-DS-DB-S04-15

4.25"(108mm)

24x3.5x10

11

BW-DSDB-S04-16

4.50"(114mm)

24x3.5x10

11

BW-DSDB-S04-17

4.75"(120mm)

24x4.0x10

11

BW-DSDB-S04-18

5"(127mm)

24x4.0x10

11

BW-DSDB-S04-19

5.5"(140mm)

24x4.0x10

12

BW-DSDB-S04-20

5.75"(146mm)

24x4.0x10

13

BW-DSDB-S04-21

6"(152mm)

24x4.0x10

13

BW-DSDB-S04-22

6.25"(159mm)

24x4.0x10

14

BW-DSDB-S04-23

6.5"(165mm)

24x4.0x10

15

BW-DSDB-S04-24

7"(178mm)

24x4.0x10

16

BW-DSDB-S04-25

8"(203mm)

24x4.5x10

18

BW-DSDB-S04-26

9"(229mm)

24x4.5x10

20

BW-DSDB-S04-27

10"(254mm)

24x4.5x10

23

BW-DSDB-S04-28

11"(280mm)

24x5.0x10

25

BW-DSDB-S04-29

12"(305mm)

24x5.0x10

27

BW-DSDB-S04-30

13"(330mm)

24x5.5x10

30

BW-DSDB-S04-31

14"(356mm)

24x5.5x10

32

Specialized in making any sizes of diamond segment, we can make many different kinds of quality and sizes to fit your market and your stone.

 Advantages:

1. Fast cutting or drilling,long life,Stable performance,High grade of diamonds



2. Different bonds are for different applications,precise segment size



3. Working safe,quiet,and precise,reducing cutting,working time



4. Great adaptability,No chipping

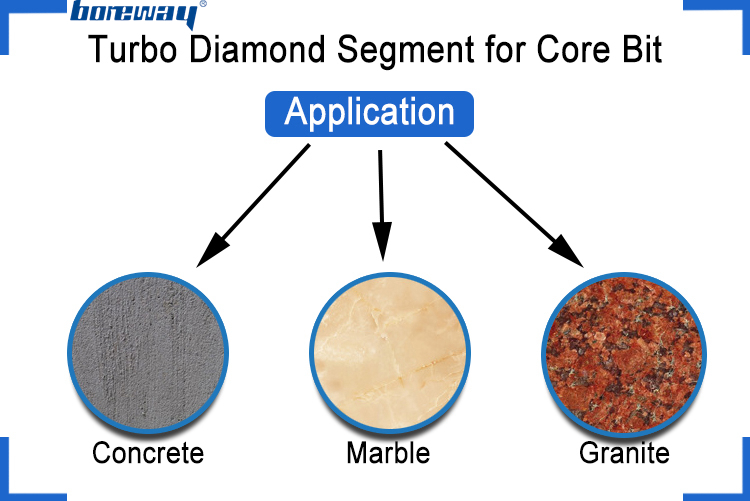

Applications:

24x4.0x10mm turbo diamond segment for factory price used for drilling reinforced concrete,granite,marble etc.

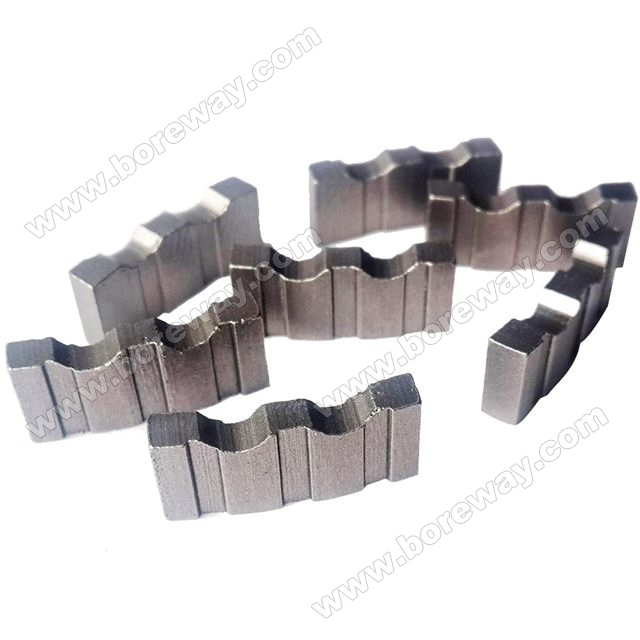

24x4.0x10mm turbo diamond segment

Boreway 24x4.0x10mm Turbo Diamond Segment for Core Bit factory price

Note:
the operator is required to add a certain amount of cooling water, and the spray flow should be large, so that it has better cooling effect, so as to improve the service life of the drill and reduce the cost!

 Machines for drilling bits:

Turbo type diamond segments for reinforced core drill

Machine for making segment:

 Boreway 24x4.0x10mm Turbo Diamond Segment for Core Bit factory price

Machine for welding the segment base:

 Boreway 24x4.0x10mm Turbo Diamond Segment for Core Bit factory price
