Boreway 20mm Height Black Diamond Granite Cutting Segment Tips For Manufacturer

Add / Delete to Basket

Product parameters

Name:	Boreway 20mm Height Black Diamond Granite Cutting Segment Tips For Manufacturer
Model Number:	BW-DSGB-00
Diameter:	900-3500mm
Quality Grade:	A/B/C
Segment Length:	24mm
Segment Width	7-12mm
Segment No.:	64-180pcs
Usage:	Wet or Dry Cutting
Segment Height:	12mm,15mm,20mm,25mm,30mm
Cutting Material:	Stone,Granite,Marble,limestone,sandstone

Product Description

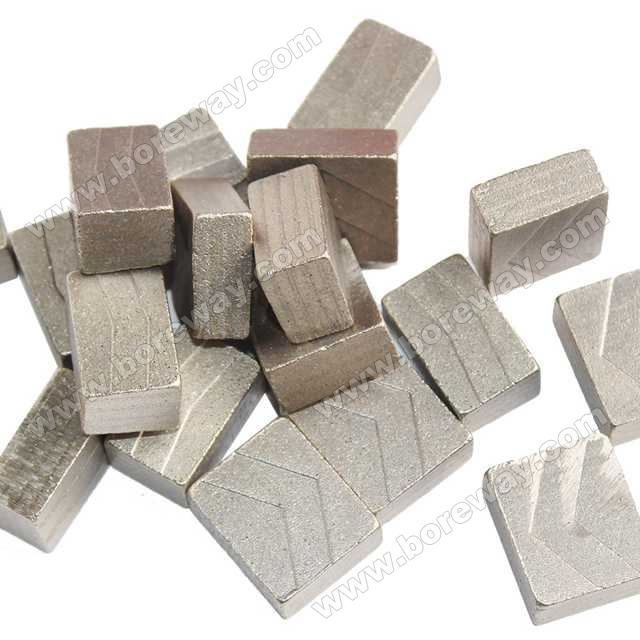

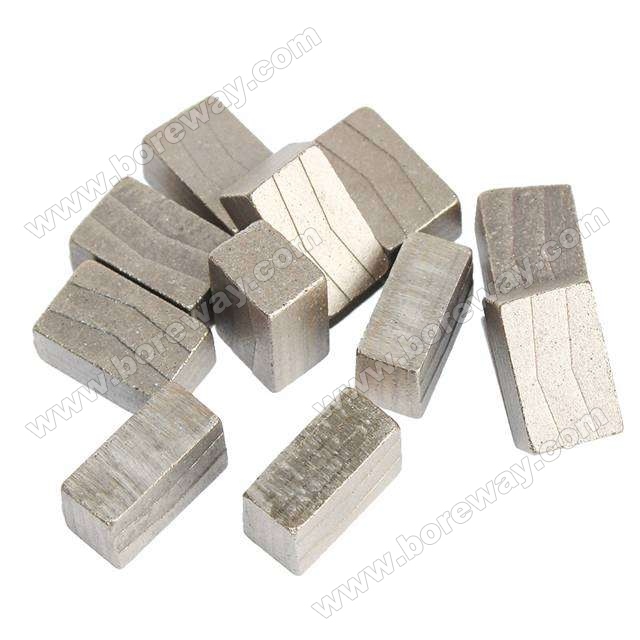

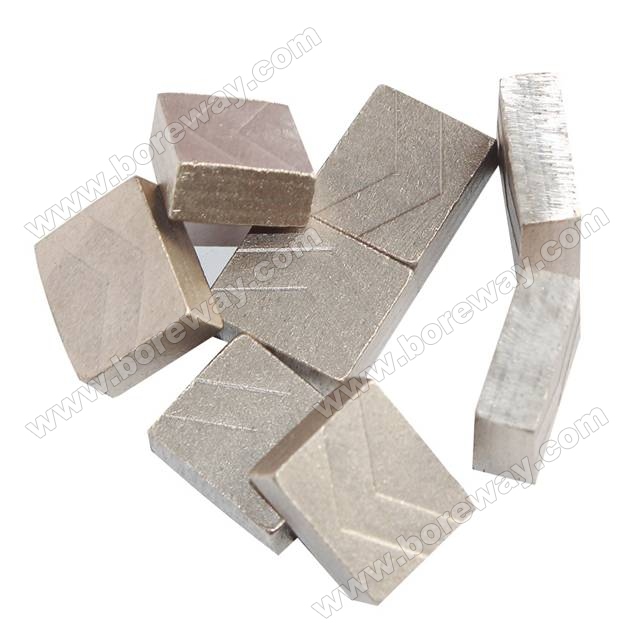

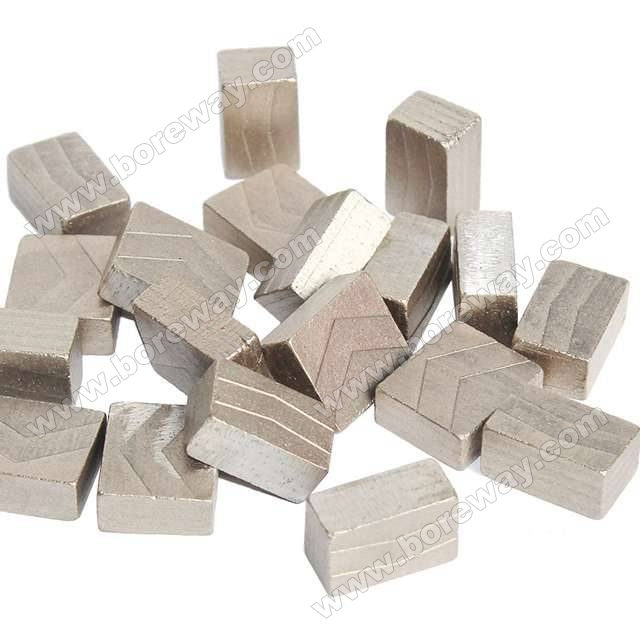

Boreway 20mm Height Black Diamond Granite Cutting Segment Tips For Manufacturer

Descriptions:

Boreway 20mm Height Black Diamond Granite Cutting Segment Tips For Manufacturer

1. 20mm height black diamond granite cutting segment tips for single blade and multi-disc blade used to cut and split stone slab, block and cubes

2. For smooth cutting,with a perfect chip-free edge

3. Best quality control system , select materials

4. Specially developed for general purpose cutting of hard,medium hard, soft stone

Specifications:

The following are normal specifications 20mm height black diamond granite cutting segment tips:

Code.	Diameter (mm)	Segment Dimension (L × W × H)			Segment No.
Code.	Diameter (mm)	Length	Width (Taper Type)	Height	Segment No.
BW-DSGB-02-01	900	24	7.0/6.4	12/15/20	64
BW-DSGB-02-02	1000	24	7.5/7.0/6.5	12/15/20	70
BW-DSGB-02-03	1100	24	7.5/7.0/6.5	12/15/20	74
BW-DSGB-02-04	1200	24	7.8/7.4/7.0	12/15/20	80
BW-DSGB-02-05	1300	24	8.4/7.9/7.4	12/15/20	88
BW-DSGB-02-06	1350	24	8.4/7.9/7.4	12/15/20	88
BW-DSGB-02-07	1400	24	8.4/7.9/7.4	12/15/20	96
BW-DSGB-02-08	1600	24	9.4/8.9/8.4	15/20	104/108
BW-DSGB-02-09	1700	24	9.4/8.9/8.4	15/20	112
BW-DSGB-02-10	1800	24	10/9.4/8.8	15/20	120
BW-DSGB-02-11	2000	24	10.6/10.0/9.6	15/20	128
BW-DSGB-02-12	2200	24	11.5/11/10.5	15/20	132/136
BW-DSGB-02-13	2500	24/30	12/11.5/11	15/20	140
BW-DSGB-02-13	2500	24/30	12.5/12/11.5/11	30	140
BW-DSGB-02-14	2700	24/30	12/11.5/11	15/20/25	140
BW-DSGB-02-14	2700	24/30	12.5/12/11.5/11	30	140
BW-DSGB-02-15	3000	24/30	12.5/12/11.5	20/25	160
BW-DSGB-02-15	3000	24/30	13/12.5/12/11.5	30	160
BW-DSGB-02-16	3500	24/30	13/12.5/12	20/25	180
BW-DSGB-02-16	3500	24/30	13.5/13/12.5/12	30	180

Specially designed tools are available for any standard application. We can
Tailor your tools to your specific needs.

Advantages:

1. Fast cutting , long life , Stable performance, High grade of diamonds

2. Different bonds are for different applications , precise segment size

3. Working safe, quiet, and precise, reducing cutting , working time

4. Great adaptability , No chipping

Applications:

20mm height black diamond granite cutting segment tips used for cutting granite (also other diamond segment for marble, sandstone, limestone, lava, concrete, mine )

Boreway Turbo Type Diamond Segments For Reinforced Core Drill Of Concrete ,Granite,Marble

Machine for making cutter Segment:

20mm height black diamond granite cutting segment tips for make machine

Machine for welding the cutter segment base:

20mm height black diamond granite cutting segment tips for machine
