90mm drain board grinding wheel for stone

Add / Delete to Basket

Product parameters

Name:	90mm drain board grinding wheel for stone
Model Number:	BW-DSSW-04
Product name	90mm drain board grinding wheel for stone
Diameter	90mm
Thickness	25mm
Inner hole	50mm
Use	Wet use
Usage	For milling granite,marble and many other stone
Machine	router machine
Advantage	High efficiency and good quality

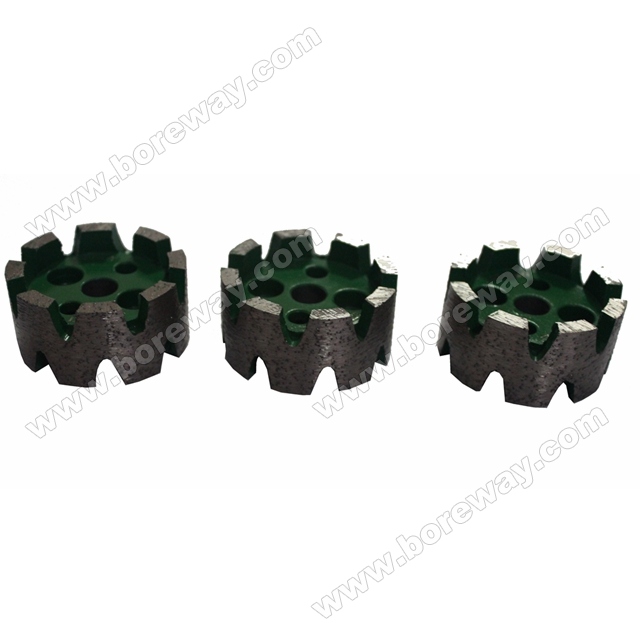

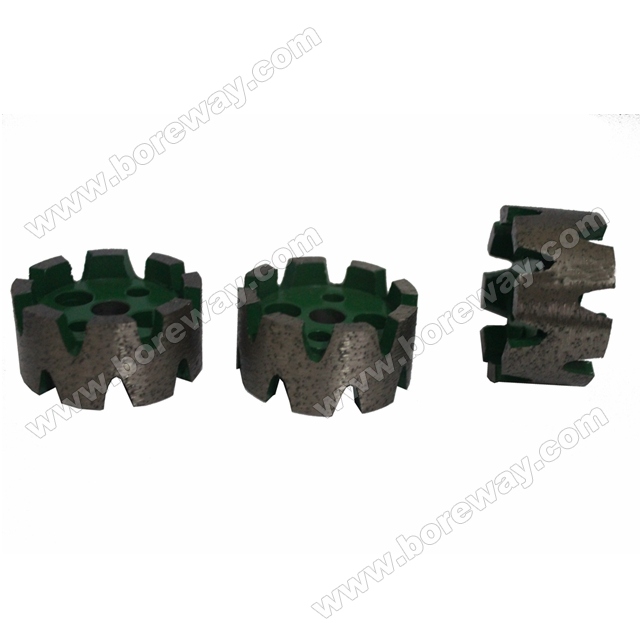

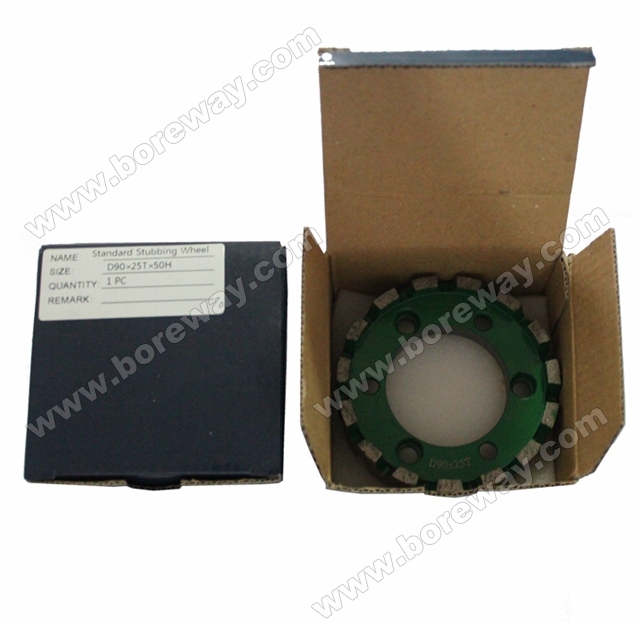

90mm drain board grinding wheel for stone

90mm drain board grinding wheel are used for surface milling and material removal for various granite

and marble stone on router machines.Their merits are high efficiency of production,accuracy in shape and size.

90mm drain board grinding wheel for stone

The wheel segment of shape including continuous tooth and tooth points.

This is our normal specification of drain board grinding wheel:

Product code	Diameter /mm	Segment height /mm	Inner hole /mm	Connection	Grit No.	Machine	Specification of rod
BW-DSSW-01	50	20	10	Φ10-2+2Hole	30/40#,60#, 100#,200#	CNC machine and radial arm machine	D37×90L×1/2"G
		30
		40
BW-DSSW-02	86	20	50	Φ50-3+3Hole			D75×78L×1/2"G
		30
		40
BW-DSSW-03	100	20		Φ50-3+3Hole
		30
		40

The products we supply is not include the rod of diamond standard stubbing wheel. Contact with us if you need it.

The about specifications is only for reference, other or special specification can be order by customers.

When order drain board grinding wheel please Confirm.

Code No. of drain board grinding wheel ( BW-DSSW-04)
Type(?)

Specification of diamond standard stubbing wheel (diameter? Segment height ? Inner hole ?connection ?Grit? )

The rod of diamond standard stubbing wheel(long rod or short rod?)

Quantity(?)
