86mm super duty stubbing wheels

Add / Delete to Basket

Product parameters

Name:	86mm super duty stubbing wheels
Model Number:	BW-DSSW-02
Diameter	86mm
Segment height	20mm
Inner hole	10mm
Connection	Φ10-2+2Hole or Φ50-3+3Hole
Grit No.	30/40#,60#,100#,200#
Machine	CNC machine and radial arm machine
Specification of rod	D37×90L×1/2

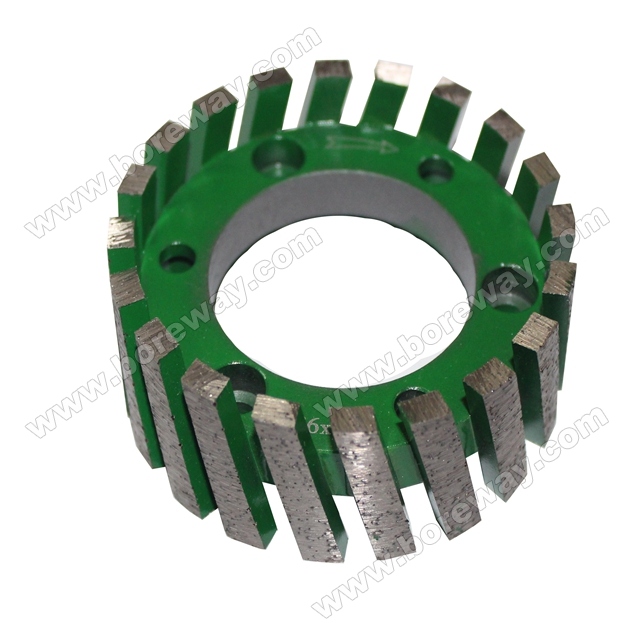

Super duty stubbing wheels

86mm super duty stubbing wheels are used for surface milling and material removal for various

granite and marble stone on router machines.Their merits are high efficiency of production,

accuracy in shape and size.

Super duty stubbing wheels

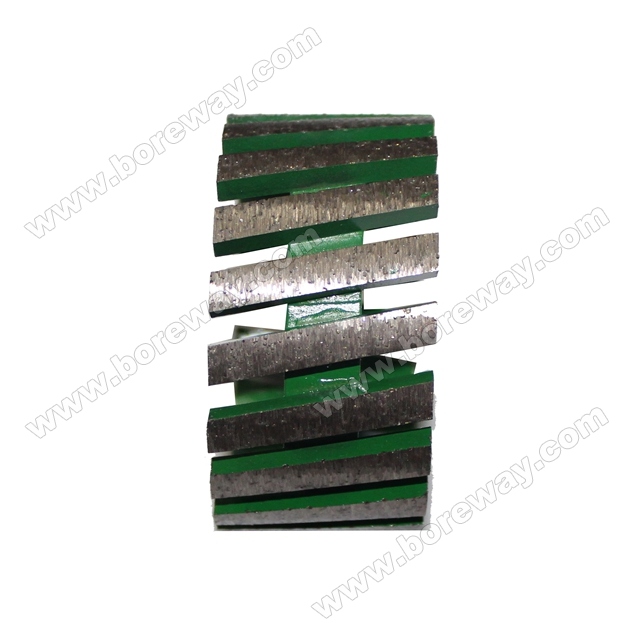

The wheel segment of shape including continuous tooth and tooth points.And the diamond of

the continuous tooth is 90mm.

The follow specification is for tooth points diamond standard stubbing wheel:

Product code	Diameter /mm	Segment height /mm	Inner hole /mm	Connection	Grit No.	Machine	Specification of rod
BW-DSSW -01	50	20	10	Φ10-2+2Hole	30/40# 60# 100# 200#	CNC machine and radial arm machine	D37×90L×1/2"G
		30
		40
BW-DSSW -02	86	20	50	Φ50-3+3Hole			D75×78L×1/2"G
		30
		40
BW-DSSW -03	100	20		Φ50-3+3Hole
		30
		40

The products we supply is not include the rod of diamond standard stubbing wheel.

Contact with us if you need it.

The about specifications is only for reference, other or special specification can be order by customers.

When order super duty stubbing wheel please Confirm.

Code No. of super duty stubbing wheel( BW-DSSW-02)
Type(?)

Specification of diamond standard stubbing wheel (diameter? Segment height ? Inner hole ?connection ?Grit? )

The rod of diamond standard stubbing wheel(long rod or short rod?)

Quantity(?)
