50mm drain board wheel

Add / Delete to Basket

Product parameters

Name:	50mm drain board wheel
Model Number:	BW-DSSW-01
Diameter	50mm
Segment height	20mm
Inner hole	10mm
Connection	Φ10-2+2Hole
Grit No.	30/40#,60#,100#,200#
Machine	CNC machine and radial arm machine
Specification of rod	D37×90L×1/2

Product Description

Description

Drain board wheels are used for surface milling and material removal for various

granite and marble stone on router machines.Their merits are high efficiency of

production,accuracy in shape and size.

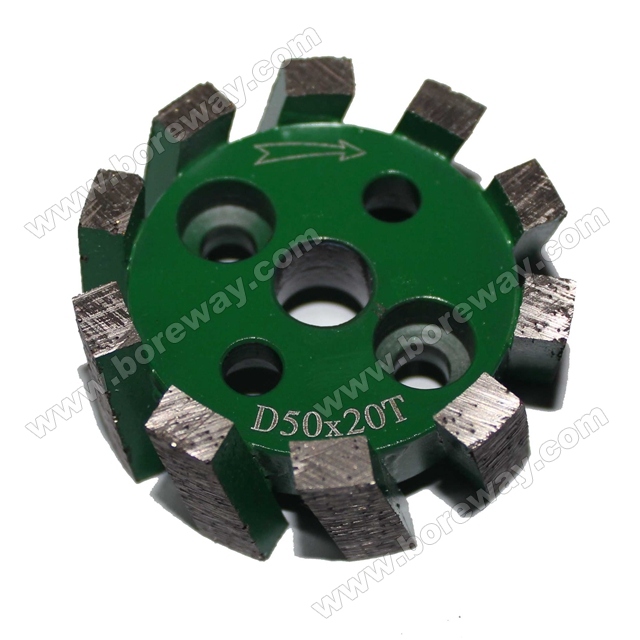

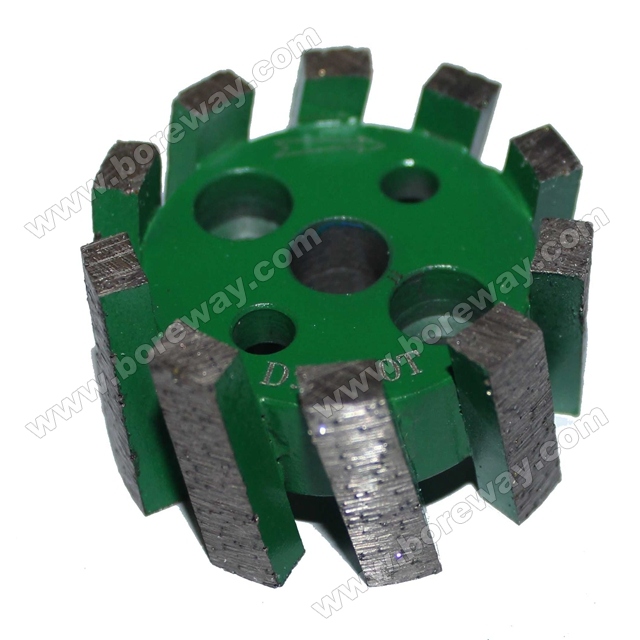

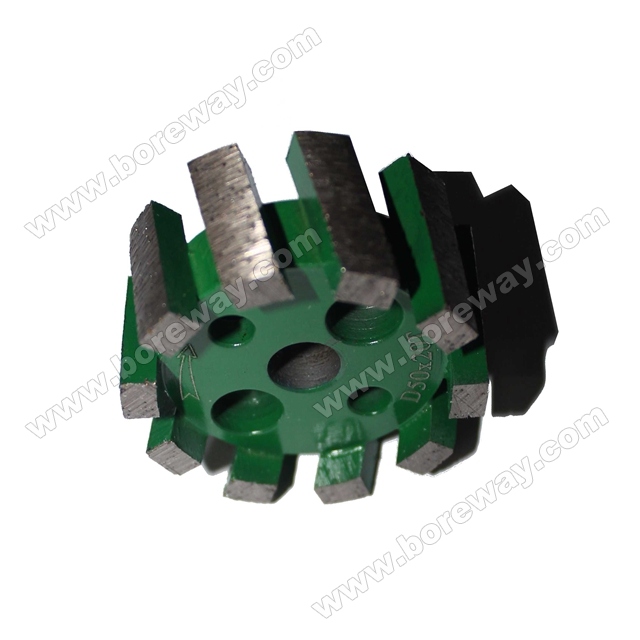

50mm drain board wheel

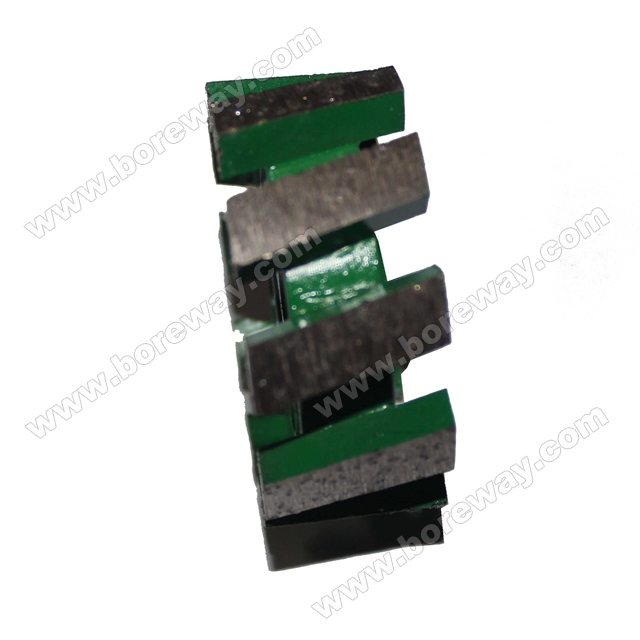

The wheel segment of shape including continuous tooth and tooth points.And the
diamond of the continuous tooth is 90mm, the follow specification is for tooth points

diamond standard stubbing wheel:

Product code	Diameter (mm)	Segment height (mm)	Inner hole (mm)	Connection	Grit No.	Machine	Specification of rod
BW- DSSW-01	50	20	10	Φ10-2+2Hole	30/40# 60# 100# 200#	CNC machine and arm radial machine	D37×90L×1/2"G
		30
		40
BW- DSSW-02	86	20	50	Φ50-3+3Hole			D75×78L×1/2"G
		30
		40
BW- DSSW-03	100	20		Φ50-3+3Hole
		30
		40

The products we supply is not include the rod of diamond standard stubbing wheel.

Contact with us if you need it.

The about specifications is only for reference, other or special specification can be order by customers.

Kindly noted:

When order diamond standard stubbing wheels please Confirm.

Code No. of diamond drain board wheel( BW-DSSW-01)
Type(?)

Specification of diamond standard stubbing wheel (diameter 50mm? Segment height ? Inner hole ?connection ?Grit? )

The rod of diamond standard stubbing wheel(long rod or short rod?)

Quantity(?)
