125mm T Segment Concave Diamond Blade Curved Cutting Turbo Hoop Diamond Granite For Cutting Stone Tools

Add / Delete to Basket

Product parameters

Name:	125mm T Segment Concave Diamond Blade Curved Cutting Turbo Hoop Diamond Granite For Cutting Stone Tools
Model Number:	BW-CSB-02-02

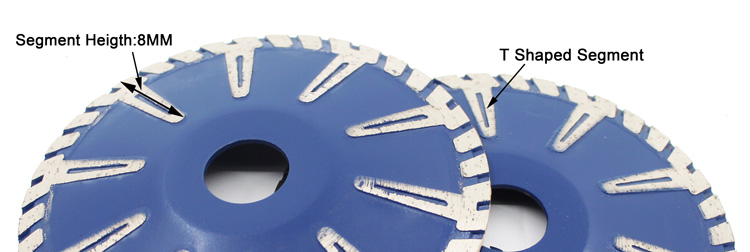

Segment Height:	8mm

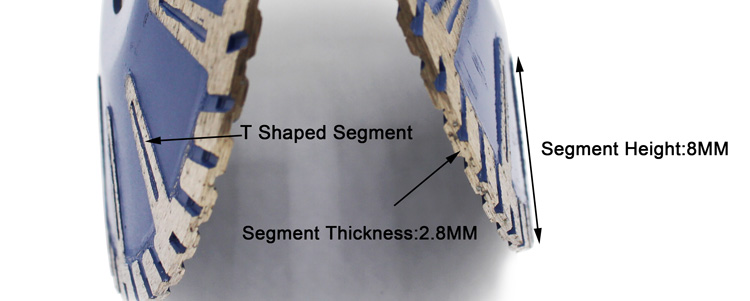

Sement Thickness:	2.8mm
Size:	5Inch
Outer Diameter:	125mm
Type:	Saw Blade
Hole:	22.23mm
Cutting Condition:	Wet Dry Use
Feature:	Delivers a Fast, Smooth Cut
Segment Type:	Turbo,Continuous Rim,Concave
Application:	Stone,Marble,Granite,ConcreteEtc

Product Description

Boreway Continuous Cutting Blade T-Segment Turbo Rim Cutting Blade Granite Marble Concave Curved Saw For Wholesaler

Advantage:

Curved Cutting Turbo Hoop Diamond Granite Disc

1.Sintered segment

2.Delivers a fast, smooth cut

3.For light or medium duty cutters

4.Can be used wet or dry.

5.Basic quality diamond and economical cutting value

6.Designed to cutting brick/block, paves, concrete and stone.

7.Slant segments extend down into the core to help slow wearing process, increasing blade life

Curved Cutting Turbo Hoop Diamond Granite Disc

Specification:

The following specifications of Curved Cutting Turbo Hoop Diamond Granite Disc:

Diameter	Bore (mm)	Segment Height
105mm(4")	20mm 22.23mm(7/8")	8mm
125mm(5")
150mm(6")
180mm(7")

The above specifications & photo is only for Reference, other or special specifications may be available as per customer's demand.

Product Details:

Curved Cutting Turbo Hoop Diamond Granite Disc is widely used for processing stone countertop. With high quality of sawing and grinding,our concave saw blades are welcome by our customers from USA,Canada and European market ect.

Curved Cutting Turbo Hoop Diamond Granite Disc

Attention when use:

1. Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools

2. Do not use any saw blade that has been deformed for being pressed of crashed

3. When operating, operator must wear safety helmet, safety footwear and goggles, protective glove,additionally, if necessary operator must use earplug, mask and so on

4. Electric tools shall have protective cover

Application:

Curved Cutting Turbo Hoop Diamond Granite Disc on both the inside and outside is also excellent, suitable for cutting hard, medium Hard and soft stones, such as granite, marble, sandstone, limestone, etc.

Application:

Curved Cutting Turbo Hoop Diamond Granite Disc with T segmented has deep segment on both sides improve cured cutting, minor grinding and help prevent binding for cured cutting in Granite and Marble.

180mm T Protection Segment Concave Curved Cutting Blade

Note:

1. It is recommended that the operator wear protective glasses, protective masks, work clothes, protective shoes, gloves and other protective equipment;

2. Tighten the installation according to the rotation direction indicated by the saw blade, and do not work in the reverse direction;

3. When dry cutting, please do not cut continuously for a long time, so as not to affect the service life and cutting effect of the saw blade;

4. When using wet slices, water should be added instead of curve cutting. Please use special arc cutting blades for cutting curves;

5. It is forbidden to use cutting discs for polishing operations, please use professional polishing discs for polishing;

6. If the saw blade is not used for cutting operations in accordance with the relevant requirements, a serious injury may occur.

Related Products:

About us:

Our serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?

Please test in a very small order and then you will know the quality. Now, so
Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Plese note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.
