10 Inch Diamond Grinding Plate With 20 Segments For Concrete Terrazzo Floor

Add / Delete to Basket

Product parameters

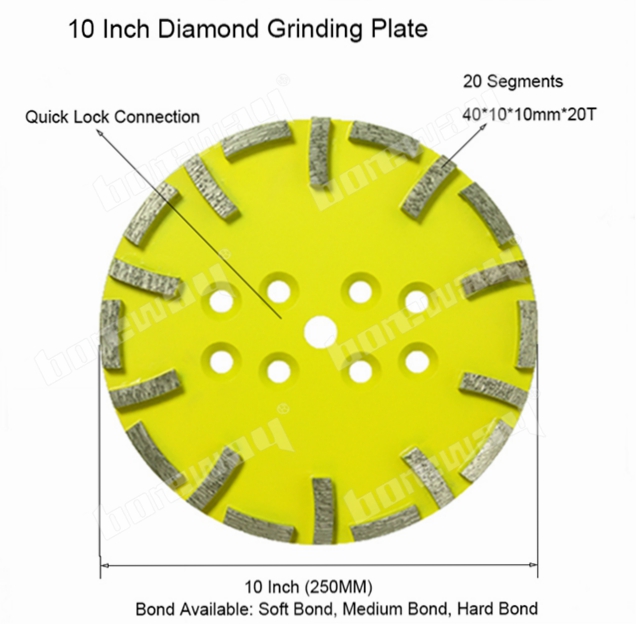

Name:	10 Inch Diamond Grinding Plate With 20 Segments For Concrete Terrazzo Floor
Model Number:	BW-PHX-MET-20
Brand Name:	Boreway
Segment Grit:	16-270# etc.
Size:	20 Segments
Diameter:	10 Inch (D250mm)
Segments Size:	401010mm*20T
Connection:	Quick Lock Connection
Machine:	General Grinding Machine
Segments Material:	Diamonds And Metal Powder
Type:	Diamond Grinding Plate

Product Description

Specifications:

The following are normal Diamond Grinding Plate:

Type:	Abrasive Shoes
Name:	Diamond Grinding Plate
Size:	20 Segments
Diameter:	10 Inch (D250mm)
Segment Size:	401010mm*20T
Connection:	Quick Lock Connection
Material:	Diamonds And Metal Powder
Machine:	General Grinding Machine
Bond:	Very Soft Bond, Soft Bond, Medium Bond, Hard Bond, Very Hard Bond, Extreme Hard Bond

If you are interested in our products, you can click on me.

Descriptions:

10 Inch Diamond Grinding Plate With 20 Segments For Concrete Terrazzo Floor

Diamond Grinding Plate. Using Diamond Grinding Cup Wheel is the most efficient way to grind from marks and imperfections in concrete, as well as masonry, stone and other vonstruction materials.

Diamond Grinding Plate. This single row cup whell is designed for fast removal rates and long lifespan.

Grit To Choose:

Diamond Grinding Plate. Metal bond diamonds have high strength, excellent wear resistance, and a low friction coefficient.

Diamond Grinding Plate. Metal bond diamonds high grinding efficiency and low grinding force generates less heat in the grinding process.

1) Coarse grit: 16#,24#,25#,30# etc.

Could be used for un-even concrete floors , rough grinding preparation on floor or old floor renovation .

2) Medium grits: 36#, 50/60# , 60/80# etc.

Could be used for all kinds of concrete and terrazzo floors , grinding preparation on floor or old floor renovation.

3) Fine grits: 80/100# , 100/120#, 120/150#, 200# etc.

Could be used for all kinds of concrete and terrazzo floors , find grinding preparation on floor or old floor renovation before polishing.

Bond To Choose:

Choosing between soft, medium, and hard bonds.

1. Soft Bond (Yellow) – The metallic powder in the sintered segment wears away quickly releasing dull diamond crystals exposing new abrasive crystals to cut efficiently. Best used on hard surfaces.

2. Medium Bond (Red) – A metal bond strength right between that of soft and hard bonds.

3. Hard Bond (Black) – The bond of the metallic powder in the segment wears away slowly and prevents premature wear against soft, abrasive surfaces.

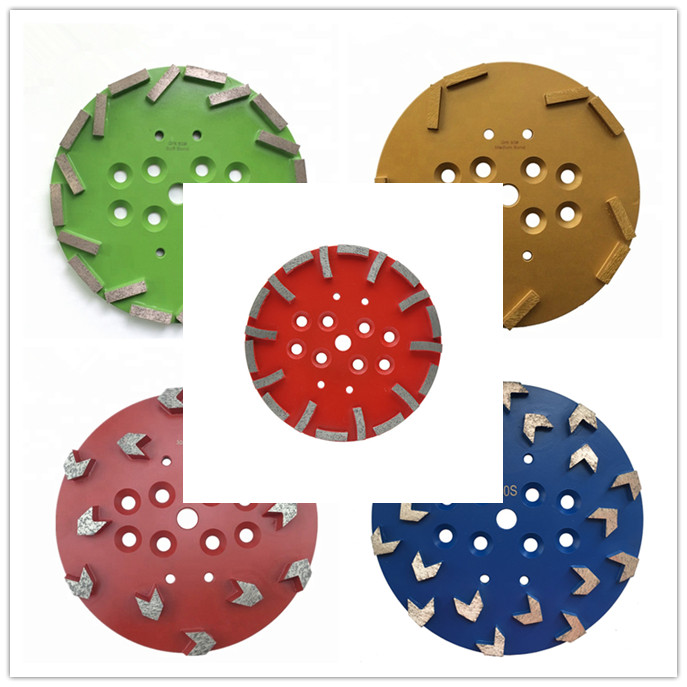

Color:

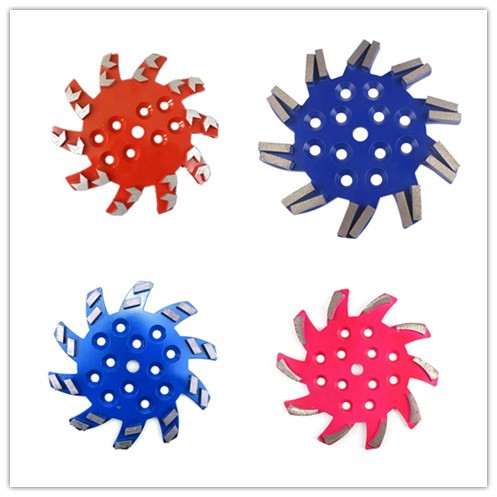

Note: special logo, segment size and shapes, installation are available by customer's request.

Applications:

Diamond Grinding Plate Granite, marble, concrete products, masonry material and all types of natural stone.

Advantages:

1. Diamond Grinding Plate venting holes for fast, dry or wet grinding with long life.

2. Grinding segments with heat treated steel bodies which provide increases durability and wheel life.

3. The high diamond concentration provides for a faster cut rate while the high quality of the diamonds provides longer blade life.

Features:

1. Venting holes for fast, dry or wet grinding with long life.

2. Suitable for use on grinding on marble, tile, concrete, and rock.

3. Diamond Grinding Plate is ideal for beveling, smoothing and shaping.

4.Grinding segments with heat treated steel bodies which provide increases durability and grinding life.

5. The high diamond concentration provides for a faster cut rate while the high quality of the diamonds provides longer blade life.

Packaging:
