Product parameters

Name:	Long Life Diamond Cutting Segment For Single Saw Blade Manufacturer
Model Number:	BW-DSGB-9-13
Brand	Boreway
Segment Type	Sandwich
Material	Diamond Powder
Diameter	1600mm,64 Inch
Segment Size	24x9.2/8.4x13/15mm
Effect	Uniform Cutting Size, Straight Cutting
Application	For Cutting Granite And Other Stone
Machine	Wet Used For Bridge Cutting Machine,Single Arm Machines

Product Description

Long Life Diamond Cutting Segment For Single Saw Blade Manufacturer

Description:

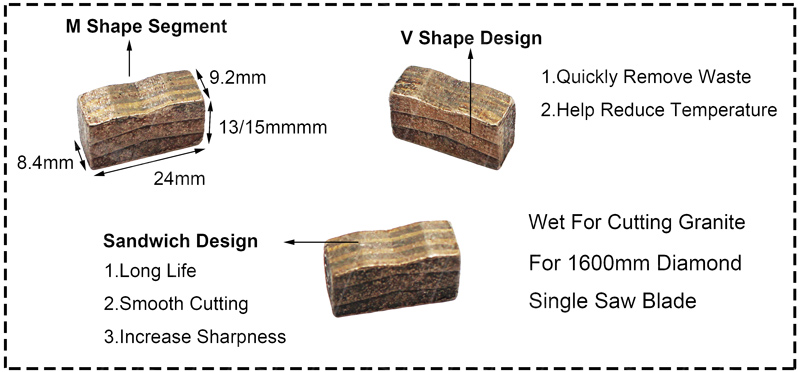

The cutter head has a professional sandwich design, the long life diamond saw blade segment length is 24mm, the thickness is 9.2mm, 8.4mm, and the height can be made 13mm, 15mm, 20mm.Welded on 1600mm circular diamond saw blade.

The length of 24mm is mostly used for large-size diamond saw blades, and the bit of 40mm length is used for small-diameter saw blades.

Large diameter saw blades are used to cut the last block or larger stone, and smalldiameter saw blades are mostly used to cut large stone slabs.

All sizes of High Quality Diamond Segment for 250mm to 3500mm of single granite cutting saw blade, multi saw blade and so on. We have Segments Type: Layer Type, "K" type, "V" Type, Grooved Type, M Type, Taper Type etc. Cutting granite from over 500 kinds of granite in many coutries.That have the main feature of fast cutting and long lifespan. Saving you more than 50% cost every year!

Advantage:

1.Single saw blade with m shape diamond segment,diamond/steel power raw material.

2.High effective, environmental friendly, easy operation, long lifespan and no edge broken.

3.Hot press,cold press technology, silent core segment to prove high quality cutting result.

Specification:

The following specifications of long life diamond saw blade segment:

Blade Diameter	Blade Thickness	Segment Size (LxWxH)	Blade Hole	Max.RPM
1600mm (64 Inch)	6.5（7.2）mm	24X9.2/8.4x13/15mm	80/110mm	550 RPM

In addition, the speed of the combined saw blade is required to be 280-320 rpm, and the trolley can not be transported too fast!

Other specifications of cutter segment:

diamond tips cutting segments for marble

PS:A certain amount of cooling water should be added when cutting the cutter head, and the spray water flow should be large, so that it has a better cooling effect!

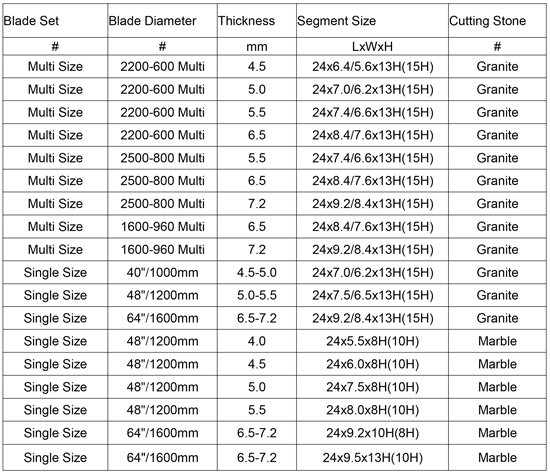

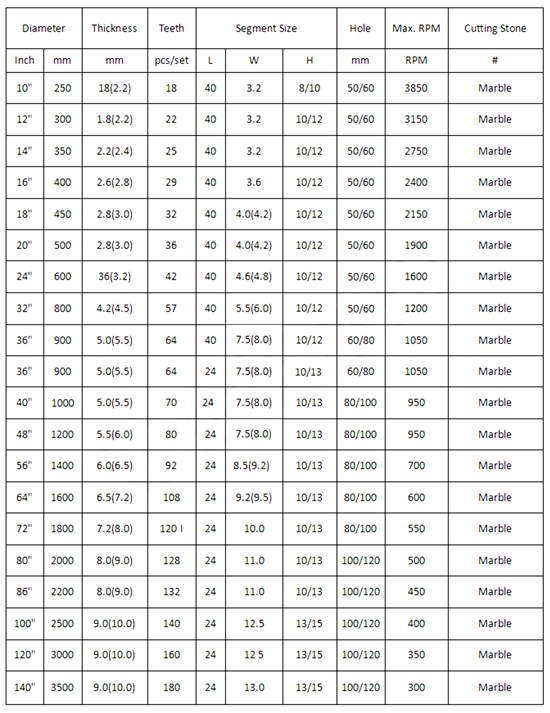

Multi-blade and single-disc saw blade specifications:

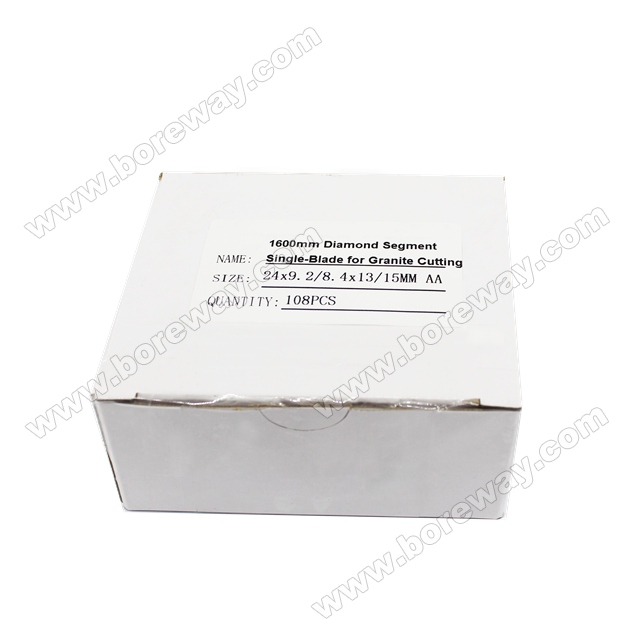

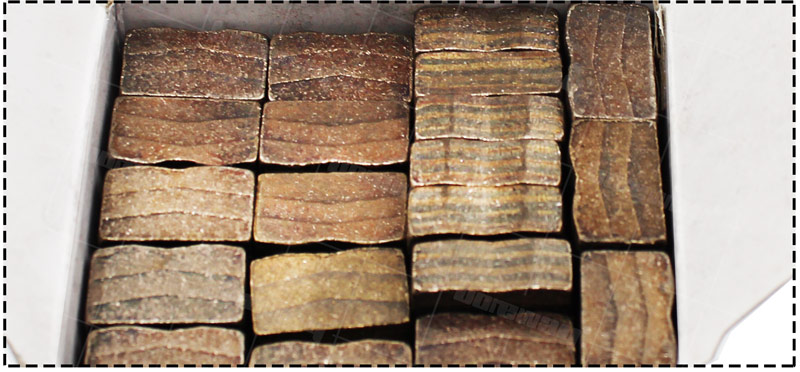

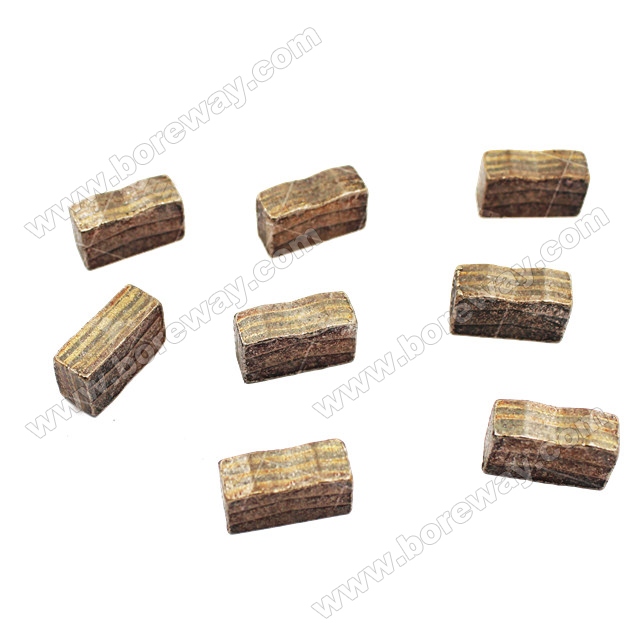

Product Details:

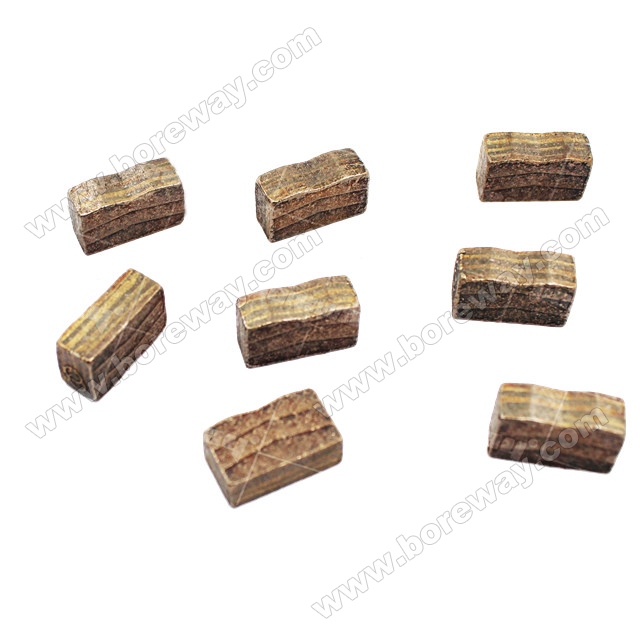

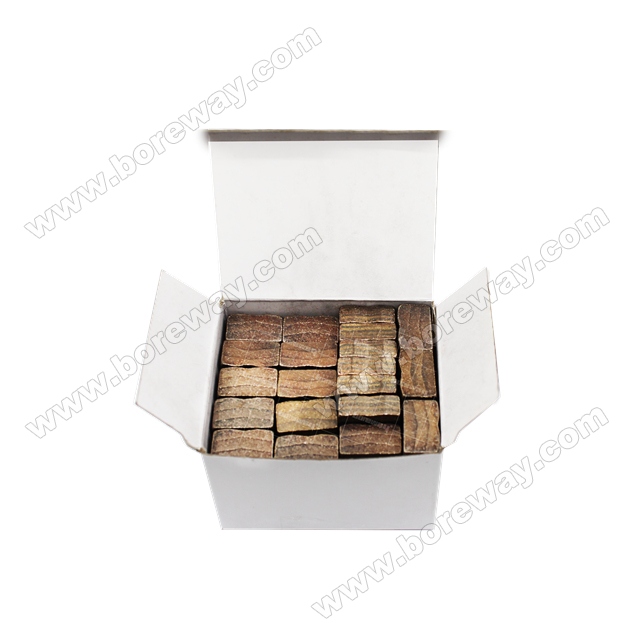

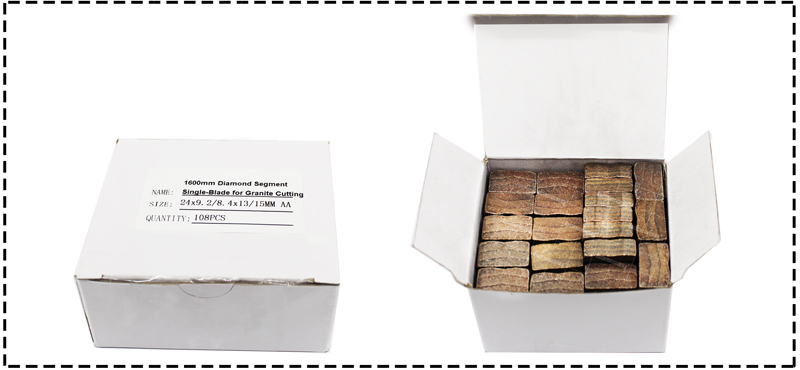

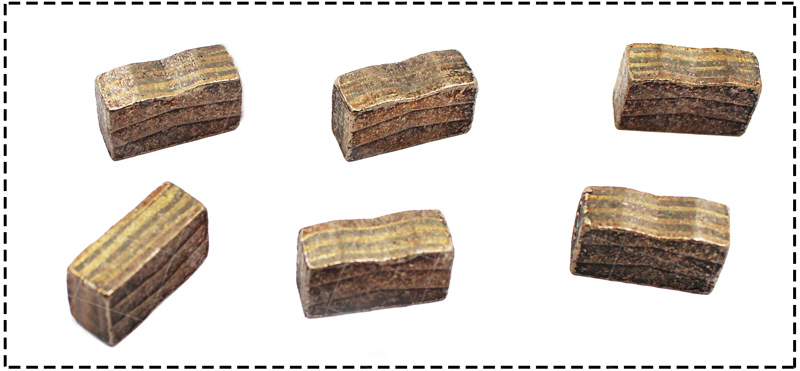

Long Life Diamond Cutting Segment For Single Saw Blade Manufacturer

Long Life Diamond Cutting Segment For Single Saw Blade Manufacturer 88

Long Life Diamond Cutting Segment For Single Saw Blade Manufacturer 99

Application:

M shape diamond segment for granite cutting.

Diamond cutting segment for single saw blade,mulit saw blade.

Diamond segments wet use for bridge cutting machine and single arm machine.

Cutting effect:

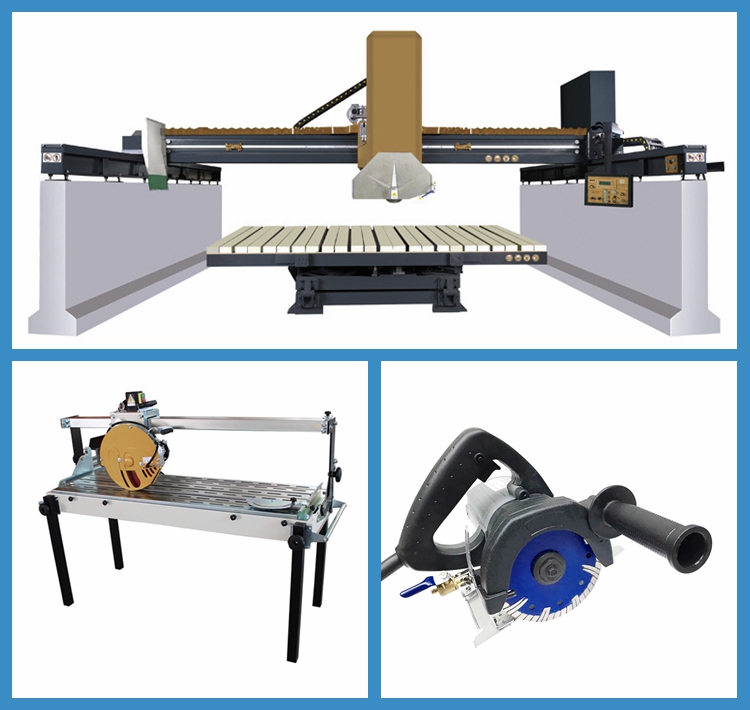

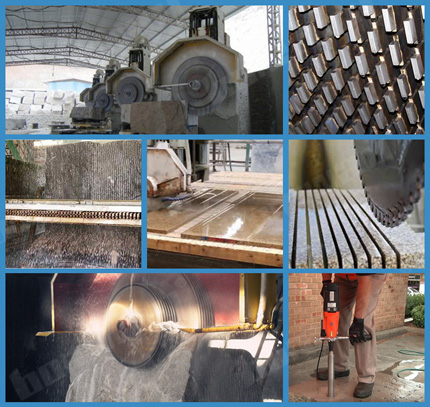

Application machine:

Diamond tips cutting segments for marble suitable for bridge cutting machines, manual handling cutting machines or table cutting machines.

diamond tips cutting segments for marble silver welding by high frequency welding machine.

Saw Blade Segment is wet use

High frequency silver welded machine is recommended instead of welding by fire.

Don’t weld diamond segment for a long time, just a few minutes, otherwise the diamond inside might be damaged because of the high temperature, which will affect the cutting performance of the granite segment greatly.

Relatsd Products:

Multi Blade Diamond Segment	W Shape Edge Cutting Diamond Segment for Granite	1400mm Diamond Cutting Tools Marble Block Diamond Segments

About us:

Our serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?

Please test in a very small order and then you will know the quality. Now, so
Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Plese note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.
