| Product parameters |
| Name: | Wall Cutting Diamond Saw Blades |
| Model Number: | BW-SBW-01 |
| Diameter: | From 450mm to 1200mm |
| Segment Length: | 40mm |
| Segment Heigth: | 12mm |
| Steel Thickness: | With Drop Segment (Low Protection Teeth) |
| Machine: | Hydraulic or electric powered wall saw |
| Usage: | Cut openings in concrete walls |
| Performance: | Highly stable |
| Welding Method: | Laser welded,Silver Welded |
| Cutting result: | Flat surface and even size |  |
Wall Cutting Diamond Saw Blades
A wide spectrum of wall saw blades, matched to different machine systems, drive powers and materials. Highest raw material quality and continuous process improvements guarantee high performance products for every application.

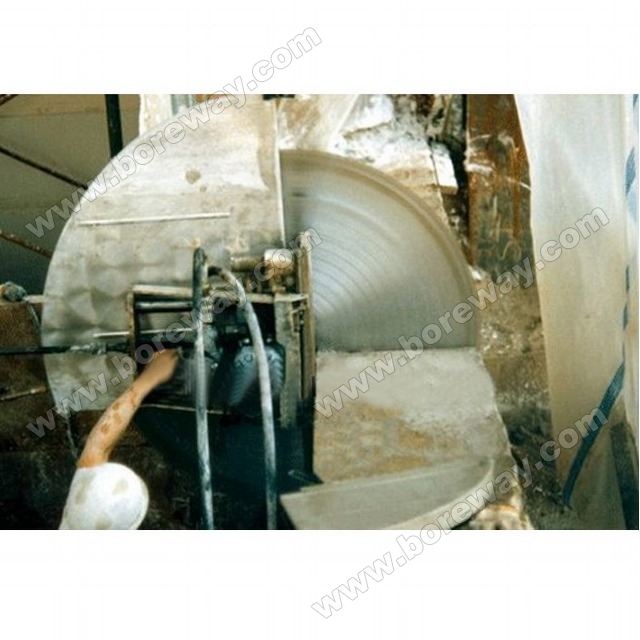

Silver brazed/laser welded blades used to cut openings in concrete walls for the replacement of doors, windows, duets and for removing walls and floors for expansion or demolition, fast cutting less fatigue smooth operation and long life. Various bore sizes, bond types are available upon wall saw type, RPM, power, materials.
Suitable for Hydraulic or electric powered wall saw.
| Code No. | Diameter | Segment Size (L x W x H mm) |
Bore | Steel Thickness | Welding Method |
| BW-SBW-01-01 | 450mm(18") | 40x4.6x12mm | 25.4mm 35mm 60mm | 3.5mm | Silver Weldedor Laser Welded |
| BW-SBW-01-02 | 500mm(20") | 40x4.6x12mm | |||
| BW-SBW-01-03 | 600mm(24") | 40x4.6x12mm | |||
| BW-SBW-01-04 | 650mm(26") | 40x4.6x12mm | |||
| BW-SBW-01-05 | 700mm(28") | 40x4.6x12mm | |||
| BW-SBW-01-06 | 750mm(30") | 40x4.6x12mm | |||
| BW-SBW-01-07 | 800mm(32") | 40x4.6x12mm | |||
| BW-SBW-01-08 | 900mm(36") | 40x4.6x12mm | Silver Welded | ||
| BW-SBW-01-09 | 1000mm(40") | 40x4.6x12mm | |||
| BW-SBW-01-10 | 1050mm(42") | 40x4.6x12mm | |||
| BW-SBW-01-11 | 1100mm(44") | 40x4.6x12mm | |||
| BW-SBW-01-12 | 1200mm(48") | 40x4.6x12mm |
Kindly Noted：
When place order for Wall Cutting Diamond Saw Blades please inform the following if possible:
Saw Blade Code No.
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Installation hole (If, Need Customer's Drawing)
Silent or None Silent Saw Blade Please indicate
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if possible please inform Steel Core Thickness)
Use of saw blade (For Marble, Limestone or other material)
Quantity NO. (How many pcs blades your would like to order)
Machine Powder/RPM (If possible)
Expected Shipping Date
Special Requirements (If)

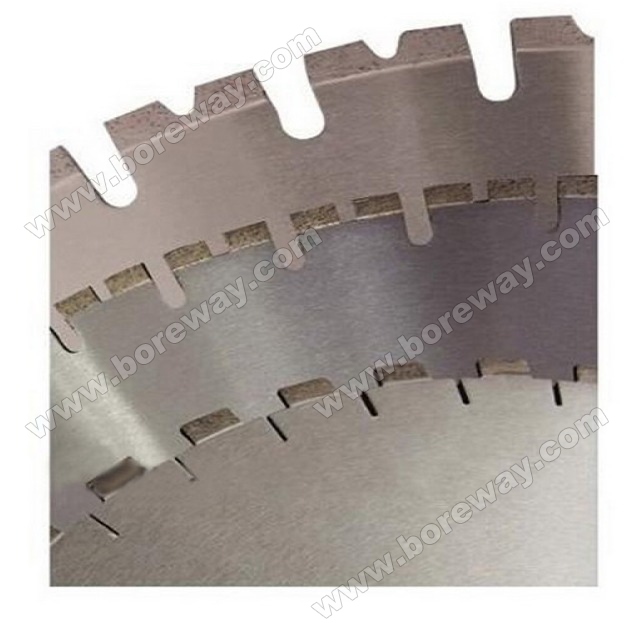

Different Segments design:

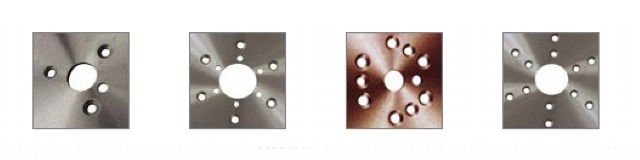

Different installation holes:
Please use the following before operating the cutting:
