V40 CNC vacuum brazed stone router bit

Add / Delete to Basket

Product parameters

Name:	V40 CNC vacuum brazed stone router bit
Model Number:	BW-RB-M0302(V40)
Diameter	50-125mm
Stone shape	V shape
Spindle	35mm
Thickness	40mm
Grit No	0# & 2#
Machine	CNC machine
Advantage	High efficiency and long lifespan

Product Description

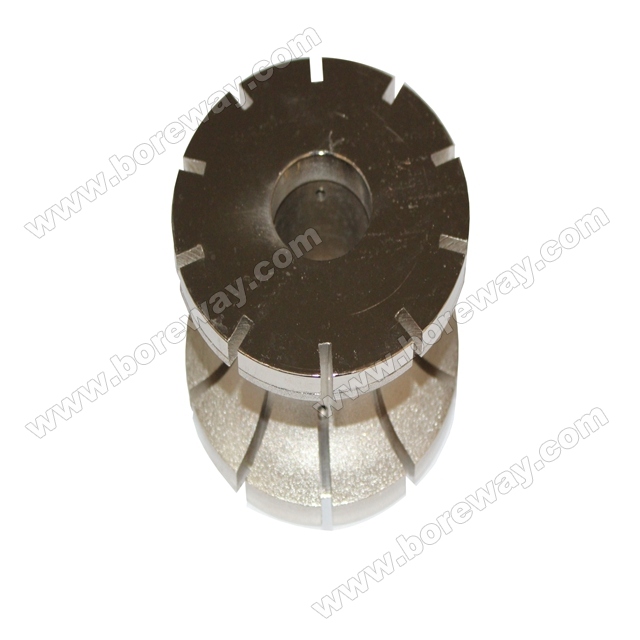

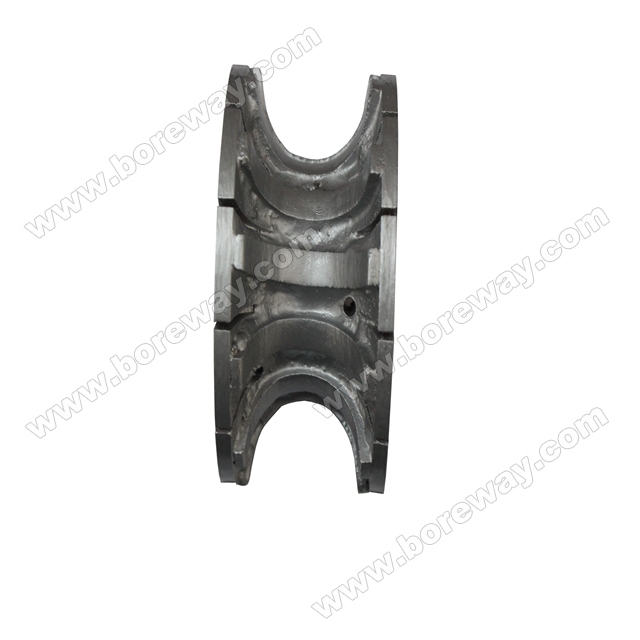

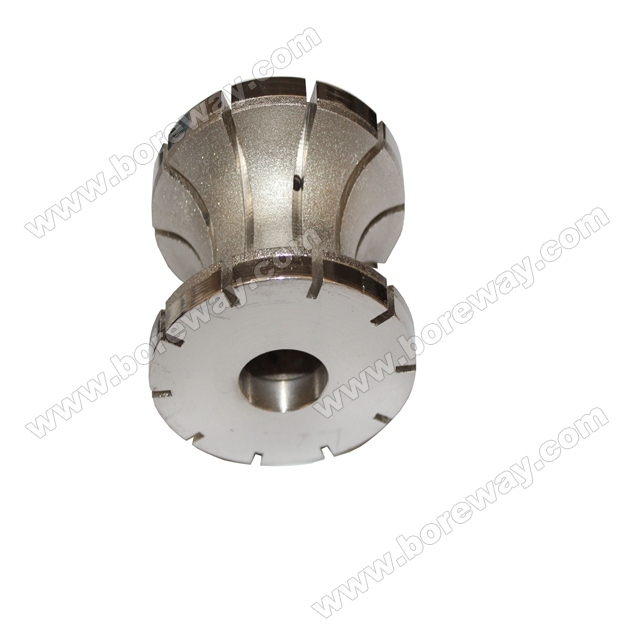

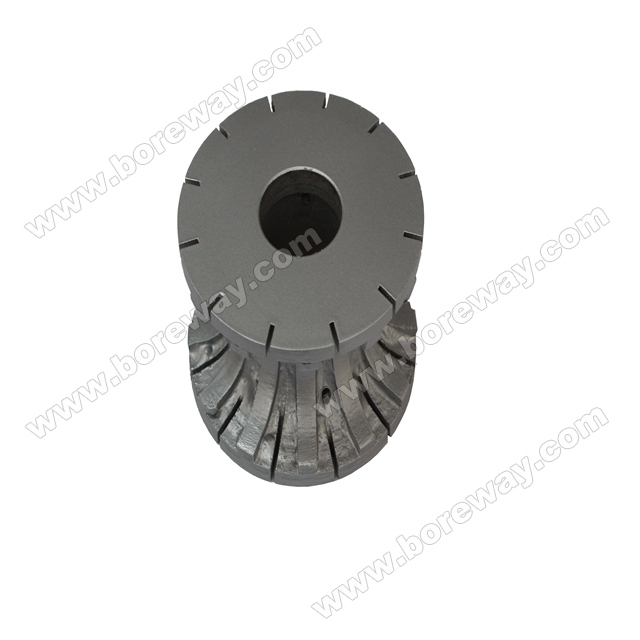

V40 CNC vacuum brazed stone router bit

V40 CNC vacuum brazed stone router bits are used for CNC machine,automatic processing the

granite,marble,other stones and the counter.Their merits are high efficiency of production,exact figure.

Using sequence: from rough grit to fine, finally polishing.

The following are different shapes design ,

including : A, B, D, E, F, G, H, I, L, M, N, O, P, Q, S, T, U, V, WF, DD, DC

V40 CNC vacuum brazed stone router bit

The follow are the normal specification of the stone router bit:

Diameter	Stone shape	Spindle	Thickness	Grit No	Series
50-125mm	A,B,D,E,F,G, H,I,L,M,N,O, P,Q,S,T,U,V, WF,DD,DC	M8,M10,M14, 1/2G",5/8-11" 22mm,35mm	20mm,30mm, 40mm,50mm	50#,100#,200#, 400#,800#, 1500#,3000#	0#,1#,2#,3# ,4#,5#,6#7# or 1#,2#,3#,4# ,5#,6#,7#,8#

The above specifications is only for reference.

Other or special specification may be available as customers' demand.

V40= V Shape with 40mm thickness

It including different types, segmented type and continuous rim type.

When order CNC stone router bit please Confirm.

Code No. of CNC stone router bit ( BW-RB-M0302(V40))
Type(?)

Size(?)

Grit(?)

Connection(?)

Quantity(?)(You can order single piece or more ,also can order sets.)
