Product parameters |

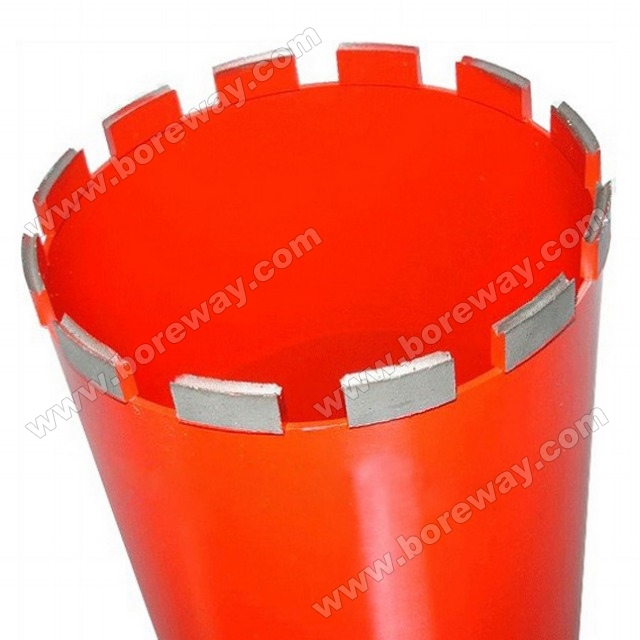

Diamond Drill Bits for Concrete - Wet Use - V Top Sandwich Segmented
V Top Sandwich segmented diamond drill bits designed for maximum cutting capacity, fast drilling speed with long life, professional for cured reinforced concrete.
Drilling Speed is the key in total drilling cost, V Top Sandwich segmented diamond drill bits with high technology from USA offers you maximum drilling speed.
Machinery: Hydraulic power drilling machines, Electric hand-held drillers.
Welding Type: Silver welding.
Wet Use only.
The following are the normal Specifications we are selling:
Code No.
Diameter
Segment Size
Segment No.
BW-DDB-C02-05
V Top Sandwich Segmented2.25"(57mm)
24x3.5x14
5
2.50"(63mm)
24x3.5x14
6
2.75"(70mm)
24x3.5x14
7
3"(76mm)
24x3.5x14
8
3.25"(82mm)
24x3.5x14
9
3.50"(89mm)
24x3.5x14
10
4"(102mm)
24x3.5x14
10
4.25"(108mm)
24x3.5x14
11
4.50"(114mm)
24x3.5x14
11
4.75"(120mm)
24x4.0x14
11
5"(127mm)
24x4.0x14
11
5.5"(140mm)
24x4.0x14
12
5.75"(146mm)
24x4.0x14
13
6"(152mm)
24x4.0x14
13
6.25"(159mm)
24x4.0x14
14
6.5"(165mm)
24x4.0x14
15
7"(178mm)
24x4.0x14
16
8"(203mm)
24x4.5x14
18
9"(229mm)
24x4.5x14
20
10"(254mm)
24x4.5x14
23
11"(280mm)
24x5.0x14
25
12"(305mm)
24x5.0x14
27
13"(330mm)
24x5.5x14
30
14"(356mm)
24x5.5x14
32
The above specification is only for Reference, other or special specification can be ordered by customers. Kindly Noted: When place order for Diamond Core Drilling Bits please inform: Code No. of Diamond Core Drill Bits Drill Bit Length
Diameter (Inch or mm)
Segment Height & Width
Material Driling: For Granite, or marble, or other material?
Order Quantity & Expected Shipping Date
Special Requirements (If)
