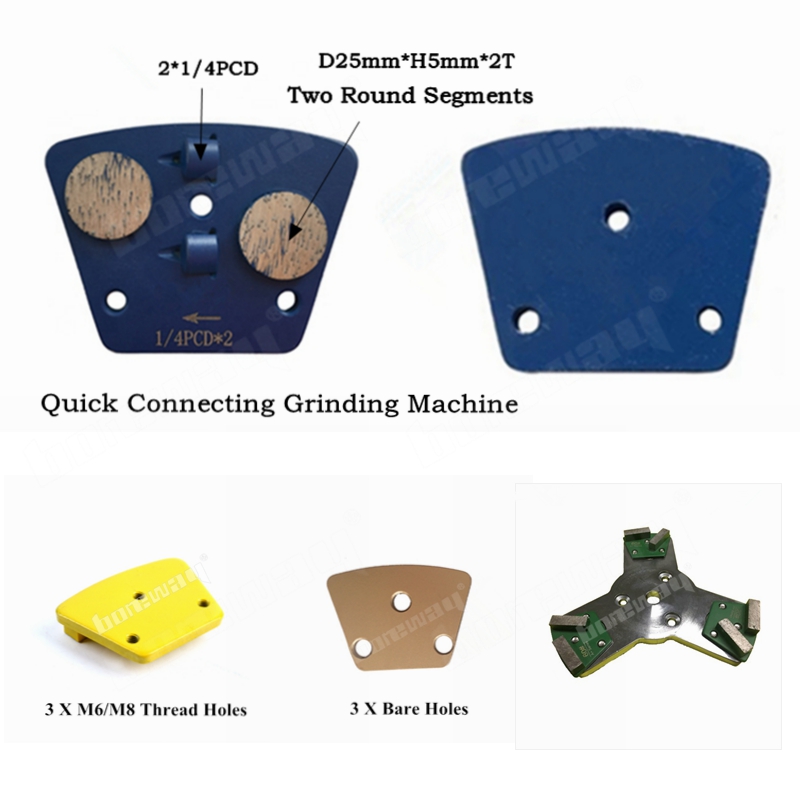

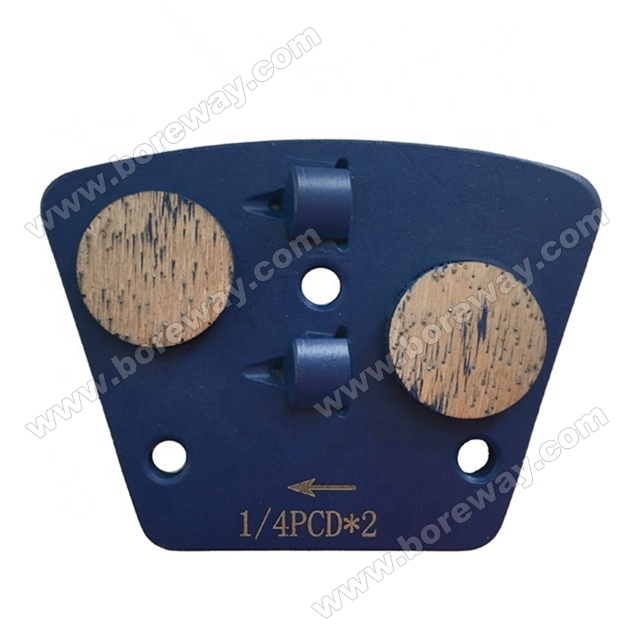

Two Round Segments PCD Trapezoid Concrete Grinding Shoes For Epoxy Remova

Add / Delete to Basket

Product parameters

Name:	Two Round Segments PCD Trapezoid Concrete Grinding Shoes For Epoxy Remova
Model Number:	BW-TR-PCD2-MET-R02
Type:	Grinding Shoes
Segment Grit:	16-270#,etc
Segment Size:	1/4 PCD2T＋D25mmH5mm*2T
Size:	Two Quarter PCD And Two Round
Material:	PCD+Diamond+ Metal Blank
Connection:	3 X M6 or M8 or Bare Holes
Machine:	Quick Connecting Grinding Machine

Product Description

Descriptions:

Two Round Segments PCD Trapezoid Concrete Grinding Shoes For Epoxy Remova

PCD Trapezoid Concrete Grinding Shoes Used for removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor.

PCD Trapezoid Concrete Grinding Shoes. Used on Universal floor grinding machine. Desighned for concrete floor restoration, epoxy, glue and any other concrete floor coating removal

Specifications:

The following are normal specifications Two Round Segments PCD Trapezoid Concrete Grinding Shoes For Epoxy Remova:

Type:	Abrasive Shoes
Size:	Two Quarter PCD And Two Round
Segment Grit:	16-270#,etc
Segment Size:	1/4 PCD2T＋D25mmH5mm*2T
Material:	PCD+Diamond+ Metal Blank
Connection:	3 X M6 or M8 or Bare Holes
Application:	Concrete and Terrazzo Floor
Machine:	Quick Connecting Grinding Machine
Grit Hardness:	Soft Bond, Medium Bond, Hard Bond.

Specially designed tools are available for any standard apllication. We can

customize tools as per your exact needs.

Advantages:

1. The high diamond concentration provides for a faster grinding rate while the high quality of the diamonds provides longer grinding life.

2. Grinding segments with heat treated steel bodies which provide increases durability and grinding life.

3. Venting holes for fast, dry or wet grinding with long life.

Features:

Excellent wear resistance, lower cost, better surface finish etc.

Applications:

PCD Trapezoid Concrete Grinding Shoes. Suitable for general (concrete,stone) grinding use while mostly they are used for paint, glue, epoxy removal and floor coating, high quality and high efficiency, long lifespan.

Color:

Choosing between soft, medium, and hard bonds.

1.Soft Bond (Yellow) – The metallic powder in the sintered segment wears away quickly releasing dull diamond crystals exposing new abrasive crystals to cut efficiently. Best used on hard surfaces.

2.Medium Bond (Red) – A metal bond strength right between that of soft and hard bonds.

3.Hard Bond (Black) – The bond of the metallic powder in the segment wears away slowly and prevents premature wear against soft, abrasive surfaces.

Grinding Effect:

PCD Trapezoid Concrete Grinding Shoes Grinding Effect:
