| Product parameters |
| Name: | Turbo Segmented Diamond core drill bits for Concrete |
| Model Number: | BW-DDB-C02-04 |
| Diameter: | From 32mm to 356mm |
| Segment Width: | From 3.0mm to 5.5mm |
| Segment Height: | 10mm |
| Drilling Type: | Wet use |
| Welding Type: | Silver or Laser welding |
| Use: | Smooth drilling and avoid segments loosing. |
| Machine: | Hydraulic drilling machines, electric hand-held drillers. |
| Industry: | Diamond tools |
| Application: | Cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material. |
| Drilling result: | Flat surface and even size |
| Performance: | Hightly stable |  |

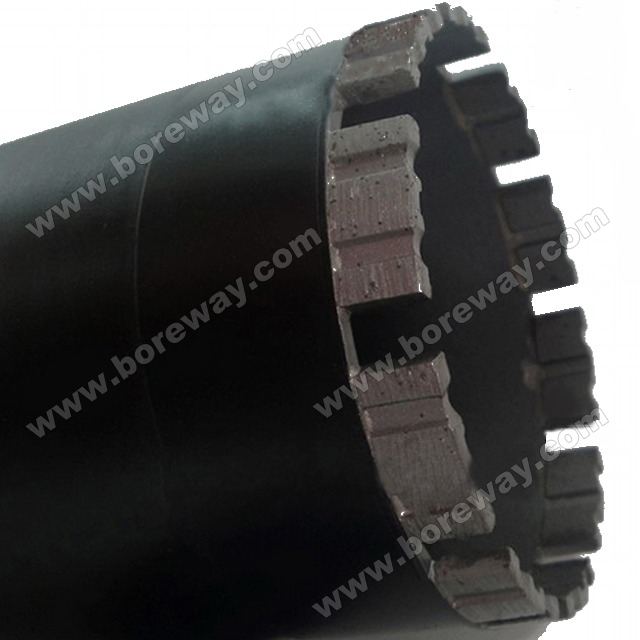

Diamond Drill Bits for Concrete - Wet Use - Turbo Segmented
Turbo Segmented Diamond core drill bits diameter 32mm-356mm provide smooth and fast drilling.
Applications: Cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material.
Machinery: Hydraulic power drilling machines, Electric hand-held drills.
Welding Type: Silver or Laser welding.
Wet Use.
Under same bond conditions, the drilling speed of this type drill bits is much faster than normal segmented drill bits, and all time the drilling speed is same.
The following are the normal Specifications we are selling:
Code No.
Diameter
Segment Size
Segment No.
BW-DS-DB-C04 Turbo Shape
1.25"(32mm)
16x3.0x10
4
1.38"(35mm)
16x3.0x10
4
1.50"(38mm)
16x3.0x10
5
1.63"(42mm)
16x3.0x10
5
1.75"(45mm)
16x3.0x10
6
1.88"(48mm)
16x3.0x10
6
2"(52mm)
16x3.0x10
7
2.25"(57mm)
24x3.5x10
5
2.50"(63mm)
24x3.5x10
6
2.75"(70mm)
24x3.5x10
7
3"(76mm)
24x3.5x10
8
3.25"(82mm)
24x3.5x10
9
3.50"(89mm)
24x3.5x10
10
4"(102mm)
24x3.5x10
10
4.25"(108mm)
24x3.5x10
11
4.50"(114mm)
24x3.5x10
11
4.75"(120mm)
24x4.0x10
11
5"(127mm)
24x4.0x10
11
5.5"(140mm)
24x4.0x10
12
5.75"(146mm)
24x4.0x10
13
6"(152mm)
24x4.0x10
13
6.25"(159mm)
24x4.0x10
14
6.5"(165mm)
24x4.0x10
15
7"(178mm)
24x4.0x10
16
8"(203mm)
24x4.5x10
18
9"(229mm)
24x4.5x10
20
10"(254mm)
24x4.5x10
23
11"(280mm)
24x5.0x10
25
12"(305mm)
24x5.0x10
27
13"(330mm)
24x5.5x10
30
14"(356mm)
24x5.5x10
32
The above specification is only for Reference, other or special specification can be ordered by customers.
Kindly Noted：
When place order for Diamond Core Drilling Bits please inform:
Code No. of Diamond Core Drill Bits
Diameter (Inch or mm)
Drill Bit Length
Segment Height & Width
Material Driling: For Granite, or marble, or other material?
Order Quantity & Expected Shipping Date
Special Requirements (If)
