| Product parameters |
| Name: | Normal Segmented Diamond Tuck Point Blade |
| Model Number: | BW-DTPB-01 |
| Diameter: | From 105mm to 230mm |
| Type: | Dry or Wet Use |
| Segment Height: | 7mm,10mm |
| Segment Width: | 6.35mm |
| Usage: | Repairing grout, cleaning and routing cement mortar joints between bricks |
| Machine: | Angle grinder, Tuck pointer |
| Steel Blank Type: | Normal or Silent |
| Cutting result: | Flat surface and even size |
| Processing Method: | Hot Sintered or Laser Welded |  |

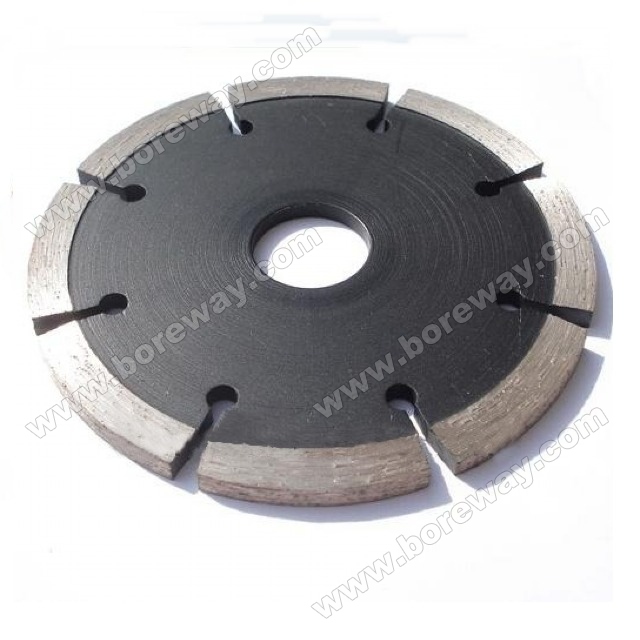

Diamond Tuck Point Blade - Normal Segmented
Normal Segmented Diamond Tuck Point Blade used for crack repair by decorative and restoration contractors, and allows you to prep stone, granite, marble, concrete, brick, block and pavers for new joints and brick cleaning.
Standard segment width is 6.35mm, and standard segment height is 7mm.
Hot Sintered or Laser Welded, Dry or Wet Use!
The following are the normal Specifications we are selling:
| Code No. |
Diameter |
Segment Width (mm) |
Segment Height (mm) |
Bore (mm) |
| BW-DTPB-01-01 |
105mm(4") |
6.35mm(0.250") |
7/10 |
15.88mm(5/8") 20mm 22.23MM(7/8") |
| BW-DTPB-01-02 |
115mm(4.5") |
7/10 |
||
| BW-DTPB-01-03 |
125mm(5") |
7/10 |
||
| BW-DTPB-01-04 | 150mm(6") | 7/10 | ||
| BW-DTPB-01-05 |
180mm(7") |
7/10 |
||
| BW-DTPB-01-06 |
200mm(8") |
7/10 | ||
| BW-DTPB-01-07 |
230mm(9") |
7/10 |
The Above Products are not available from Store, the production needs about 15 days on receipt of Order Confirmation.
Kindly Noted ：
When place order for Tuck Point Saw Blade please inform:
Code No. of Tuck Point Saw Blade:
Diameter (Inch or mm)
Inner Hole / Bore Size (Inch or mm)
Segment Width & Height
Material Cutting: What type Granite, Sandstone, or other hard Stone?
Machine Powder/RPM (If possible)
Order Quantity & Expected Shipping Date
Special Requirements (If)
Please use the following before operating the cutting:
