Metal Diamond Grinding Disk Strong Magnetic Grinding Disc Of Concrete Floor Grinder Pad

Product parameters
Name: Metal Diamond Grinding Disk Strong Magnetic Grinding Disc Of Concrete Floor Grinder Pad
Model Number: BW-TR-MET-B02
Origin: China
Brand Name: BOREWAY
Type: Abrasive Block
Material: Diamond + Metal powder
Diameter: 40*10*10(mm)*2T
Grit: 16#,24#,36#,46#,60#,80#,120#,180#,230#,270#
Hole: Threaded hole M6, Threaded hole M8, Bare hole M9
Application: For grinding Concrete and Terrazzo Floor
Usage : Multi-functional flooring grinding machine

Product Description

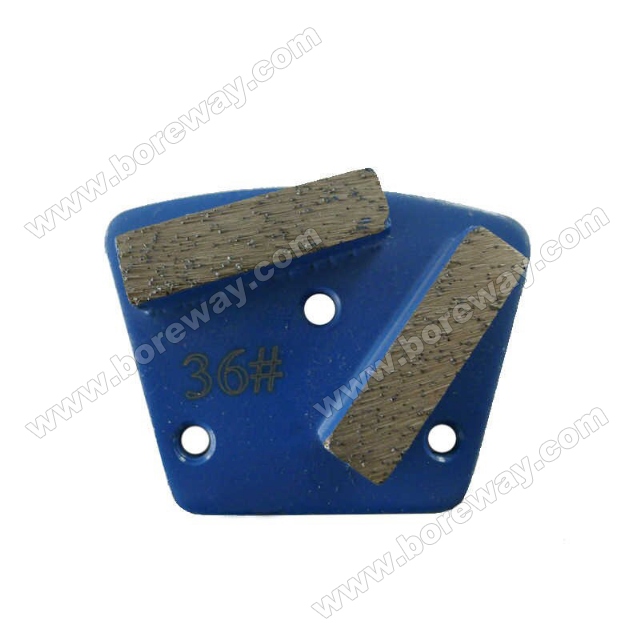

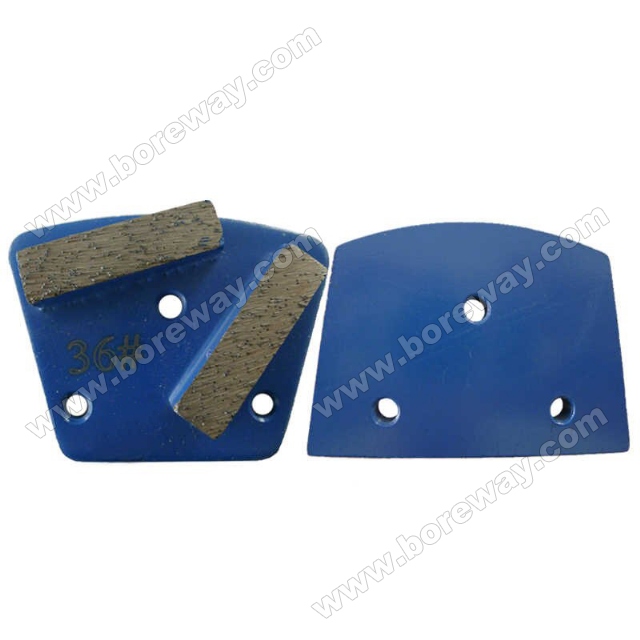

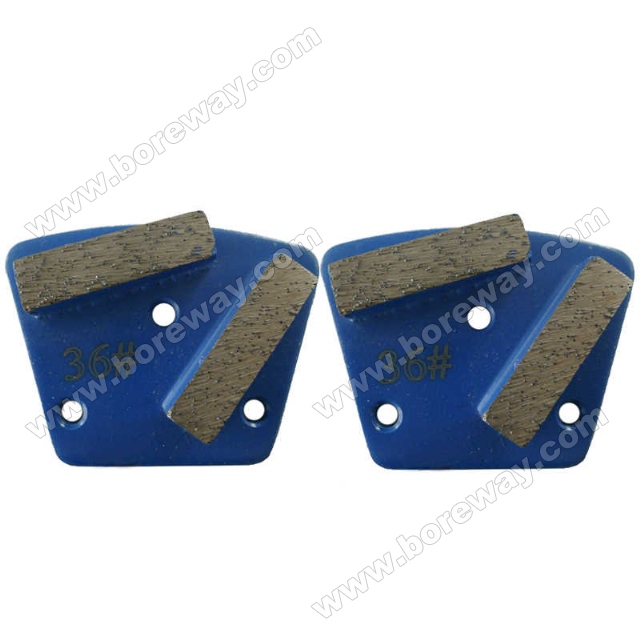

Metal Diamond Grinding Disc Strong Magnetic Grinding Disc Of Concrete Floor Grinder Pad

 Descriptions:

Metal Diamond Grinding Disc. Diamond concrete grinding plates are the best solution for large areas of thin coating removal, leveling and smoothing high spots in concrete, and work very well for concrete cleaning. Their segments are designed for aggressive grinding of concrete to make short work of your larger projects. These high quality diamond grinding tools are also ideal for the initial steps in concrete polishing procedures.
Metal Diamond Grinding Disc.  Metal bond diamonds have high strength, excellent wear resistance, and a low friction coefficient. Metal bond diamonds high grinding efficiency and low grinding force generates less heat in the grinding process.

Specifications:

The following are normal specifications
Metal Diamond Grinding Disc:

 Type:  Abrasive Shoes
 Size:

Two Bar Segments

Segment Grit:
Coarse, Medium, Fine(16#, 24# ,  36# ,  46# ,  60# ,   80# , 120# , 180# ,  230# ,  270# etc)
Segment Size:

  40*10*10mm*1T

 Material:   Diamond And Metal Powder
 Connection:  3 X M6 or M8 or Bare Holes
 Application:  Concrete and Terrazzo Floor
 Machine:  Quick Connecting Grinding Machine

Grit Hardness:

 Very Soft Bond, Soft Bond, Medium Bond, Hard Bond, Very Hard Bond, Extreme Hard Bond

Specially designed tools are available for any standard apllication. We can
customize tools as per your exact needs.

Advantages:

Metal Diamond Grinding Disc:

1) High quality for long life;

2) Remove thin coating materials with ease;

3) Designed to work aggressively;

4) Smooth and level high spots.


Features:

Metal Diamond Grinding Disc:
1) Segment size: 40x10x10mm, 40x12x12mm etc.;
2) Segment Shapes: Rectangle;
3) Grit: Coarse, Medium, Fine(6#,16#, 20#, 30#, 60#, 80#,150#, 220# etc);
4) Bond: Super Soft, Soft, Medium Hard, Hard, Super Hard.

Applications:

Trapezoid Diamond Grinding ToolSuitable for general (concrete,stone) grinding use while mostly they are used for paint, glue, epoxy removal and floor coating, high quality and high efficiency, long lifespan.


Note: special logo, segment size and shapes, installation are available by customer's request.
Connection Holes:

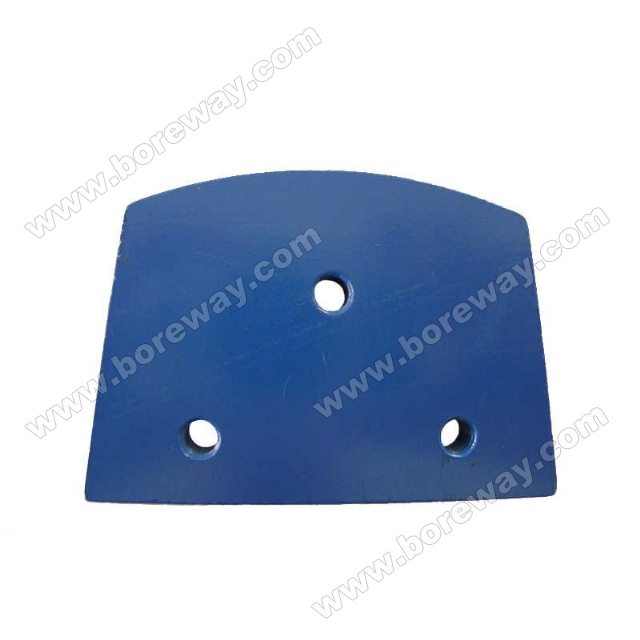

1. Metal Blank with Three M6 Thread Holes

2. Metal Blank with Three M8 Thread Holes

3. Metal Blank with Three Bare Holes

Grinding Effect:

Three Round Segments Trapezoid Diamond Grinding Tools For Concrete And Terrazzo Floor Grinding Effect:


Similar Products:



 Company Information
FUJIAN NAN'AN BOREWAY MACHINERY Co.,LTD is the export company. We are professional factory making and supplying different types of diamond tools for concrete and stone. Our main products are including concrete grinding tools, diamond polishing pad, diamond core drill bits, cup grinding wheel, diamond blade, diamond router bits and drum wheels etc. Along with our high quality and good service, BOREWAY is gaining more popularity in international business. We sincerely welcome your inquiry and establish long term cooperation with us. Thank you.
