Intelligent Hydraulic Press Machine

Product parameters
Name: Intelligent Hydraulic Press Machine
Model Number: BWM-HP40
Usage diamond segments pressing
Advantage automatic operation

Product Description

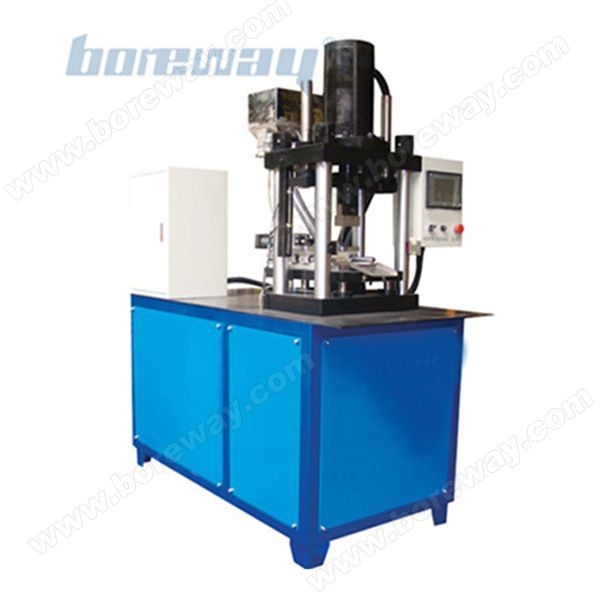

Intelligent hydraulic press machine

The machine specializes in pressing gang saw segment.(It can finish six pieces at the same time ,of course different segment needs to be matched corresponding mould.)

It uses positive displacement and designs automatic feeding.

The operation system uses touch screen ,intuitive and understandable and easily operation .

Also , The machine can finish four pieces per stroke .

Working pressure is controlled by pressure switch.

Denomination:
Gross power 5.5 kw
Voltage 380 V
Working current 11.5 A
Control system voltage 24 V
Pressure control range 0 - 40 Ton
Oil tank volume 230 L
Pressure range Min weight 0.5g( Including diamond powder )
Min weight 0.4g( Not including powder )
Max weight 30g( Following with mould )
Control system Industry PLC and touch screen
Volume of machine 760mm * 1600mm * 1930mm ( L*W*H )
Weight 1300kg
Error range ±0.02g/Pcs
Production quantity 900 times/h
