High Quality Diamond Core Drill Bit Segments for Heavily Reinforced Concrete

Add / Delete to Basket

Product parameters

Name:	High Quality Diamond Core Drill Bit Segments for Heavily Reinforced Concrete
Model Number:	BW-DS-DB-C07
Port	Xiamen
Trademark	Boreway
Service	OEM & ODM
Type	Wet or dry use
Advantage	High Efficiency
Tooth profile	Sector tooth, Wavy tooth
Welding Type	Silver Welded or Laser Welded
Keywords	Diamond Segment for Drilling Concrete

Product Description

High Quality Diamond Core Drill Bit Segments for Heavily Reinforced Concrete

Descriptions:

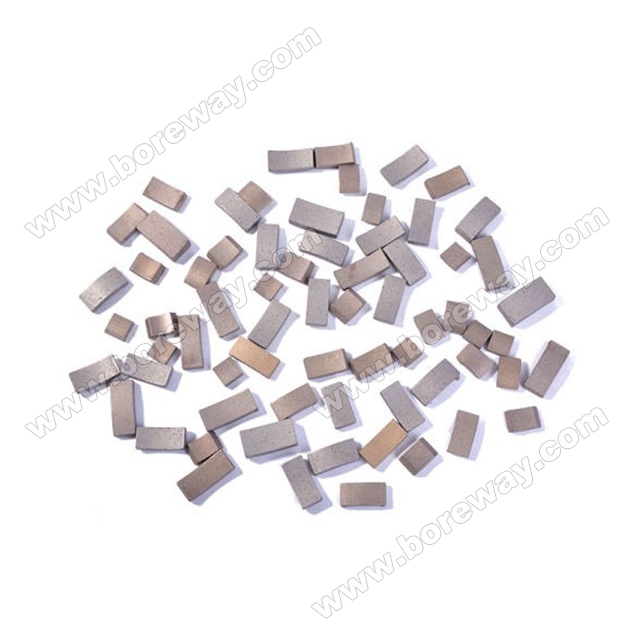

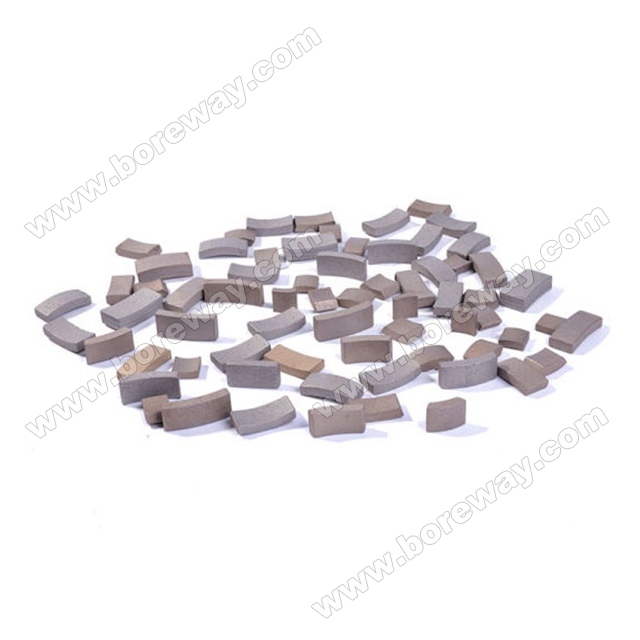

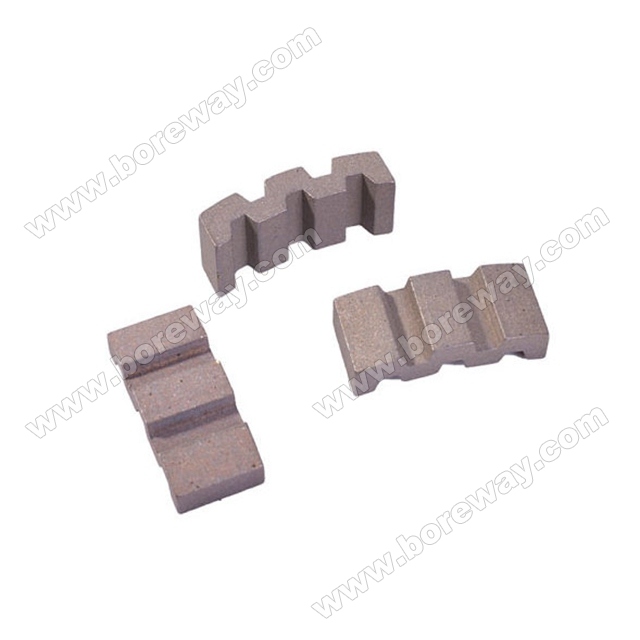

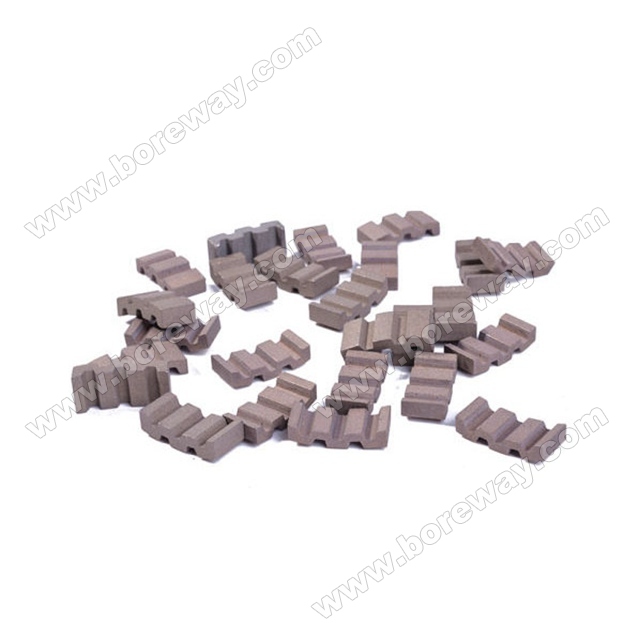

High Quality Diamond Core Drill Bit Segments for Heavily Reinforced Concrete, Diamond segments Turbo shape of drill bits diameter 32mm-356mm provide smooth and fast drilling for kinds of concrete.

Wet or Dry(32mm-152mm) Use.

Under same bond conditions, the drilling speed of this type segments is much faster than normal flat segments, and all time the drilling speed is same.

Specifications:

The following are the normal Specifications we are selling:

Code No.	Diameter	Segment Size	Segment No.
BW-DS-DB-C04-01	1.25"(32mm)	16x3.0x10	4
BW-DS-DB-C04-02	1.38"(35mm)	16x3.0x10	4
BW-DS-DB-C04-03	1.50"(38mm)	16x3.0x10	5
BW-DS-DB-C04-04	1.63"(42mm)	16x3.0x10	5
BW-DS-DB-C04-05	1.75"(45mm)	16x3.0x10	6
BW-DS-DB-C04-06	1.88"(48mm)	16x3.0x10	6
BWDS-DB-C04-07	2"(52mm)	16x3.0x10	7
BW-DS-DB-C04-08	2.25"(57mm)	24x3.5x10	5
BW-DS-DB-C04-09	2.50"(63mm)	24x3.5x10	6
BW-DS-DB-C04-10	2.75"(70mm)	24x3.5x10	7
BW-DS-DB-C04-11	3"(76mm)	24x3.5x10	8
BW-DS-DB-C04-12	3.25"(82mm)	24x3.5x10	9
BW-DS-DB-C04-13	3.50"(89mm)	24x3.5x10	10
BW-DS-DB-C04-14	4"(102mm)	24x3.5x10	10
BW-DS-DB-C04-15	4.25"(108mm)	24x3.5x10	11
BW-DS-DB-C04-16	4.50"(114mm)	24x3.5x10	11
BW-DS-DB-C04-17	4.75"(120mm)	24x4.0x10	11
BW-DS-DB-C04-18	5"(127mm)	24x4.0x10	11
BW-DS-DB-C04-19	5.5"(140mm)	24x4.0x10	12
BW-DS-DB-C04-20	5.75"(146mm)	24x4.0x10	13
BW-DS-DB-C04-21	6"(152mm)	24x4.0x10	13
BW-DS-DB-C04-22	6.25"(159mm)	24x4.0x10	14
BW-DS-DB-C04-23	6.5"(165mm)	24x4.0x10	15
BW-DS-DB-C04-24	7"(178mm)	24x4.0x10	16
BW-DS-DB-C04-25	8"(203mm)	24x4.5x10	18
BW-DS-DB-C04-26	9"(229mm)	24x4.5x10	20
BW-DS-DB-C04-27	10"(254mm)	24x4.5x10	23
BW-DS-DB-C04-28	11"(280mm)	24x5.0x10	25
BW-DS-DB-C04-29	12"(305mm)	24x5.0x10	27
BW-DS-DB-C04-30	13"(330mm)	24x5.5x10	30
BW-DS-DB-C04-31	14"(356mm)	24x5.5x10	32

The above specification & photos is only for Reference, other specification or design can be ordered by customers.

Except that High Quality Diamond Core Drill Bit Segments for Heavily Reinforced Concrete, All of our products have been strictly tested before access to market.

Our Services:

1.Tracking the delivery info, rapid delivery process.

2.Offer good after-sales services and Technical support.

3.product size ,material ,quality according to customized.

FAQ:

Q1:Are you a manufacture or trading company?

A:We are manufacture

Q2:Where is your factory located?How can I visit you?

A:Our factory located in Quanzhou City,Fujian Province,China.You can fly to Xiamen International Air Port or Jinjiang Air Port,and we will pick you up.Welcome you to visit Our factory.

Q3:How is your Quality?

A:We have a very seriously control system(The engineer will check the quality everytime ).We guarantee the good performance of our products.
