High Fast Cutting Speed Diamond Saw Blade Granite Segment

Add / Delete to Basket

Product parameters

Name:	High Fast Cutting Speed Diamond Saw Blade Granite Segment
Model Number:	BW-DSGB-9-13
Use	Wet Use
Blade Diameter	1600mm,64 Inch
Material	Diamond Powder
Segment Type	Sandwich,M Shape
Segment Size	24x9.2/8.4x13/15mm
Effect	Straight Cutting,Uniform Cutting Size
Application	For Cutting Granite,Other Hard Stone
Machine	Wet Used For Single Arm Machine,Bridge Cutting Machine

Product Description

High Fast Cutting Speed Diamond Saw Blade Granite Segment

Description:

Max.RPM:550 RPM

Blade Hole：:80/100mm

Blade Diameter: 1600mm

Blade Thickness: 6.5(7.2)mm

Segment Size:24X9.2/8.4x13/15mm

High fast cutting speed diamond segment for single and multi blade applications.We can produce according to your exact specifications and dimensions.

Cost-effective and long lifespan,welds easily.good sharpness. save the stone.Stable Performance: in the outer and inner layers are carefully designed to ensure cutting stability. Advanced production process for sintering.Strict product quality inspection processes.

Advantage:

1. Competitive price and stable quality,Strict quality control.

2. Fast st cutting, no chipping, easy opening, long life.

3. Our products last long life and give a sharp cut.

Specification:

The following specifications of high fast cutting speed diamond segment:

Blade Diameter	Blade Thickness	Segment Size (LxWxH)	Blade Hole	Max.RPM
1600mm (64 Inch)	6.5（7.2）mm	24X9.2/8.4x13/15mm	80/110mm	550 RPM

In addition, the speed of the combined saw blade is required to be 280-320 rpm, and the trolley can not be transported too fast!

Other specifications of cutter segment:

diamond tips cutting segments for marble

PS:A certain amount of cooling water should be added when cutting the cutter head, and the spray water flow should be large, so that it has a better cooling effect!

Multi-blade and single-disc saw blade specifications:

Product Details:

High Fast Cutting Speed Diamond Saw Blade Granite Segment

High Fast Cutting Speed Diamond Saw Blade Granite Segment 99

Application:

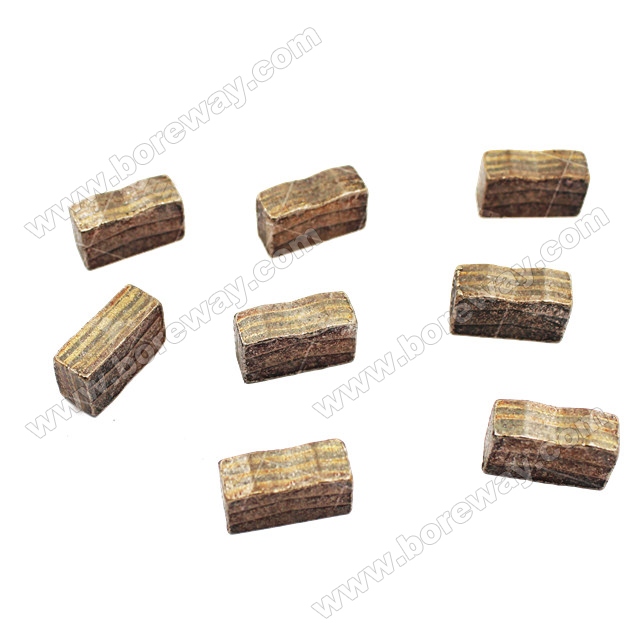

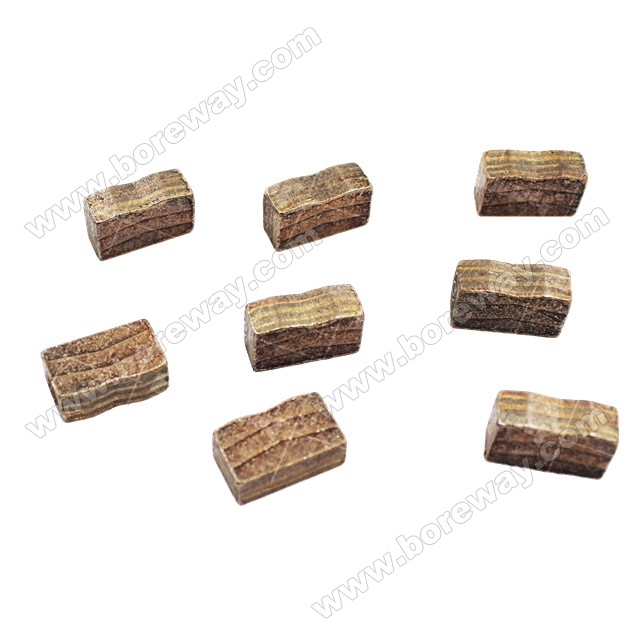

M shape diamond segment for granite cutting.

Diamond cutting segment for single saw blade,mulit saw blade.

Diamond segments wet use for bridge cutting machine and single arm machine.

High Fast Cutting Speed Diamond Saw Blade Granite Segment

Cutting effect:

Application machine:

Diamond tips cutting segments for marble suitable for bridge cutting machines, manual handling cutting machines or table cutting machines.

diamond tips cutting segments for marble silver welding by high frequency welding machine.

Saw Blade Segment is wet use

High frequency silver welded machine is recommended instead of welding by fire.

Don’t weld diamond segment for a long time, just a few minutes, otherwise the diamond inside might be damaged because of the high temperature, which will affect the cutting performance of the granite segment greatly.

Relatsd Products:

Multi Blade Diamond Segment	W Shape Edge Cutting Diamond Segment for Granite	1400mm Diamond Cutting Tools Marble Block Diamond Segments

About us:

Our serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. Do you have different quality for different kind of stone?

Yes, according hardness of stone and stone's feature, we have different typology respectively.

2. If we need technical support, can you offer us?

Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product management staff, engineers and technicians.

3. How can we be your agent in our country?

Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.

Plese note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.
