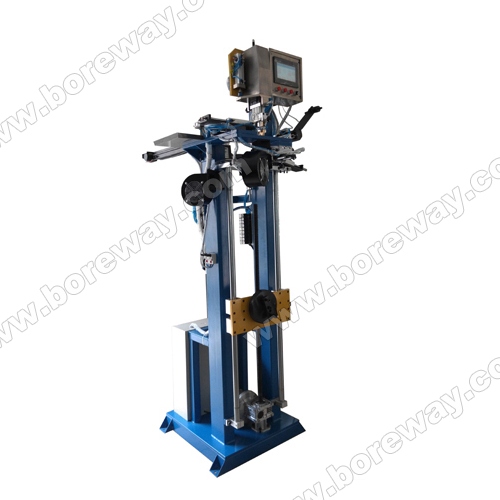

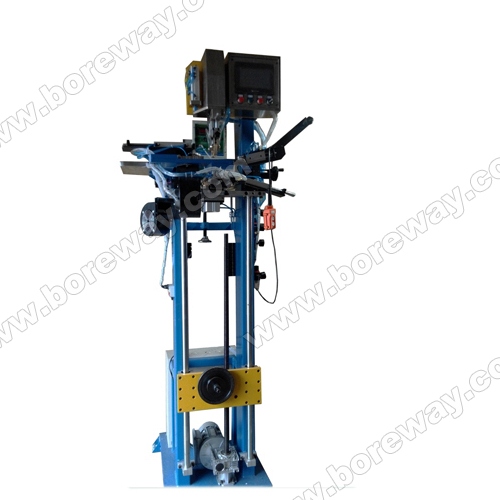

Fully Automatic Welding Machine For Diamond Saw Blade

Product parameters
Name: Fully Automatic Welding Machine For Diamond Saw Blade
Model Number: BWM-CY160A
Brazing Diameter Φ600 mm - Φ2200 mm
Welding error(Verticality) ±0.03 mm
Brazing Capacity(pc/h) 180-460 Pc/h
Air Pressure 0.6 Mpa
Hydraulic Pressure 0.2 Mpa
Power 2200 W
Water Consumption 1.5 m³/h
Weight 270 KG
Size 1000 mm*950 mm*2445 mm

Product Description


automatic welding machine for diamond saw blade:

This product uses the computer touch screen control, human-machine interface operation. The pneumatic driving gear, fault alarm display operation; Lifting of the cutting tools, clamp/saw blade of the cutting tools, welding time, welding gear, cooling time, skip welding parameters such as may be adjusted according to own actual need. A high degree of automation, simple operation, and can complete all welding process automation.
