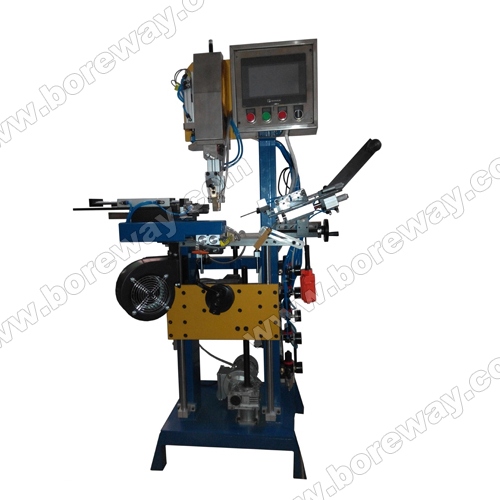

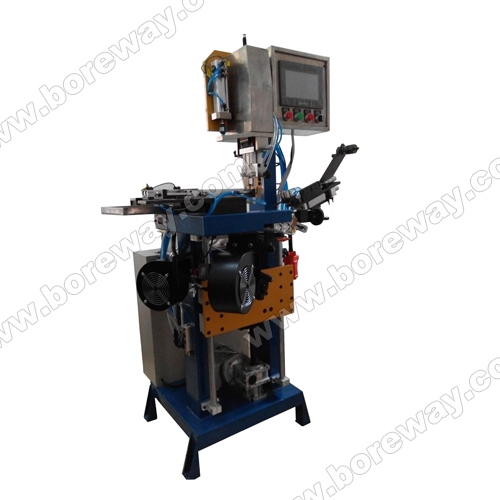

Fully Automatic Welding Machine For Diamond Saw Blade

Product parameters
Name: Fully Automatic Welding Machine For Diamond Saw Blade
Model Number: BWM-CY80A
Brazing Diameter Φ280 mm - Φ800 mm
Welding error(Verticality) ±0.03 mm
Brazing Capacity(pc/h) 250-800 Pc/h
Air Pressure 0.6 Mpa
Hydraulic Pressure 0.2 Mpa
Power 2200 W
Water Consumption 1.5 m³/h
Weight 230 KG
Size 1000 mm*810 mm*1550 mm

Product Description


automatic welding machine for diamond saw blade:

This product use the computer touch screen control, human-machine interface operation. Automatic control of welding time, sink with matrix photoelectric detection system, body automatic positioning. Automatically send segment, automatic rotation blockbusters, automatic sending welding wire, high positioning accuracy, tooth at the end of the second sending welding wire, guarantee the final welding strength. Bilateral independent fan, cooling speed. Automatic alarm display, convenient and troubleshooting. A high degree of automation, simple operation, can automatically complete all welding process.
