Diamond segments of small diameter drill bits

Product parameters
Name: Diamond segments of small diameter drill bits
Model Number: BW-DS-DB-S01
Type Wet or Dry Use
Dimension 22mm - 52mm
Industry Diamond tools
Usage drilling kinds of granite or hard stone
Machine drilling tools
drilling result Flat surface and even size
Advatage Good sharpness and Long lifespan
Welding Type Silver welding

Product Description

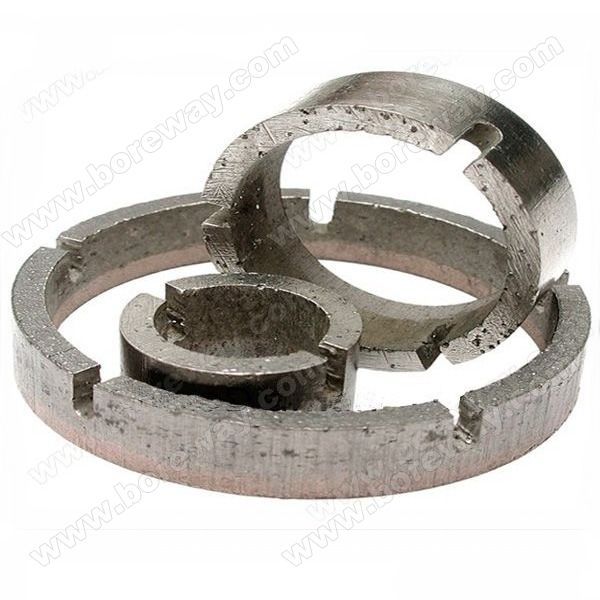

Diamond Segments of Drill Bits - Crown Shape - for Kinds of Granite or Hard Stone

Diamond segments of small diameter drill bits with crown of 22mm-52mm provide smooth drilling and avoid segments loosing. High Concentration of diamond offers long drilling life.

Applications: Kinds of granite or hard stone.

Welding Type: Silver welding.

Wet or Dry Use.

The following are the normal Specifications we are selling:

Code No. Diameter Segment Width Segment Height
BW-DS-DB-S01 7/8"(22mm) 2.5mm 10mm
1"(25mm) 2.5mm 10mm
1.18"(30mm) 2.5mm 10mm
1-1/4"(32mm) 2.5mm 10mm
1-3/8"(35mm) 2.5mm 10mm
1-1/2"(38mm) 3.0mm 10mm
1.63"(42mm) 3.0mm 10mm
1-3/4"(45mm) 3.0mm 10mm
1.88"(48mm) 3.0mm 10mm
2"(52mm) 3.0mm 10mm



The above specification & photos is only for Reference, other specification or design can be ordered by customers.

we can manufacture products upon clients' needs.
