Diamond segments normal flat shape of drill bits

Product parameters
Name: Diamond segments normal flat shape of drill bits
Model Number: BW-DS-DB-C03
Type: Wet or Dry Use
Diameter: 57mm to 356mm
Segment Width: 3.5mm to 5.5mm
Segment Height: 10mm
Segment shape: Normal Flat with Cuspate Top Shape
Applications: Cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material.
Machine: Hydraulic power drilling machines, Electric hand-held drills
Industry: Diamond tools
Welding method: Silver or Laser welding
Drilling result: Flat surface and even size
Advatage: Good sharpness and Long lifespan

Product Description

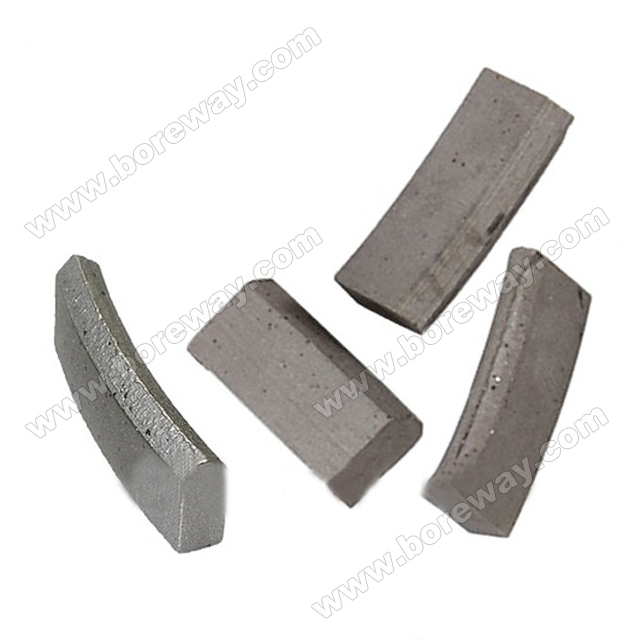

Diamond Segments of Drill Bits - Normal Flat with Cuspate Top Shape



Diamond segments normal flat shape of drill bits diameter 32mm-356mm provide smooth and fast drilling for kinds of concrete.



Applications: Cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material.



Machinery: Hydraulic power drilling machines, Electric hand-held drills.



Welding Type: Silver or Laser.



Wet or Dry Use.



The following are the normal Specifications we are selling:



Code No. Diameter Segment Size Segment No.
BW-DS-DB-C03-01 2.25"(57mm) 22x3.5x10 5
BW-DS-DB-C03-02 2.50"(63mm) 22x3.5x10 6
BW-DS-DB-C03-03 2.75"(70mm) 22x3.5x10 7
BW-DS-DB-C03-04 3"(76mm) 22x3.5x10 8
BW-DS-DB-C03-05 3.25"(82mm) 22x3.5x10 9
BW-DS-DB-C03-06 3.50"(89mm) 22x3.5x10 10
BW-DS-DB-C03-07 4"(102mm) 22x3.5x10 10
BW-DS-DB-C03-08 4.25"(108mm) 22x3.5x10 11
BW-DS-DB-C03-09 4.50"(114mm) 22x3.5x10 11
BW-DS-DB-C03-10 4.75"(120mm) 24x4.0x10 11
BW-DS-DB-C03-11 5"(127mm) 24x4.0x10 11
BW-DS-DB-C03-12 5.5"(140mm) 24x4.0x10 12
BW-DS-DB-C03-13 5.75"(146mm) 24x4.0x10 13
BW-DS-DB-C03-14 6"(152mm) 24x4.0x10 13
BW-DS-DB-C03-15 6.25"(159mm) 24x4.0x10 14
BW-DS-DB-C03-16 6.5"(165mm) 24x4.0x10 15
BW-DS-DB-C03-17 7"(178mm) 24x4.0x10 16
BW-DS-DB-C03-18 8"(203mm) 24x4.5x10 18
BW-DS-DB-C03-19 9"(229mm) 24x4.5x10 20
BW-DS-DB-C03-20 10"(254mm) 24x4.5x10 23
BW-DS-DB-C03-21 11"(280mm) 24x5.0x10 25
BW-DS-DB-C03-22 12"(305mm) 24x5.0x10 27
BW-DS-DB-C03-23 13"(330mm) 24x5.5x10 30
BW-DS-DB-C03-24 14"(356mm) 24x5.5x10 32



The above specification & photos is only for Reference, other specification or design can be ordered by customers.

 We can manufacture products upon clients' needs.
