Diamond segments normal flat shape of drill bits

Product parameters
Name: Diamond segments normal flat shape of drill bits
Model Number: BW-DS-DB-S02
Type Wet or Dry Use
Dimension 25mm - 127mm
Industry Diamond tools
Usage drilling kinds of granite or hard stone
Machine drilling tools
drilling result Flat surface and even size
Advatage Good sharpness and Long lifespan
Welding Type Silver or Laser welding

Product Description

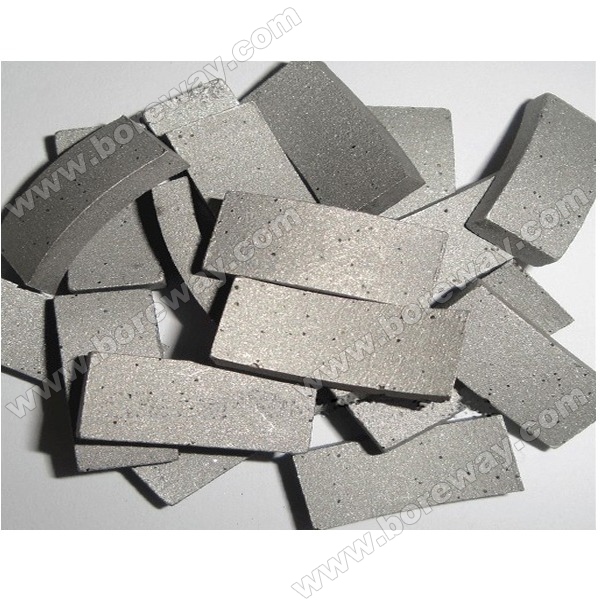

Diamond Segments of Drill Bits - Normal Flat Shape



Diamond segments normal flat shape of drill bits diameter 1"-5" provide smooth and fast drilling.



Applications: Kinds of granite or hard stone.



Welding Type: Silver or Laser welding.



Wet or Dry Use.



The following are the normal Specifications we are selling:



Code No. Diameter Segment Size Segment No.
BW-DS-DB-S02 1"(25mm) 17/12x3.0x10 4
1.18"(30mm) 17/12x3.0x10 4
1.25"(32mm) 16x3.0x10 4
1.38"(35mm) 16x3.0x10 4
1.50"(38mm) 16x3.0x10 5
1.63"(42mm) 16x3.0x10 5
1.75"(45mm) 16x3.0x10 6
1.88"(48mm) 16x3.0x10 6
2"(52mm) 16x3.0x10 7
2.25"(57mm) 22x3.5x10 5
2.50"(63mm) 22x3.5x10 6
2.75"(70mm) 22x3.5x10 7
3"(76mm) 22x3.5x10 8
3.25"(82mm) 22x3.5x10 9
3.50"(89mm) 22x3.5x10 10
4"(102mm) 22x3.5x10 10
4.25"(108mm) 22x3.5x10 11
4.50"(114mm) 22x3.5x10 11
4.75"(120mm) 24x4.0x10 11
5"(127mm) 24x4.0x10 11





The above specification & photos is only for Reference, other specification or design can be ordered by customers.

we can manufacture products upon clients' needs.
