| Product parameters |
| Name: | Diamond segments V Sandwich shape of drill bits |
| Model Number: | BW-DS-DB-C05 |
| Type: | Wet Use only |
| Diameter: | 57mm to 356mm |
| Segment Width: | 3.5mm to 5.5mm |
| Segment Height: | 14mm |
| Segment shape: | V Top Sandwich Shape |
| Applications: | Cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material. |
| Machine: | Hydraulic power drilling machines, Electric hand-held drills. |
| Industry: | Diamond tools |
| Welding method: | Silver welding |
| Drilling result: | Flat surface and even size |
| Advatage: | Good sharpness and Long lifespan |  |

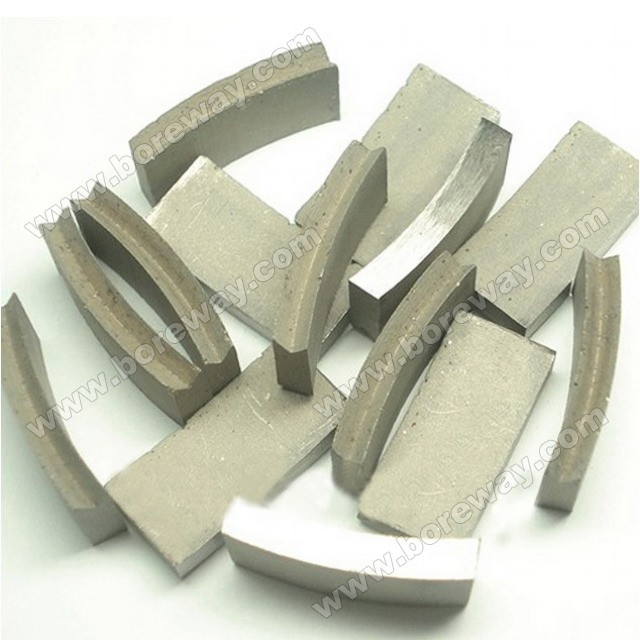

Diamond Segments of Drill Bits - V Top Sandwich Shape
Diamond segments V Sandwich shape of drill bits diameter 57mm-356mm, designed for maximum cutting capacity, fast drilling speed with long life, professional for cured reinforced concrete.
Drilling Speed is the key in total drilling cost, V shape segmented drill bits with high technology from USA offers you maximum drilling speed.
Applications: Cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material, specially for high reinforced concrete.
Machinery: Hydraulic power drilling machines, Electric hand-held drills.
Welding Type: Silver.
Wet Use only.
The following are the normal Specifications we are selling:
Code No.
Diameter
Segment Size
Segment No.
BW-DS-DB-C05-01
2.25"(57mm)
24x3.5x14
5
BW-DS-DB-C05-02
2.50"(63mm)
24x3.5x14
6
BW-DS-DB-C05-03
2.75"(70mm)
24x3.5x14
7
BW-DS-DB-C05-04
3"(76mm)
24x3.5x14
8
BW-DS-DB-C05-05
3.25"(82mm)
24x3.5x14
9
BW-DS-DB-C05-06
3.50"(89mm)
24x3.5x14
10
BW-DS-DB-C05-07
4"(102mm)
24x3.5x14
10
BW-DS-DB-C05-08
4.25"(108mm)
24x3.5x14
11
BW-DS-DB-C05-09
4.50"(114mm)
24x3.5x14
11
BW-DS-DB-C05-10
4.75"(120mm)
24x4.0x14
11
BW-DS-DB-C05-11
5"(127mm)
24x4.0x14
11
BW-DS-DB-C05-12
5.5"(140mm)
24x4.0x14
12
BW-DS-DB-C05-13
5.75"(146mm)
24x4.0x14
13
BW-DS-DB-C05-14
6"(152mm)
24x4.0x14
13
BW-DS-DB-C05-15
6.25"(159mm)
24x4.0x14
14
BW-DS-DB-C05-16
6.5"(165mm)
24x4.0x14
15
BW-DS-DB-C05-17
7"(178mm)
24x4.0x14
16
BW-DS-DB-C05-18
8"(203mm)
24x4.5x14
18
BW-DS-DB-C05-19
9"(229mm)
24x4.5x14
20
BW-DS-DB-C05-20
10"(254mm)
24x4.5x14
23
BW-DS-DB-C05-21
11"(280mm)
24x5.0x14
25
BW-DS-DB-C05-22
12"(305mm)
24x5.0x14
27
BW-DS-DB-C05-23
13"(330mm)
24x5.5x14
30
BW-DS-DB-C05-24
14"(356mm)
24x5.5x14
32
The above specification & photos is only for Reference, other specification or design can be ordered by customers.
We can manufacture products upon clients' needs.
