| Product parameters |
| Name: | Diamond segments Turbo shape of drill bits |
| Model Number: | BW-DS-DB-C04 |
| Type: | Wet or Dry Use |
| Diameter: | 32mm to 356mm |
| Segment Width: | 3.0mm to 5.5mm |
| Segment Height: | 10mm |
| Segment shape: | Turbo Shape |
| Applications: | Cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material. |
| Machine: | Hydraulic power drilling machines, Electric hand-held drills. |
| Industry: | Diamond tools |
| Welding method: | Silver or Laser welding |
| Drilling result: | Flat surface and even size |
| Advatage: | Good sharpness and Long lifespan |  |

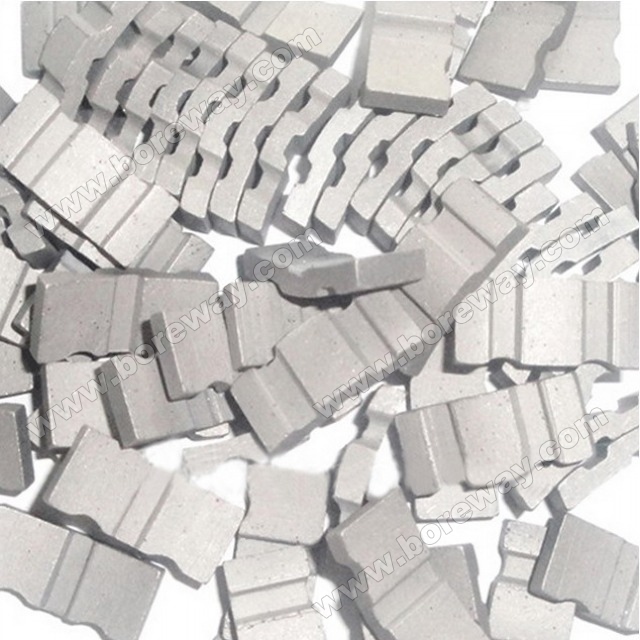

Diamond Segments of Drill Bits - Turbo Shape
Diamond segments Turbo shape of drill bits diameter 32mm-356mm provide smooth and fast drilling for kinds of concrete.
Applications: Cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material.
Machinery: Hydraulic power drilling machines, Electric hand-held drills.
Welding Type: Silver or Laser.
Wet or Dry(32mm-152mm) Use.
Under same bond conditions, the drilling speed of this type segments is much faster than normal flat segments, and all time the drilling speed is same.
The following are the normal Specifications we are selling:
Code No.
Diameter
Segment Size
Segment No.
BW-DS-DB-C04-01
1.25"(32mm)
16x3.0x10
4
BW-DS-DB-C04-02
1.38"(35mm)
16x3.0x10
4
BW-DS-DB-C04-03
1.50"(38mm)
16x3.0x10
5
BW-DS-DB-C04-04
1.63"(42mm)
16x3.0x10
5
BW-DS-DB-C04-05
1.75"(45mm)
16x3.0x10
6
BW-DS-DB-C04-06
1.88"(48mm)
16x3.0x10
6
BW-DS-DB-C04-07
2"(52mm)
16x3.0x10
7
BW-DS-DB-C04-08
2.25"(57mm)
24x3.5x10
5
BW-DS-DB-C04-09
2.50"(63mm)
24x3.5x10
6
BW-DS-DB-C04-10
2.75"(70mm)
24x3.5x10
7
BW-DS-DB-C04-11
3"(76mm)
24x3.5x10
8
BW-DS-DB-C04-12
3.25"(82mm)
24x3.5x10
9
BW-DS-DB-C04-13
3.50"(89mm)
24x3.5x10
10
BW-DS-DB-C04-14
4"(102mm)
24x3.5x10
10
BW-DS-DB-C04-15
4.25"(108mm)
24x3.5x10
11
BW-DS-DB-C04-16
4.50"(114mm)
24x3.5x10
11
BW-DS-DB-C04-17
4.75"(120mm)
24x4.0x10
11
BW-DS-DB-C04-18
5"(127mm)
24x4.0x10
11
BW-DS-DB-C04-19
5.5"(140mm)
24x4.0x10
12
BW-DS-DB-C04-20
5.75"(146mm)
24x4.0x10
13
BW-DS-DB-C04-21
6"(152mm)
24x4.0x10
13
BW-DS-DB-C04-22
6.25"(159mm)
24x4.0x10
14
BW-DS-DB-C04-23
6.5"(165mm)
24x4.0x10
15
BW-DS-DB-C04-24
7"(178mm)
24x4.0x10
16
BW-DS-DB-C04-25
8"(203mm)
24x4.5x10
18
BW-DS-DB-C04-26
9"(229mm)
24x4.5x10
20
BW-DS-DB-C04-27
10"(254mm)
24x4.5x10
23
BW-DS-DB-C04-28
11"(280mm)
24x5.0x10
25
BW-DS-DB-C04-29
12"(305mm)
24x5.0x10
27
BW-DS-DB-C04-30
13"(330mm)
24x5.5x10
30
BW-DS-DB-C04-31
14"(356mm)
24x5.5x10
32
The above specification & photos is only for Reference, other specification or design can be ordered by customers.
We can manufacture products upon clients' needs.
