Diamond core drill bit set for quartz

Add / Delete to Basket

Product parameters

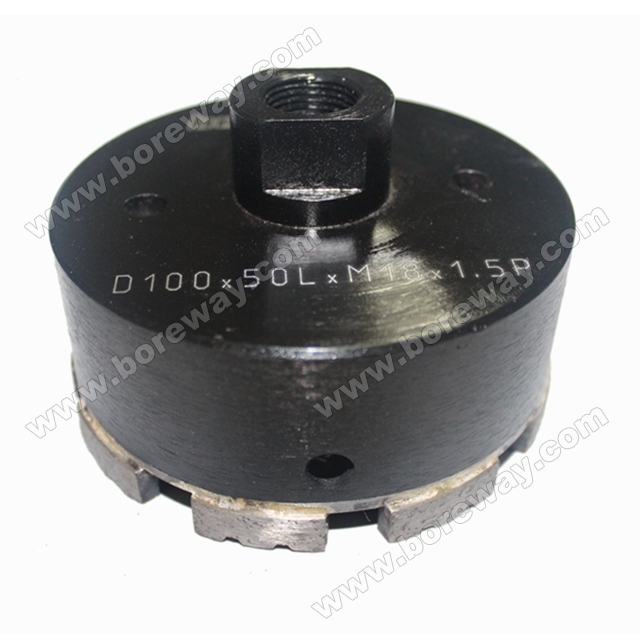

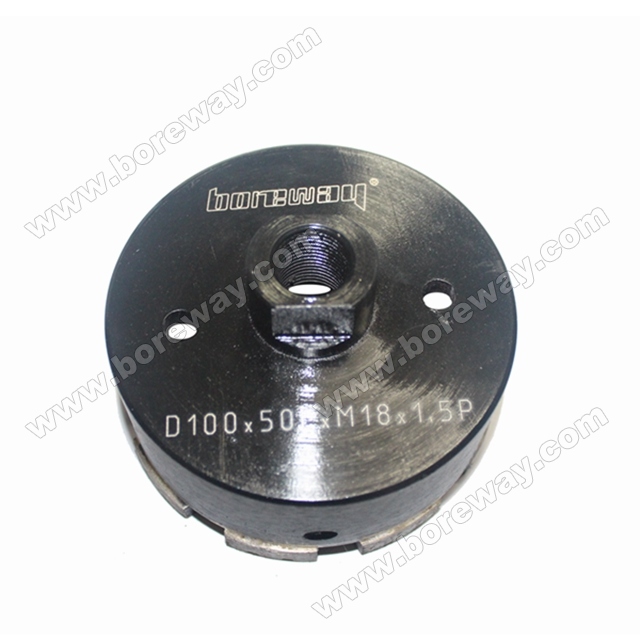

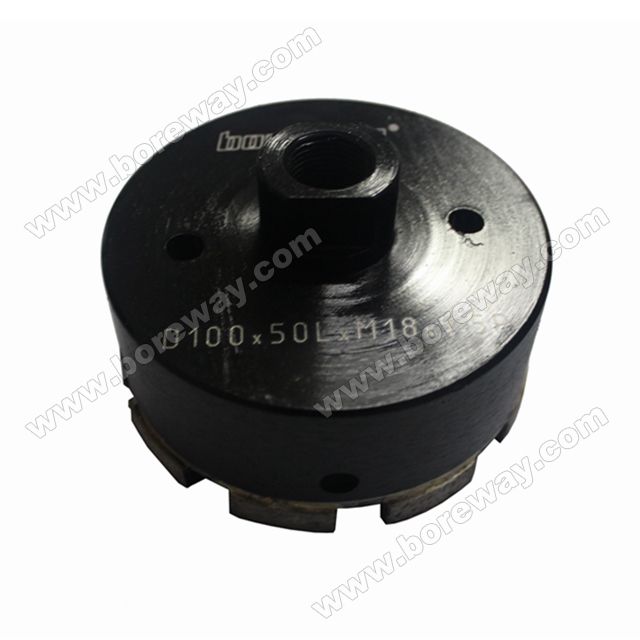

Name:	Diamond core drill bit set for quartz
Model Number:	BW-DDB-S03-18
Product name	Diamond core drill bit set
Diameter	100mm
Height	50mm
Connection	M18
Application	For quartz,granite,marble
Use	Dry and wet use
Machine	Diamond drill electric hand-held or CNC drilling machine
Advantage	Good stable and high efficiency

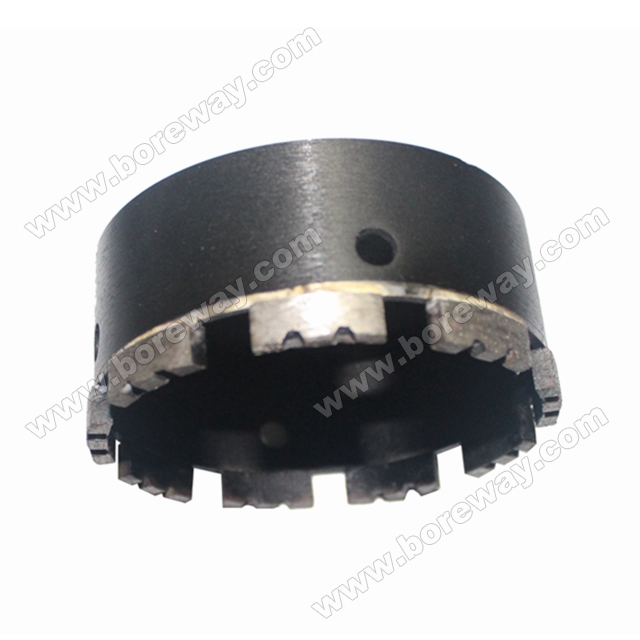

Diamond core drill bit set

Diamond core drill bit sets produced by silver or laser welding.It can be suitable for stand drilling

machines or electrical hand-held drillers or CNC machine.For drilling kinds of granite or hand stone.

Common uses would be small projects such as drilling out sink holes for faucets.And silver welded

is better for wet use and laser welded is better for dry use.

Diamond core drill bit set

The following is the normal size of our diamond core drill bit set:

Code No.	Diameter	Segment Size	Use	Pipe Length	Welding Method	Adaptor
BW-DDB-S03	20mm (3/4”)	17/12x3x10	Wet or Dry	4" (100mm)	Silver Welding or Laser Welding	5/8"-11 M14 1/2 Gas
	22mm (7/8”)	17/12x3x10
	25mm (1”)	17/12x3x10
	29mm (1-1/8")	17/12x3x10
	32mm (1-1/4”)	16x3x10
	35mm (1-3/8”)	16x3x10
	38mm (1-1/2”)	16x3x10
	42mm (1-5/8")	16x3x10
	45mm (1-3/4”)	16x3x10
	50/51mm (2”)	16x3x10
	57mm (2-1/4”)	22x3.5x10
	60mm (2-3/8”)	22x3.5x10
	63mm (2-1/2”)	22x3.5x10
	70mm (2-3/4”)	22x3.5x10
	76mm (3”)	22x3.5x10
	80mm (3-1/8”	22x3.5x10
	89mm (3-1/2”)	22x3.5x10
	102mm (4”)	22x3.5x10
	110mm (4-3/8”)	22x3.5x10
	127mm (5”)	24x4x10

The above specifications are for reference only.Other specifications can be ordered by customers.

When order diamond core drill bit set please Confirm.

Code No. of diamond core drill bit set(BW-DDB-S03-18)

Diameter(?)

Segment length(?)

Thread(?)

Quantity(?)
