Diamond circular saw blade for concrete with super turbo segment

Product parameters
Name: Diamond circular saw blade for concrete with super turbo segment
Model Number: BW-SBC-03
Diameter: From 105mm to 600mm
Segment Length: 40mm
Segment Heigth: 10mm
Segement shape: Super Turbo Segmented
Machine: Concrete cutting machine
Usage: For cutting kinds of concrete
Performance: Highly stable
Welding Method: Laser welded
Cutting result: Flat surface and even size

Product Description

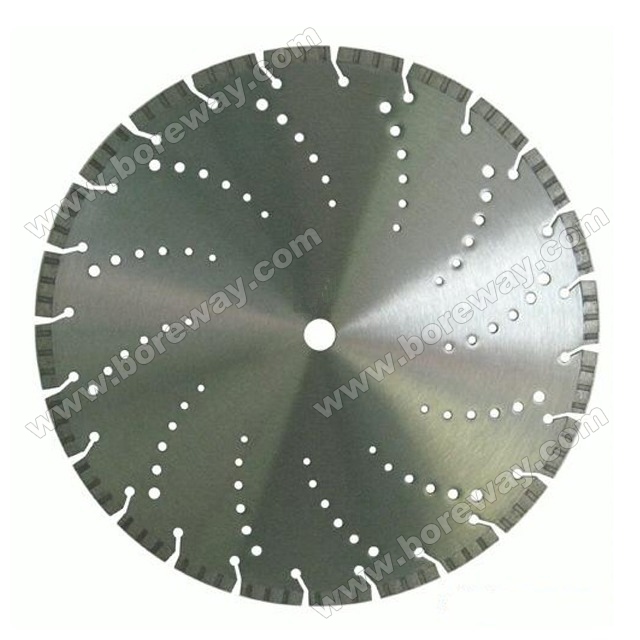

Diamond circular saw blade for concrete with Super Turbo segment -Laser Welded

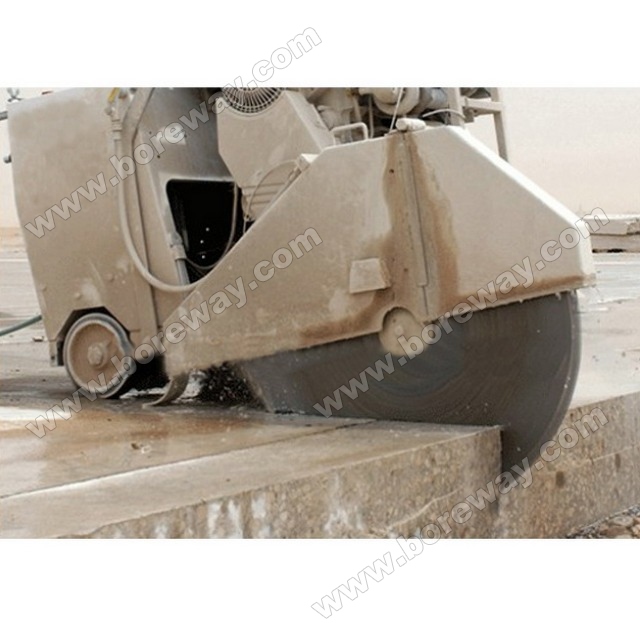

Laser welded super turbo segmented diamond saw blades designed for fast cutting kinds of concrete such as green concrete, cured concrete, concrete slabs, pipes, Bricks, Blocks, etc..

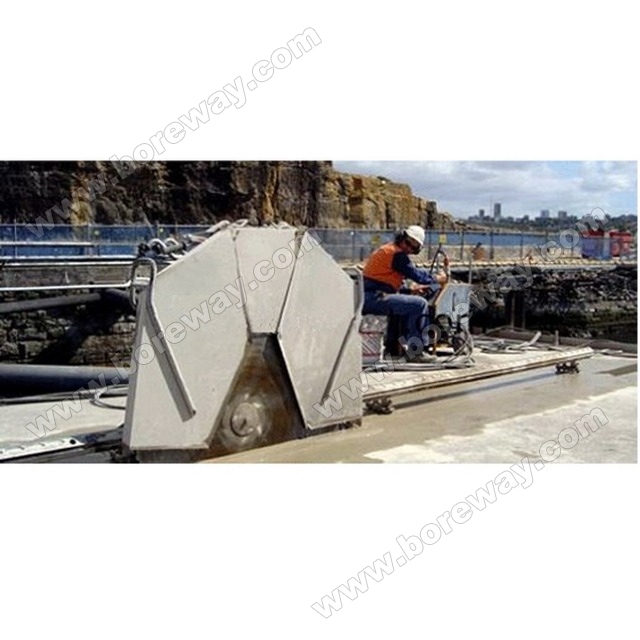

It is also for cutting reinforced concrete such as Road, Bridge, etc.

Holes on the core help fast cooling and cutting.


The following are the normal Specifications we are selling:



Code No. Diameter (mm/inch) Segment Size (mm) Segment No. (pcs/set) Welding Method
BW-SBC-03-01 105mm(4") 40x2.2x10 8 Laser Welded
BW-SBC-03-02 115mm(4.5") 40x2.2x10 9
BW-SBC-03-03 125mm(5") 40x2.2x10 10
BW-SBC-03-04 150mm(6) 40x2.2x10 12
BW-SBC-03-05 180mm(7) 40x2.4x10 14
BW-SBC-03-06 200mm(8") 40x2.8x10 16
BW-SBC-03-07 230mm(9") 40x2.8x10 16
BW-SBC-03-08 250mm(10") 40x3.0x10 17
BW-SBC-03-09 300mm(12") 40x3.0x10 21
BW-SBC-03-10 350mm(14") 40x3.2x10 24
BW-SBC-03-11 400mm(16") 40x3.6x10 28
BW-SBC-03-12 450mm(18") 40x4.0x10 32
BW-SBC-03-13 500mm(20") 40x4.2x10 36
BW-SBC-03-14 600mm(24") 40x4.6x10 42



The above specification & photos is only for Reference, other specification or design can be ordered by customers.





Kindly Noted



When place order for diamond concrete saw blades please inform the following if possible:

Saw Blade Code No.
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Installation hole (If, Need Customer's Drawing)
Silent or None Silent Saw Blade Please indicate
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if possible please inform Steel Core Thickness)
Use of saw blade (For Marble, Limestone or other material)
Quantity NO. (How many pcs blades your would like to order)
Machine Powder/RPM (If possible)
Expected Shipping Date
Special Requirements (If)
