Diamond Tuck Point Blade

Add / Delete to Basket

Product parameters

Name:	Diamond Tuck Point Blade
Model Number:	BW-DTPB-01
Diameter:	From 105mm to 230mm
Segment Width:	6.35mm
Segment Heigth:	7mm,10mm
Bore:	15.88mm,20mm,22.23mm
Machine:	Angle grinder, Tuck pointer
Usage:	Repairing grout, cleaning and routing cement mortar joints between bricks
Performance:	Highly stable
Welding Method:	Hot Sintered or Laser Welded
Cutting result:	Flat surface and even size

Product Description

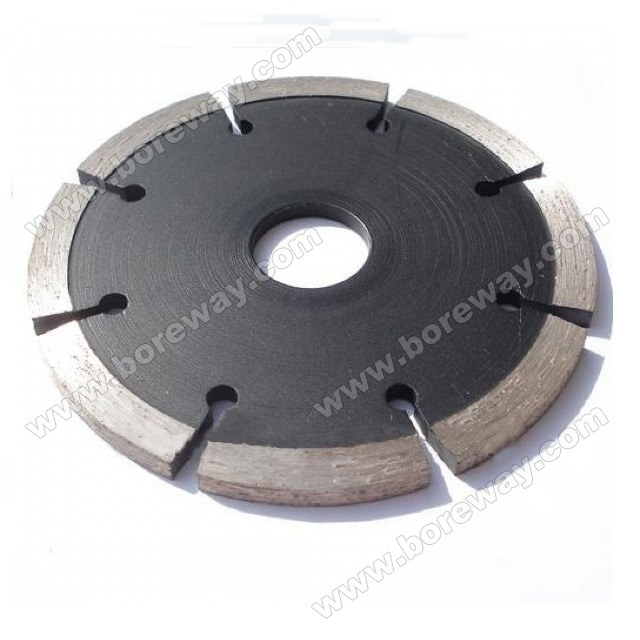

Diamond Tuck Point Blade - Normal Segmented

Normal Wide Segmented Diamond Tuck Point Blade designed for repairing grout, cleaning and routing cement mortar joints between bricks.

Standard segment width is 6.35mm, and standard segment height is 7mm.

Hot Sintered or Laser Welded, Dry or Wet Use!

Suitable for Angle grinder, tuck pointer.

The following are the normal Specifications we are selling:

Code No.	Diameter	Segment Width (mm)	Segment Height (mm)	Bore (mm)
BW-DTPB-01-01	105mm(4")	6.35mm(0.250")	7/10	15.88mm(5/8") 20mm 22.23MM(7/8")
BW-DTPB-01-02	115mm(4.5")		7/10
BW-DTPB-01-03	125mm(5")		7/10
BW-DTPB-01-04	150mm(6")		7/10
BW-DTPB-01-05	180mm(7")		7/10
BW-DTPB-01-06	200mm(8")		7/10
BW-DTPB-01-07	230mm(9")		7/10

The Above Products are not available from Store, the production needs about 15 days on receipt of Order Confirmation.

Kindly Noted ：

When place order for Tuck Point Saw Blade please inform:

Code No. of Tuck Point Saw Blade:
Diameter (Inch or mm)
Inner Hole / Bore Size (Inch or mm)

Segment Width & Height

Material Cutting: What type Granite, Sandstone, or other hard Stone?
Machine Powder/RPM (If possible)
Order Quantity & Expected Shipping Date
Special Requirements (If)

Please use the following before operating the cutting:
