Diamond Segments of Wall Saw Blades

Product parameters
Name: Diamond Segments of Wall Saw Blades
Model Number: BW-DSWS-01
Segment Length: 40mm
Segment Heigth: 12mm
Segement shape: V-shape
Machine: Hydraulic or electric powered wall saw
Usage: Wall Saw Blades
Industry Diamond tools, stone processing
Diameter: From 450 to 1200mm
Performance: Highly stable
Welding Method: Silver Welded
Cutting result: Flat surface and even size
Quality: Premium

Product Description

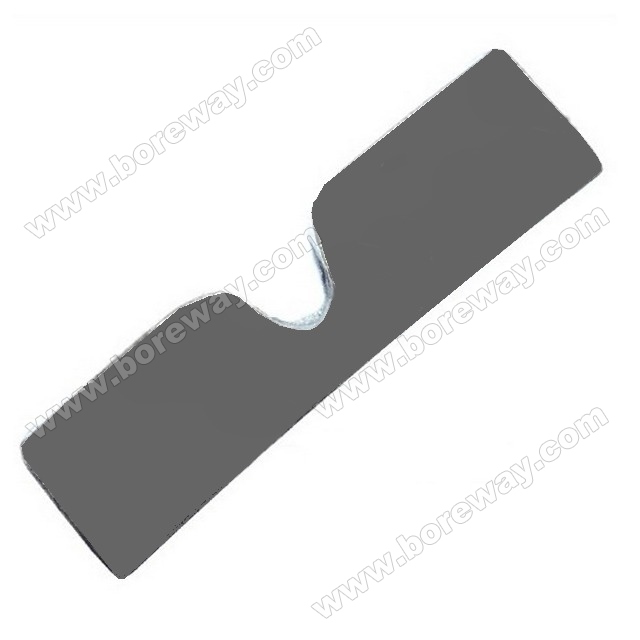

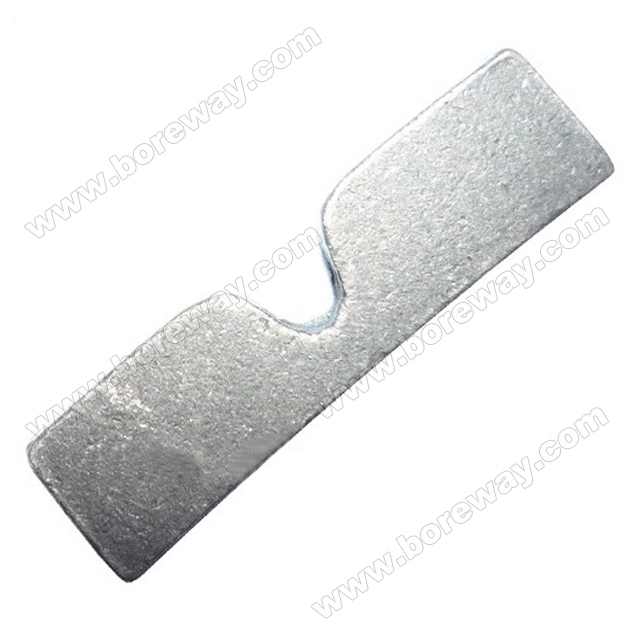

Diamond Segments of Wall Saw Blades

Diamond Segments of Wall Saw Blades are designed to cut openings in walls, floors, bridges, docks, dams, etc. They are capable of cutting through steel reinforcement in all types of concrete. Our wall saw segments are manufactured to cut with precision, speed and efficiency.



Features: V-shape sandwich segments provide fast and stable cutting.



Suitable for Hydraulic or electric powered wall saw.



The following are the normal Specifications we are selling:



Code No.

Diameter

(mm/inch)

Segment Size

(mm)

Segment No.

(pcs/set)

BW-DSWS-01-01

450mm(18")

40x4.6x12

24
BW-DSWS-01-02

500mm(20")

40x4.6x12

28
BW-DSWS-01-03

600mm(24")

40x4.6x12

34
BW-DSWS-01-04

650mm(26")

40x4.6x12

36
BW-DSWS-01-05

700mm(28")

40x4.6x12

40
BW-DSWS-01-06

750mm(30")

40x4.6x12

42
BW-DSWS-01-07

800mm(32")

40x4.6x12

46
BW-DSWS-01-08

900mm(36")

40x4.6x12

52
BW-DSWS-01-09

1000mm(40")

40x4.6x12

58
BW-DSWS-01-10

1050mm(42")

40x4.6x12

60
BW-DSWS-01-11 1100mm(44")

40x4.6x12

62
BW-DSWS-01-12

1200mm(48")

40x4.6x12

70



The above specification & photos is only for Reference, other specification or design can be ordered by customers.

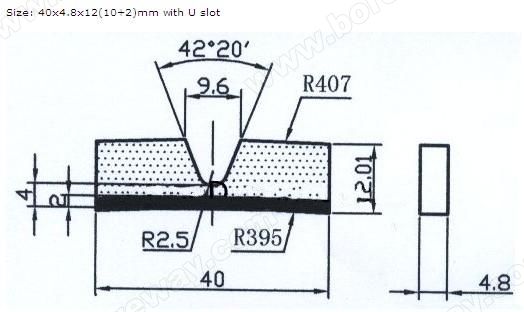

Drawing of 800mm Diamond Segment of Wall Saw:
