| Product parameters |
| Name: | Diamond Segments Normal Flat Shape of Drill Bits |
| Model Number: | BW-DS-DB-C02 |
| Type: | Wet Use |
| Diameter: | 22mm to 356mm |
| Segment Width: | 3.0mm to 5.0mm |
| Segment Height: | 10mm |
| Segment shape: | Normal Flat Shape |
| Applications: | Cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material. |
| Machine: | Drilling tools |
| Industry: | Diamond tools |
| Welding method: | Silver welding |
| Drilling result: | Flat surface and even size |
| Advatage: | Good sharpness and Long lifespan |  |

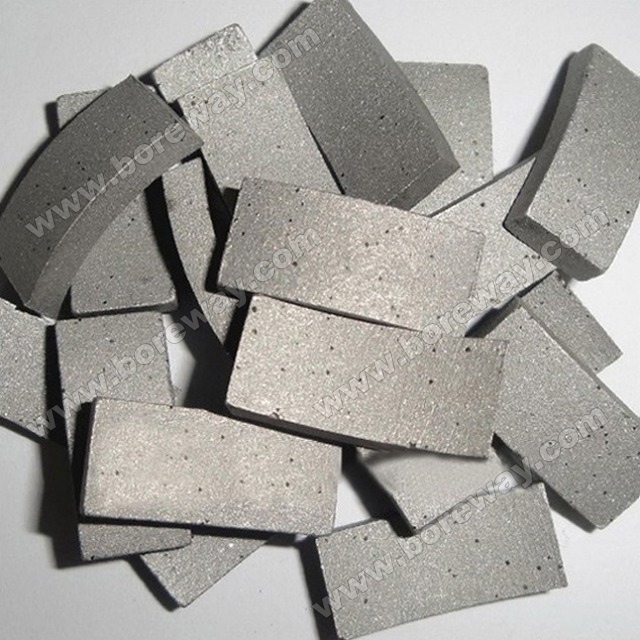

Diamond Segments of Drill Bits - Normal Flat Shape
Diamond segments normal flat shape of drill bits diameter 22mm-356mm provide smooth and fast drilling for kinds of concrete.
Applications: Cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material.
Welding Type: Silver or Laser.
Wet Use.
The following are the normal Specifications we are selling:
Code No.
Diameter
Segment Size
Segment No.
BW-DS-DB-C02-01
7/8"(22mm)
17/12x3.0x10
3
BW-DS-DB-C02-02
1"(25mm)
17/12x3.0x10
4
BW-DS-DB-C02-03
1.18"(29mm)
17/12x3.0x10
4
BW-DS-DB-C02-04
1.25"(32mm)
16x3.0x10
4
BW-DS-DB-C02-05
1.38"(35mm)
16x3.0x10
4
BW-DS-DB-C02-06
1.50"(38mm)
16x3.0x10
5
BW-DS-DB-C02-07
1.63"(42mm)
16x3.0x10
5
BW-DS-DB-C02-08
1.75"(45mm)
16x3.0x10
6
BW-DS-DB-C02-09
1.88"(48mm)
16x3.0x10
6
BW-DS-DB-C02-10
2"(52mm)
16x3.0x10
7
BW-DS-DB-C02-11
2.25"(57mm)
22x3.5x10
5
BW-DS-DB-C02-12
2.50"(63mm)
22x3.5x10
6
BW-DS-DB-C02-13
2.75"(70mm)
22x3.5x10
7
BW-DS-DB-C02-14
3"(76mm)
22x3.5x10
8
BW-DS-DB-C02-15
3.25"(82mm)
22x3.5x10
9
BW-DS-DB-C02-16
3.50"(89mm)
22x3.5x10
10
BW-DS-DB-C02-17
4"(102mm)
22x3.5x10
10
BW-DS-DB-C02-18
4.25"(108mm)
22x3.5x10
11
BW-DS-DB-C02-19
4.50"(114mm)
22x3.5x10
11
BW-DS-DB-C02-20
4.75"(120mm)
24x4.0x10
11
BW-DS-DB-C02-21
5"(127mm)
24x4.0x10
11
BW-DS-DB-C02-22
5.5"(140mm)
24x4.0x10
12
BW-DS-DB-C02-23
5.75"(146mm)
24x4.0x10
13
BW-DS-DB-C02-24
6"(152mm)
24x4.0x10
13
BW-DS-DB-C02-25
6.25"(159mm)
24x4.0x10
14
BW-DS-DB-C02-26
6.5"(165mm)
24x4.0x10
15
BW-DS-DB-C02-27
7"(178mm)
24x4.0x10
16
BW-DS-DB-C02-28
8"(203mm)
24x4.5x10
18
BW-DS-DB-C02-29
9"(229mm)
24x4.5x10
20
BW-DS-DB-C02-30
10"(254mm)
24x4.5x10
23
BW-DS-DB-C02-31
11"(280mm)
24x5.0x10
25
BW-DS-DB-C02-32
12"(305mm)
24x5.0x10
27
BW-DS-DB-C02-33
13"(330mm)
24x5.5x10
30
BW-DS-DB-C02-34
14"(356mm)
24x5.5x10
32
The above specification & photos is only for Reference, other specification or design can be ordered by customers.
We can manufacture products upon clients' needs.
