Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones

Product parameters
Name: Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones
Model Number: BW-BHP-125
Origin China
Hammer Material Steel
Segment No. 3 Roller
Brand Name Boreway
Type Abrasive Disc
Connection M14, 5/8-11 etc
Size 5''x 3 Roller x 30 Pins M14
Usage Making Litchi Surface For Stones
Transport Package Carton Box for Each Piece or Customers Require

Product Description


Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones

Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones. Bush Hammer Plate is mainly designed for texturing and roughening of smooth stone surfaces and is especially important for performing operations to create anti-slip surfaces on stone floors and steps, etc. It's scrollable and highly efficient.

Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones.We use high-grade tungsten carbide on our bush hammer and then weld them on the YG10 core carefully, fill in enough grease to make sure the bearing could rotary easily, seal tightly with seal ring to avoid the dust outside when working. After the product have been made, our skilled inspector inspect them strictly.

Feature:

1. Diameter: 125MM, 150MM, 200MM, 250MM, 300MM, 350MM, 400M, 450MM
2. Roller quantity in per bush hammer: 3PCS, 4PCS, 5PCS, 6PCS, 9PCS and 12PCS
3. Segment quantity in per roller: 30PCS, 45PCS and 60PCS etc
4. Specially used on granite, marble, sandstone, concrete etc to make rough surface

Specifications:

1. Durable metal and diamond compound
2. Effective for grinding natural stones and concrete to get bush hammer ffect
3. Different granularities and sizes as requested for the diamond roller
4. Competitive price and superior quality

More Normal Specification Of Rotary Bush Hammer Roller:

Model

Out

Diameter

Wheel 

Width

Segment

Quantity

Segment

Diameter


Remark


BW-BHR4530  45  22  30  3.6
4.5
4.6
4.7
6.0
8.0
   		 With Stand
      Without Stand
BW-BHR5330  53  30  30
BW-BHR5530  55  22  30
BW-BHR5545  55 22  45
BW-BHR5545   55  30  45
BW-BHR5545  55  39  45
BW-BHR5545  55  53  45
BW-BHR5545  55  55  45
BW-BHR5560   55  43  60
BW-BHR8060  80  55  60
BW-BHR5972  59  53  72
BW-BHR6077  60  53  99
BW-BHR3307  33  6  7   Star Type
BW-BHR3310  33  6  10
BW-BHR4910  49  6  10
BW-BHR4915  49  6  15
BW-BHR4920  49  6  20

More Normal Specification Of Rotary Bush Hammer Plate:

Model   Out Diameter   Wheel Width   Segment Quantity
Inch  mm
BW-BH12514  5  125 3  14
BW-BH12514  4  14
BW-BH12520  3  20
BW-BH12520  4  20
BW-BH12530  5  125  3  30
BW-BH15014  6  150 4  14
BW-BH12520  6  150  4  20
BW-BH15045  6   150   3  45
BW-BH15030  4  30
BW-BH20045  8   200  4  45
BW-BH20030  6  30
BW-BH25045  10   250   5  45
BW-BH25030  6  30
BW-BH30045  12   300   6  45
BW-BH30030  9  30
BW-BH35045  14   350   9  45
BW-BH35030  12  30

Can customize the size of other rotary bush hammers roller as required.

FAQ

What is bush hammer?

Bush hammer is a masonry tool used to texturize stone and concrete, to make a litchi surface, which is a rough surface.



Normally, We divide it into two categories. One is hand bush hammer (powered by human) and the other is rotary bush hammer (powered by electricity)

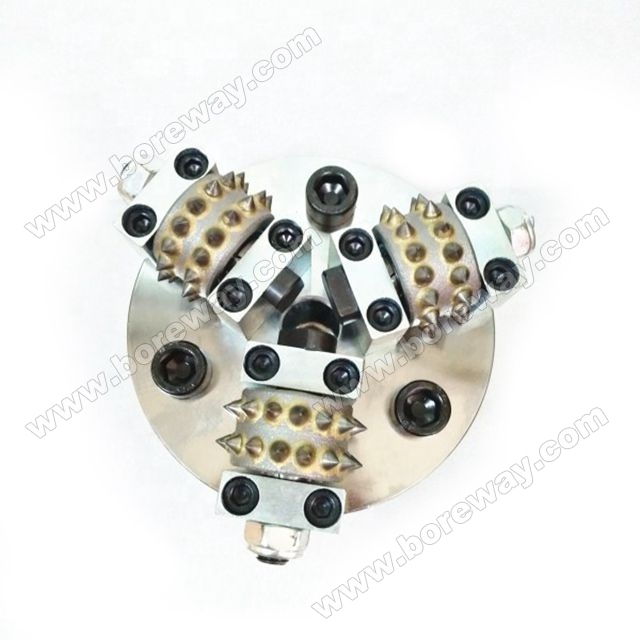

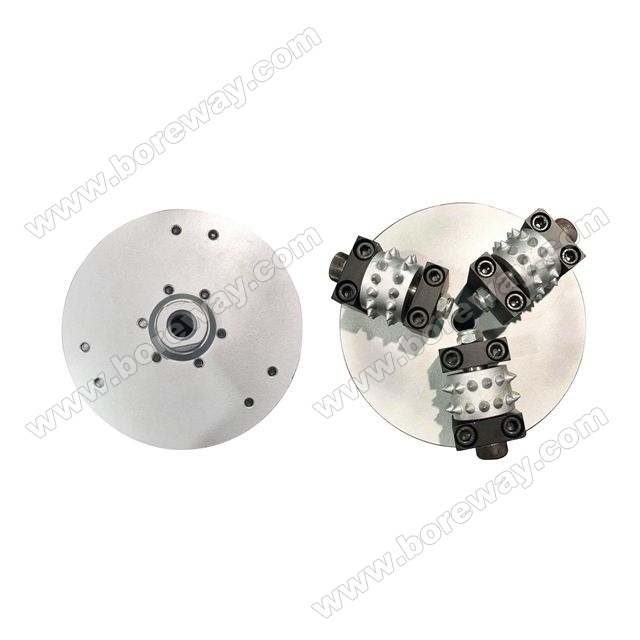

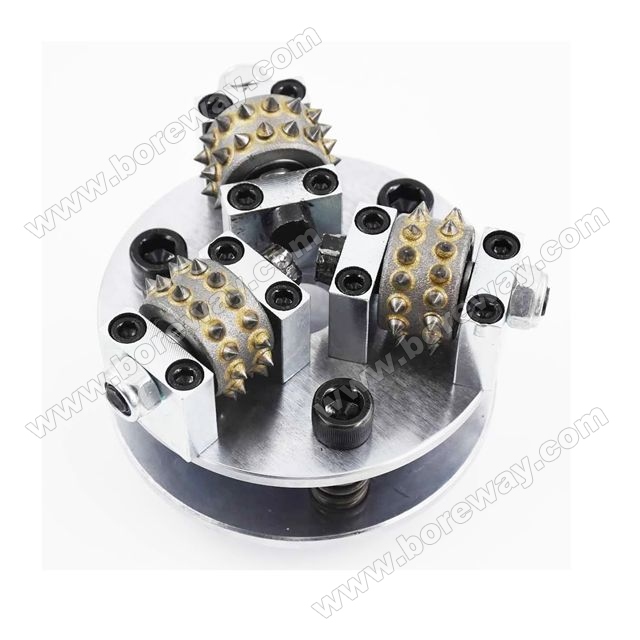

125mm double or single bush hammer plate:

Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones 11Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones 22Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones 33
Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones 33Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones 45 Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones 66
Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones 77Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones 88Diamond Rotary Tool Bush Hammer Plates M14 Threaded Making Litchi Surface For Stones 99

THEORY:

Although the appearance is different from the hand bush hammer and rotary bush hammer. But the basic theory is the same. What works is the carbide tips. The carbide tips strike on the surface of stone or concrete, to make the rugged surface, or we call it litchi surface (Just like the shell of litchi). The litchi surface has 2 purposes, one is for the shape of beauty, and the other is for functional applications, like anti-skidding.

Now, let's focus on the rotary bush hammer, because it is more efficient and has a better performance than hand bush hammer.

At first, there are several types and sizes for carbide of bush hammer, such as Tips, Slide, Satellite, Knurling and etc. Different types make different surfaces. The carbides are welded on a "core" and make up the bush hammer head together with other components. Let's look at the structure of tips type bush hammer head/roller for reference:

Second, the bush hammer roller have several different connecting types with different machines, such as Frankfurt type, Single layer plate, Double layers plate, Sink down type. They could be used on manual tools, or floor grinders, or bush hammer machines

Third, the appearance of the final surface not only related to the shape, numbers and arrangement of carbide, but also the rotary speed and feed speed(for machines). The arrangement of bush hammer head/roller needs to be symmetrical, thus it will be balanced when working, also increase the lifespan.
