Diamond Grinding Head with 6pcs bar shape segments

Product parameters
Name: Diamond Grinding Head with 6pcs bar shape segments
Model Number: BW-GH-01
Diameter: 74mm
Grit No.: #6, #16, #30, #60, #120
Segment No.: 6pcs
Segment Size: 30x7.5x10mm
Machine: Floor grinding machines
Application: Concrete grinding
Industry Diamond tools
Use Type: Dry or Wet Use
Bond Type: Soft, Medium, Hard.

Product Description

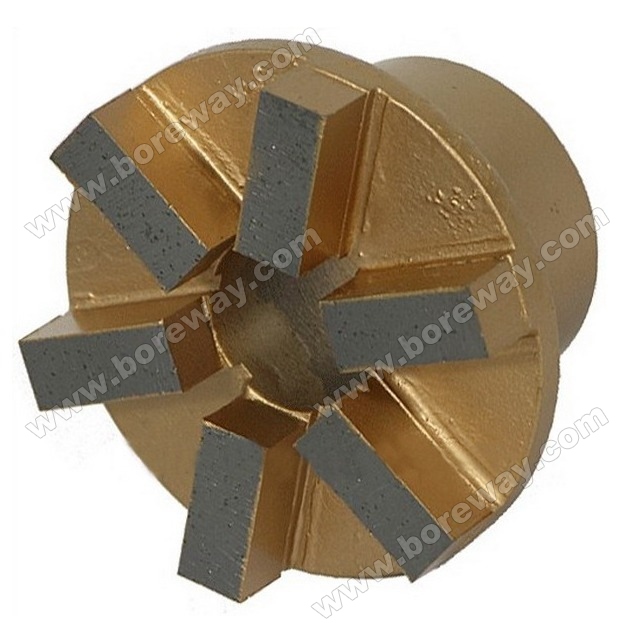

Diamond Grinding Head - 6pcs segments

Diamond Grinding Heads with 6pcs diamond segments, used on grinding machines for concrete, usually for floor preparation such as surface grinding and coating removal.



Dry or Wet Use!



Bond Type: Soft, Medium, Hard.



The following are the normal Specifications we are selling:



Code No.

Diameter

Segment Size

Segment No.

Weight

BW-GH-01

74mm (3")

30x7.5x10mm

6pcs

0.8kg/pc



The above specification & photos is only for Reference, other specification or design can be ordered by customers.

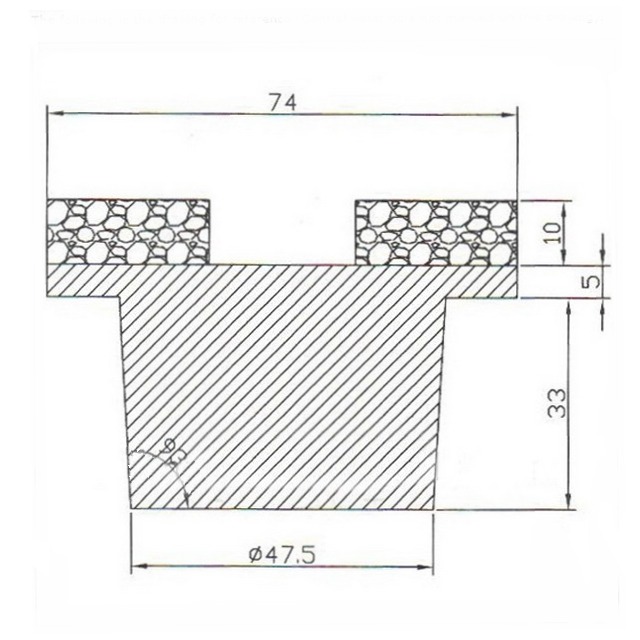

The following is the drawing for reference (Central water hole not marked on this drawing):
