| Product parameters |
| Name: | Diamond Crack Chaser |
| Model Number: | BW-DTPB-02 |
| Diameter: | From 105mm to 200mm |
| Segment Width: | 6.35mm,9.50mm |
| Segment Heigth: | 12.7mm |
| Bore: | 15.88,20.0,22.23mm |
| Machine: | Angle grinder, Tuck pointer |
| Usage: | Routing, cleaning, and repairing cracks or joints in concrete |
| Performance: | Highly stable |
| Welding Method: | Hot Sintered |
| Cutting result: | Flat surface and even size |
| Type: | Dry or Wet Use |  |

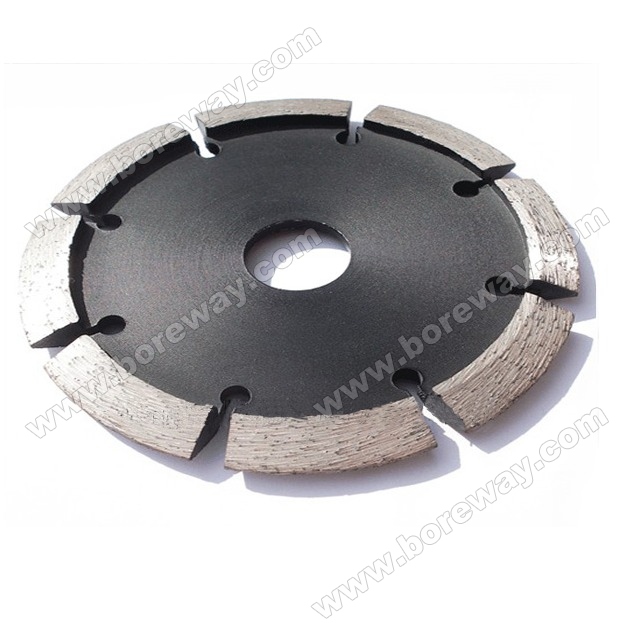

Diamond Tuck Point Blade - Crack Chaser
Diamond Crack Chaser with V-shaped segments suitable for working on routing, cleaning, and repairing cracks or joints in concrete and all building materials. High concentration of diamond provides extra long life.
Hot Sintered, Dry or Wet Use!
Suitable for Angle grinder, tuck pointer.
The following are the normal Specifications we are selling:
| Code No. |
Diameter |
Segment Width (mm) |
Segment Height (mm) |
Bore (mm) |
| BW-DTPB-02-01 |
105mm(4") |
6.35mm(0.250") or 9.50mm(0.375") |
12.7mm |
15.88mm(5/8") 20mm 22.23MM(7/8") |
| BW-DTPB-02-02 |
115mm(4.5") |
12.7mm |
||
| BW-DTPB-02-03 |
125mm(5") |
12.7mm |
||
| BW-DTPB-02-04 | 150mm(6") |
12.7mm |
||
| BW-DTPB-02-05 |
180mm(7") |
12.7mm |
||
| BW-DTPB-02-06 |
200mm(8") |
12.7mm |
The Above Products are not available from Store, the production needs about 15 days on receipt of Order Confirmation.
Kindly Noted ：
When place order for Diamond Crack Chaser please inform:
Code No. of Tuck Point Saw Blade:
Diameter (Inch or mm)
Inner Hole / Bore Size (Inch or mm)
Segment Width & Height
Material Cutting: What type Granite, Sandstone, or other hard Stone?
Machine Powder/RPM (If possible)
Order Quantity & Expected Shipping Date
Special Requirements (If)
Please use the following before operating the cutting:
