Diamond Chamfering Wheels for Ceramic

Add / Delete to Basket

Product parameters

Name:	Diamond Chamfering Wheels for Ceramic
Model Number:	BW-DCFW-03
Diameter:	Ф200mm,Ф250mm,Ф300mm
Bond Type:	Metal Bond
Type：	Dry
Segment Width:	8mm,12mm
Segment Height:	12mm
Application:	Chamfering Ceramic Tiles after squaring

Product Description

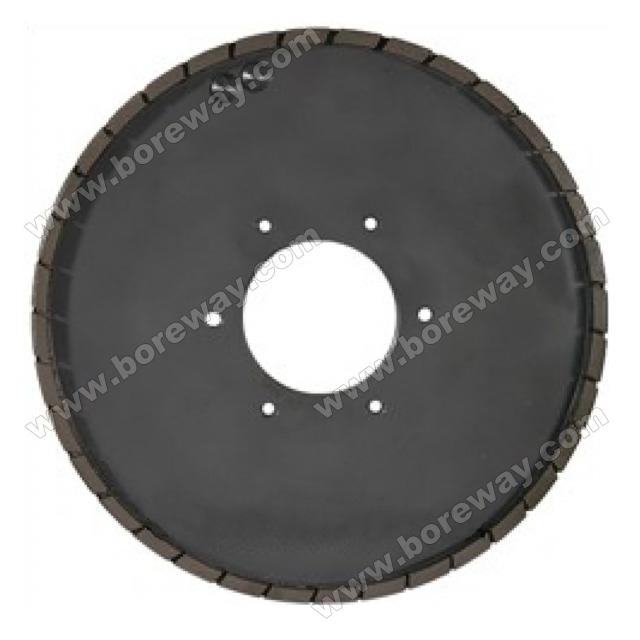

Diamond Chamfering Wheels for Ceramic

The advantage of these produces is to make chamfering without water on ceramic tiles edges, which can achieve the same effect as traditional wet squaring and chamfering way. By the traditional wet mode, the tiles body will absorb water and some water will be still remained after drying, so ceramic tiles may become mildew and dyed when storing and transportation.

But by dry chamfering mode, can prevent effectively above mentioned quality problems, more over the drying equipments and process become unnecessary, so the power consumption can be lowered, labor cost, drying equipments and elated field can be saved. These products are suitable for make dry squaring and chamfering on glaze wall tiles. Our dry squaring and chamfering wheels are approved for their high grinding and cutting efficiency, excellent effect and stabile performance.

Metal Bond Diamond Chamfering Wheels for chamfering Ceramic Tiles after squaring to keep safety during storing, transportation, tiling and using.

Features

By adopting G6.3 accurate dynamic balancing, it works stably with low vibration at high speed, low noise and high performance while grinding.The specific construction allows better sharpness,easy dust removal and smooth surface without chipping that enjoys long life.

Applications

Diamond turbo squaring wheels are used for trimming and correcting the rim of tile to get scheduled size.

The following are the normal Specifications we are selling:

Products Name	Specification (Diameter)	Segment Dimension (LxWxH)	Segment Number	Grit	Mouning Dimension and inner hole	Note


Diamond Charmfering /Squaring Wheels	Ф200	22/20x8x12	24	Upon request	6-M8/Ф105xФ80 4-M8/Ф130xФ80 6-M6/Ф170xФ150 4-M10/Ф220xФ200	This product is suitable for machines such as Keda,Zhuoma, Pedrini,Angela
	Ф250	22/20x8x12	32
	Ф300	22/20x8x12	35

The above specification is only for Reference, other or special specification can be ordered by customers.
