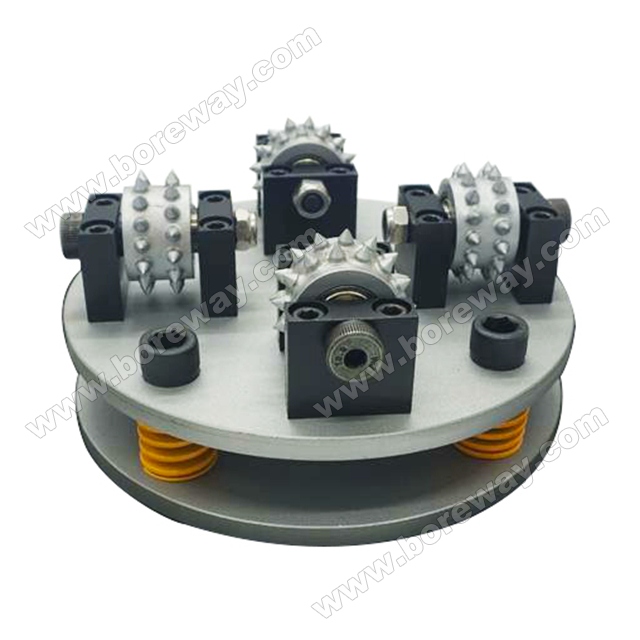

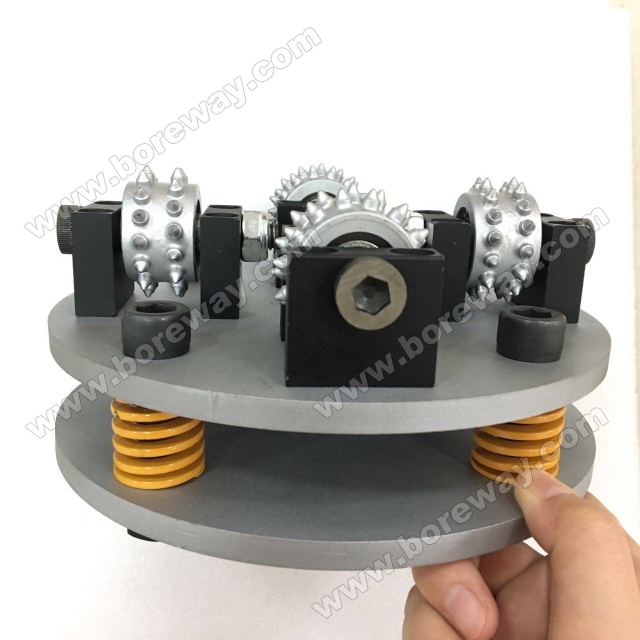

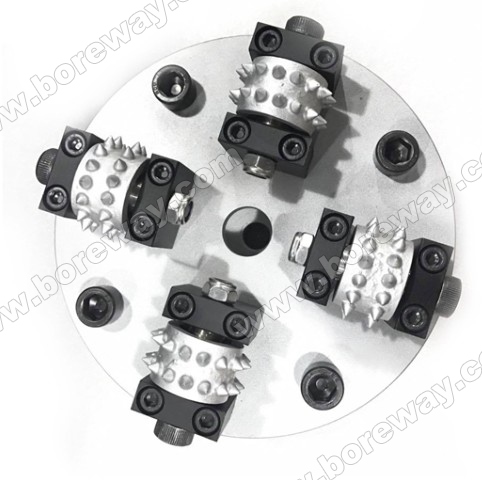

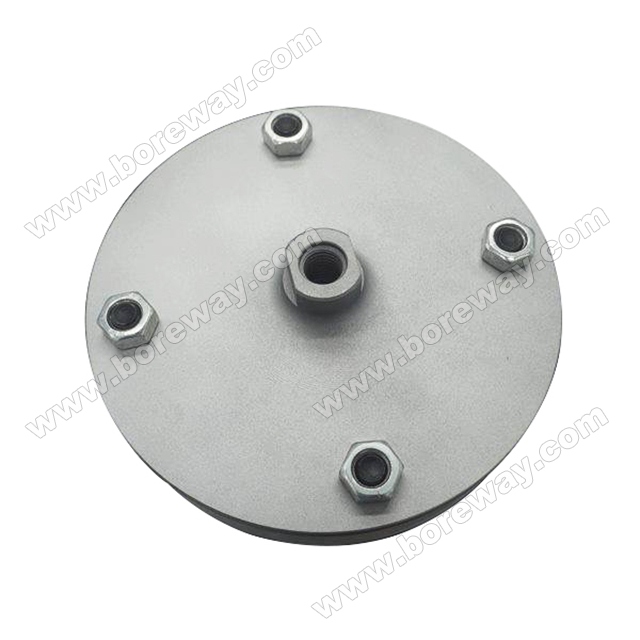

China Manufacturers Rotary Bush Hammer Plate With 4 Rollers

Add / Delete to Basket

Product parameters

Name:	China Manufacturers Rotary Bush Hammer Plate With 4 Rollers
Model Number:	BW-BHP-200
Place of Origin:	China
Brand Name:	Boreway
Diameter:	200mm
Roller Quantity:	4 Rollers
Connection:	M14,5/8
Type:	Abrasive Plate
Size:	D200x4TxM14
Rotational Speed:	Below 700 RPM
Application:	Stone,Concrete Grinding and Polishing

Product Description

China Manufacturers Rotary Bush Hammer Plate With 4 Rollers

Description:

Bush Hammer Disc With 4 Rollers are used for grinding the surface of granite, marble, concrete and other materials, grind into a rough surface.

1. It plays the role of anti-skid and also can play the role of decoration;

2. The repeated hit of these carbide tips into stone or concrete surface creates a rough, pockmarked texture that looks like naturally weathered rock;

3. This segments of the bush hammer roller is carbides, each plate has 4rollers, each roller has 45segments, the connections of the palte is H47, this bush hammer plate can be used on hand stone polishing machine machine;

4. It is suggested that the rotational speed is below 700 RPM, bush hammer tool is 5-6 times faster than manual times, the cost is greatly saved;

5. The grit of bush hammer face can be adjusted and the size of adaptor decide to its machine, other specifications can be customized according to requirements.

Feature:

Bush hammer tools usually used in the following aspects.

1. For floor preparation before laying new coatings.

2. To remove old glue and resin coatings, in particular thick resins.

3. For grinding floors, make the ground rough and do antiskid treatment.

4. For grinding floors, can be prepared for the subsequent ground laying materials.

5. For processing stone surface, pockmarked texture that looks like naturally weathered rock.

Application :

1. To create anti-slip surfaces.

2. For floor preparation before laying new coatings.

3. China diamond bush hammer factory,to remove old glue and resin coatings, in particular thick resins.

4. Rotary bush hammer roller plate manufacturers,to expose the aggregate in concrete floors to prepare for concrete polishing.

5. To use as a scarifying machine with the advantage that it is aggressive but gentle enough not to “dig” uncontrollably into the floor surface.

Specification:

The followings are the normal specifications of Bush Hammer Roller Plate With 4 Rollers.

Product name	Outer Diameter		Roller Quantity	Segment Quantity
	Inch	mm
Bush Hammer Tools	5	125	3	30
	6	150	4	45
			3	30
	8	200	6	45
			4	30
	10	250	8	45
			5	30
	12	300	10	45
			6	30

More normal specification of diamond bush hammer plate:

Model	Out Diameter		Wheel Width	Segment Quantity	Connection	Remark
Model	Inch	mm	Wheel Width	Segment Quantity	Connection	Remark
BW-BH12514	5	125	3	14	M10 M12 M16 5/8”-11 40H-50H Φ74-3*M8 Fast Connection	Singer Layer Double Layer
BW-BH12514			4	14
BW-BH12520			3	20
BW-BH12520			4	20
BW-BH12530	5	125	3	30
BW-BH15014	6	150	4	14
BW-BH15020	6	150	4	20
BW-BH15045	6	150	3	45
BW-BH15030	6	150	4	30
BW-BH20045	8	200	4	45
BW-BH20030	8	200	6	30
BW-BH25045	10	250	5	45
BW-BH25030	10	250	6	30
BW-BH30045	12	300	6	45
BW-BH30030	12	300	9	30
BW-BH35045	14	350	9	45
BW-BH35030	14	350	12	30

Specially designed tools are available for any standard apllication.

We can customize tools as per your exact needs.

Notice:

1.Before purchase, please provide the model of the machine.

2.Please provide the material before purchase.

3.Other specifications can be customized according to requirements.

Plese Note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.
