Products category

CNC screw core bit

Add / Delete to Basket

Product parameters

Name:	CNC screw core bit
Model Number:	BW-SCB-00
Type	Hollow & solid
Diameter	20mm
Segment length	20mm &30mm
Thread	M12
Connection shaft	1/2’’G68L& 1/2’’G100L
Machine	Portable drilling rig and CNC machine tools
Use	Wet use
Usage	For the center diamond drill screw holes, vias, blind holes trimming, and milling slots on stone slabs such as kitchen panel,washbasin,etc.

Product Description

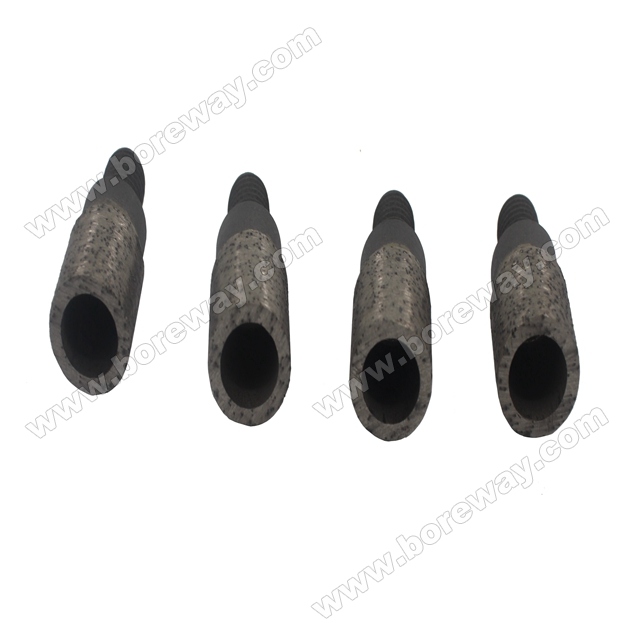

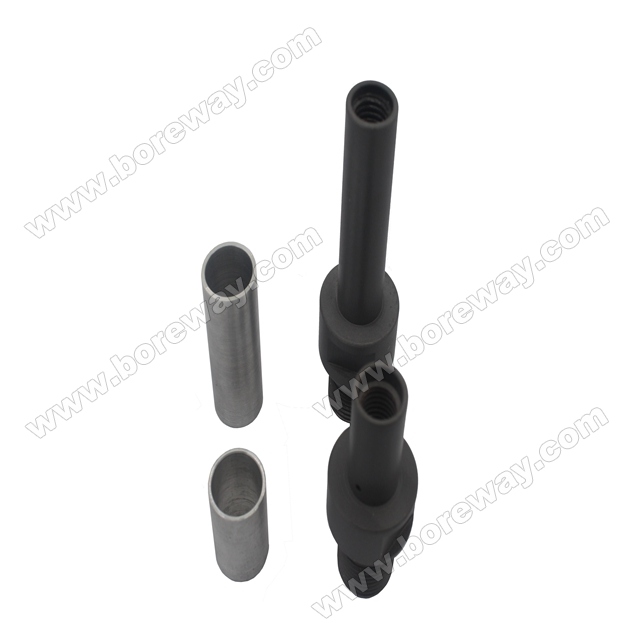

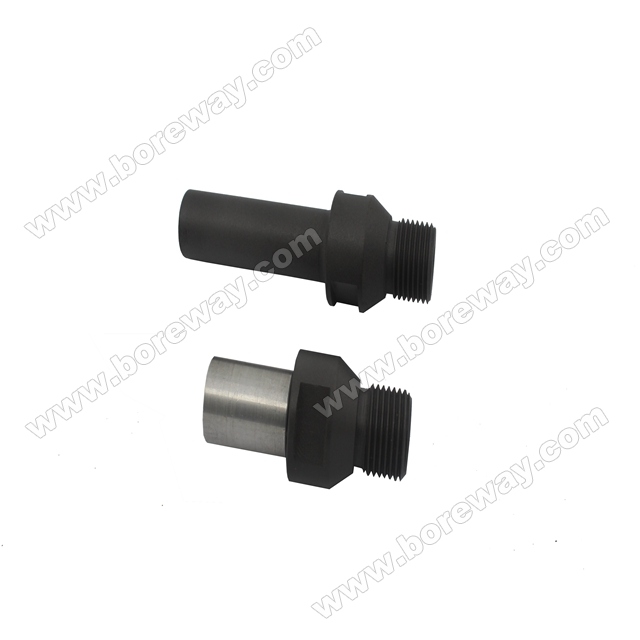

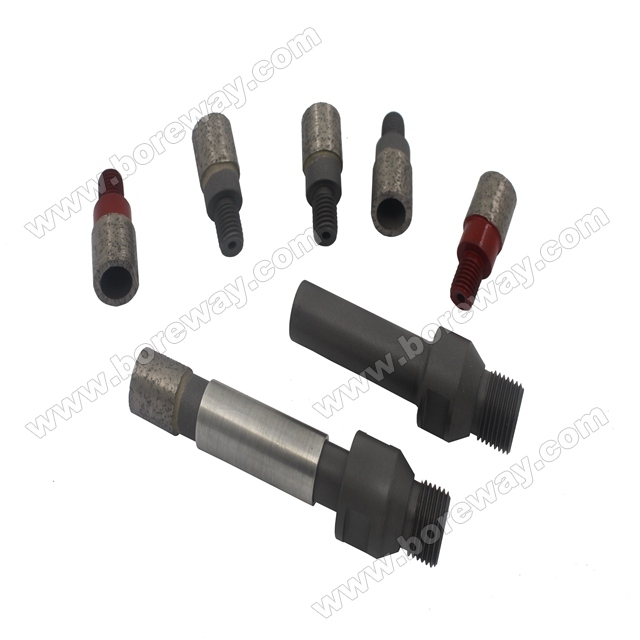

CNC screw core bit

This CNC screw core bit is mainly used for the center diamond drill screw holes, vias, blind

holes trimming, and milling slots on stone slabs such as kitchen panel,washbasin,etc.

This CNC screw core bit is fabricated with a 1/2’’ Gas thread connection.Suitable for

portable drilling rig and CNC machine tools. Flexible front screw drill replacement, as required

to select and adjust the drill pipe substrate, in order to achieve a change in terms of length.

In addition, the screw bit worn away only need to replace the drill part, the drill pipe can

continue to use the base.There are water holes in the side,it can easy to drainage and

cooling.

CNC screw core bit

The followings are normal specifications of our screw core bit:

The above specifications are for reference, other specifications can be ordered by customers.

Kindly noted:

When order CNC screw core bit please Confirm.

Code No. of CNC screw core bit( BW-SCB-00)
Type(?)

Diameter(?)

Segment length(?)

Thread(?)

Connection Shaft(?)

Quantity(?)
