Your position: Home > Products > Stone Tools > Stone Drilling Tools > Diamond Core Drill Dits > CNC diamond bit for drilling granite
| Product parameters |
| Name: | CNC diamond bit for drilling granite |
| Model Number: | BW-DDB-S03-CNCR5 |
| Product name | CNC diamond bit for granite |
| Specification | D50*150L*1/2"G |
| Diameter | 50mm |
| Length | 150mm |
| Connection | 1/2"G |
| Application | For drilling kinds of granite or hard stone,small project |
| Machine | Electrical hand-held drillers or CNC machine |
| Use | Wet Use |  |

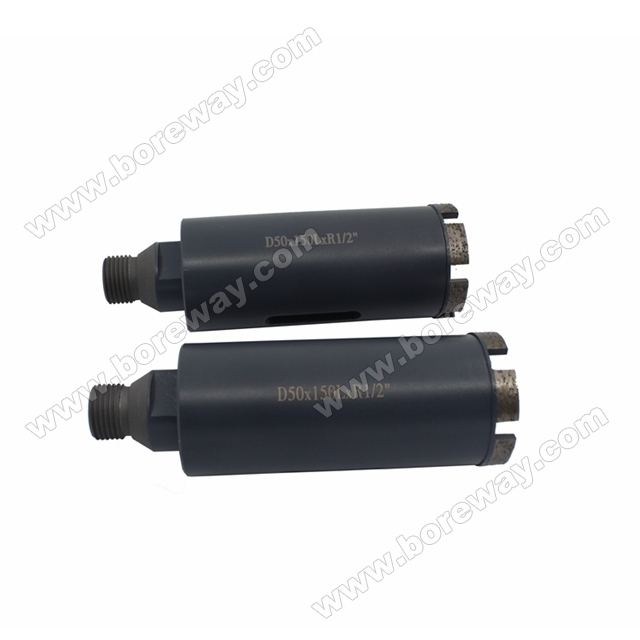

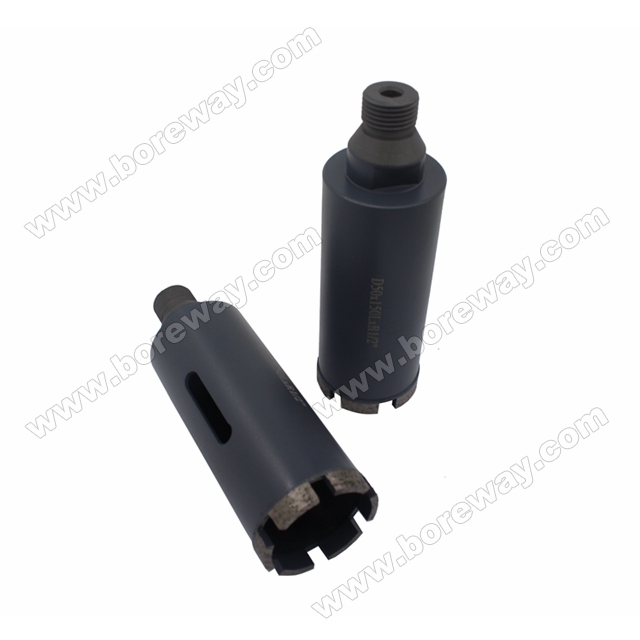

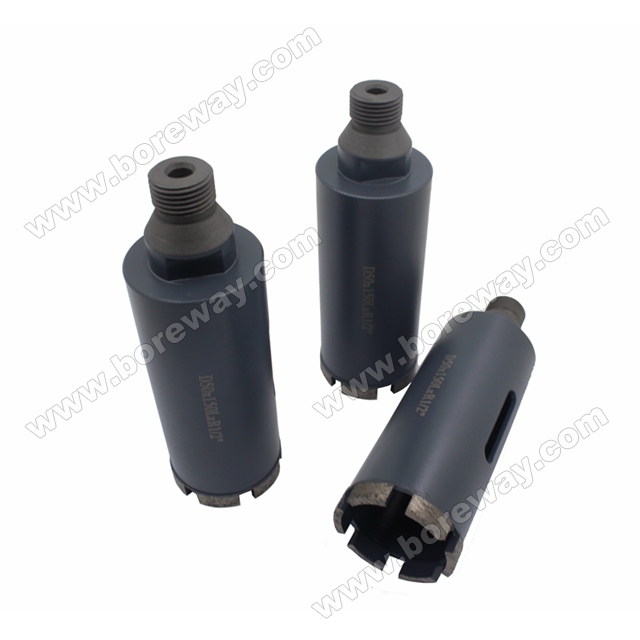

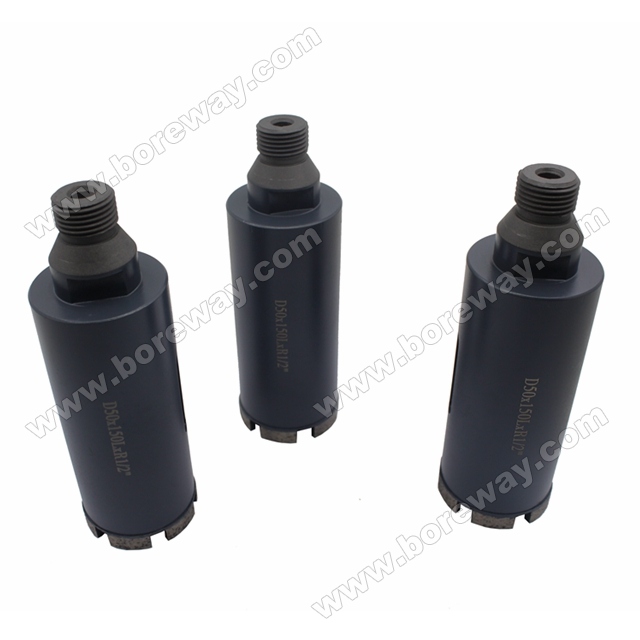

CNC diamond bit for driling granite
CNC diamond bit for stone are application on stand drilling machines or electrical hand-held drillers or CNC machine;
CNC diamond bit for stone are used for drilling kinds of granite or hard stone.Common uses would be small projects;
Silver welded is better for wet use;
CNC diamond bit for stone have long lifespan,high efficiency and good stable.
CNC diamond bit for driling granite
|
Diameter |
Segment Size |
Use |
Pipe Length |
Adapter |
|
20mm(3/4”) |
17/12*3*10 |
Dry or Wet use |
100mm |
5/8”-11 1/2”G M14 |
|
22mm(7/8”) |
17/12*3*10 |
|||
|
25mm(1”) |
17/12*3*10 |
|||
|
29mm(1-1/8”) |
17/12*3*10 |
|||
|
32mm(1-1/4”) |
16*3*10 |
|||
|
35mm(1-3/8”) |
16*3*10 |
|||
|
38mm(1-1/2”) |
16*3*10 |
|||
|
42mm(1-5/8”) |
16*3*10 |
|||
|
45mm(1-3/4”) |
16*3*10 |
|||
|
50/51mm(2”) |
16*3*10 |
|||
|
57mm(2-1/4”) |
22*3.5*10 |
|||
|
60mm(2-3/8”) |
22*3.5*10 |
|||
|
63mm(2-1/2”) |
22*3.5*10 |
|||
|
70mm(2-3/4”) |
22*3.5*10 |
|||
|
76mm(3”) |
22*3.5*10 |
|||
|
80mm(3-1/8”) |
22*3.5*10 |
|||
|
89mm(3-1/2”) |
22*3.5*10 |
|||
|
102mm(4”) |
22*3.5*10 |
|||
|
110mm(4-3/8”) |
22*3.5*10 |
|||
|
127mm(5”) |
24*4*10 |
