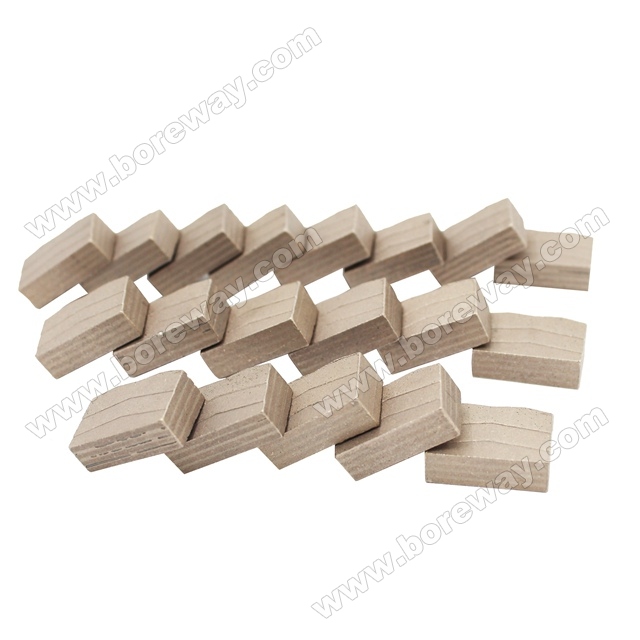

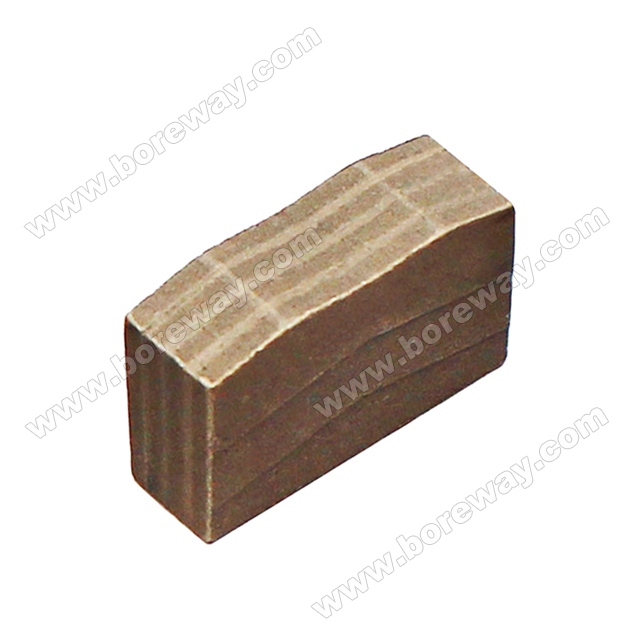

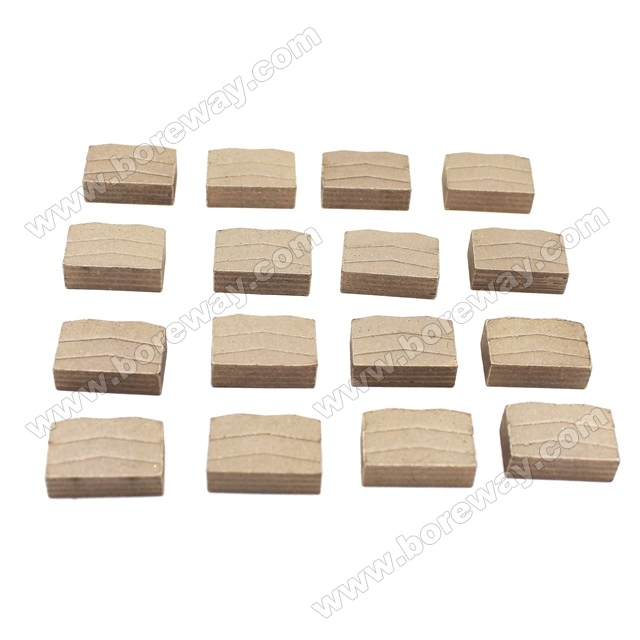

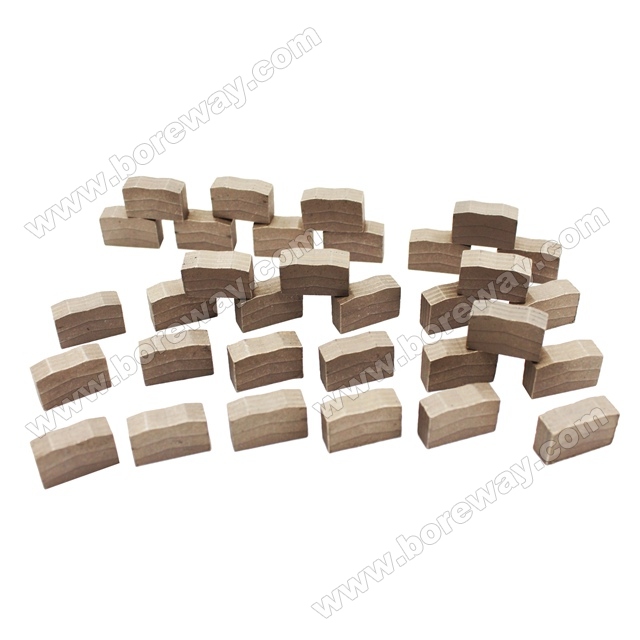

Boreway M Shape Diamond Segments For Cutting Black Granite

Product parameters
Name: Boreway M Shape Diamond Segments For Cutting Black Granite
Model Number: BW-DSBG-00
Place of Origin: Fujian, China
Brand Name: Boreway
No.of teeth: 120pcs
Segment length: 24mm
Segment height: 15mm
Segment thickness: 10mm,9mm
Size: 1800mm,72inch
Application: For granite,marble,etc
Technology: Cold pressed and Hot pressed Sintered

Product Description


Boreway M Shape Diamond Segments for Cutting Black Granite



Advantages:

1.Diamond/steel power raw material.

2.M shape diamond segments is high effective, environmental friendly, easy operation, long lifespan and no edge broken.

3.Hot press,cold press technology, silent core segment to prove high quality cutting result.

Descriptions:

M shape diamond segments or rims are made up of a mixture of diamonds and metal powders. Diamonds used in blades are almost exclusively manufactured diamonds in various grit size and quality grades.

In the manufacturing process, the metal powder and diamond grit mixture is hot pressed at high temperatures to form a solid metal alloy (called the bond or matrix) in which the diamond grit is retained.

M shape diamond segments is slightly wider than the blade core. This allows the cutting edge to penetrate through the material while protecting the steel body.

Specifications:

The following are the m shape diamond segments normal specifications we are selling:

1000-3500 mm Granite Segment Blade dimension

Diameter

Dimension of Segment

No.of teeth

Inch

mm

length

Thickness

Height

Number

40"

1000

24

7.4/6.8

15

70

44"

1100

24

7.4/6.8

15

74

48"

1200

24

7.5/7.0

15/20

80

52"

1300

24

8.0/7.4

15/20

88

56"

1400

24

9.0/8.4

15/20

96

64"

1600

24

9.0/8.4

15/20

108

72"

1800

24

10/9.0

15/20

120

80"

2000

24

10.6/9.8

15/20

128

88"

2200

24

11.5/10.5

15/20

136

100"

2500

24

11.8/10.8

15/20

140

120"

3000

24

13.0/12

15/20

160

140"

3500

24

13.5/12.5

15/20/30

180

The above specification & photos is only for Reference, other specification or design can be ordered by customers.

Applications:

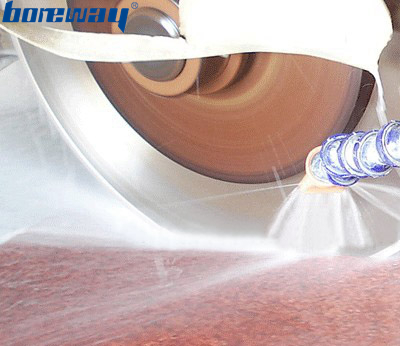

1800mm m type diamond blade segment  for Block Cutting of Granite, Sandstone, various hard stone with quartz.

 M shape diamond segments

Application machine:

M shape diamond segments for silver welding by high frequency welding machine.

M shape diamond segments
