Boreway K M A V W Shaped Segments of Stone Block Cutting for Machine Manufacturer

Add / Delete to Basket

Product parameters

Name:	Boreway K M A V W Shaped Segments of Stone Block Cutting for Machine Manufacturer
Model Number:	BW-DSG-01-20
Segment No.:	140pcs
Hole:	100/120MM
Saw blade thickness:	9.0(10.0)MM
Max.RPM:	400 RPM
Diameters:	2500MM,120Inch
Segment Size:	24x12.5x15MM
Technology:	Sintered,Hot Press
Cutting Material:	Used for Cutting Marble

Product Description

Boreway K M A V W Shaped Segments of Stone Block Cutting for Machine Manufacturer

Specification:

The following specifications of K M A V W Segments of Stone Block:

Diameter		Thickness	Teeth	Segment Size			Hole	Max. RPM
Inch	mm	mm	Pcs/set	L	W	H	mm	RPM

100	2500	9.0(10.0)	140	24	12.5	13/15	100/120	400

Product Name	Stone Cutting Segments For All Kinds Of Granite
Size	24x12.5x15MM ( Specialized in making any sizes of diamond segment, we can make many different kinds of quality and sizes to fit your market and your stone. )
Diameter	250mm-3500mm blade ( other blades 250mm-800mm segments can make )
Application	Used for cutting Marble( also other more segments for granite, sandstone, limestone,concrete )
Feature	1.Diamond Cutting Multi-purpose Circular Rotary Abrasive Tools adopts diamond sheet material and metal 2.A large number of products are exported to Eastern Europe, North America, South America, the Middle East, Australia and other overseas markets; the product quality has been unanimously recognized by overseas customers. Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Package	Color box,skin packing,white PAPER box etc

In addition, the speed of the combined saw blade is required to be 280-320 rpm, and the trolley can not be transported too fast!

Other specifications of cutter segment:

PS:A certain amount of cooling water should be added when cutting the cutter head, and the spray water flow should be large, so that it has a better cooling effect!

Multi-blade and single-disc saw blade specifications:

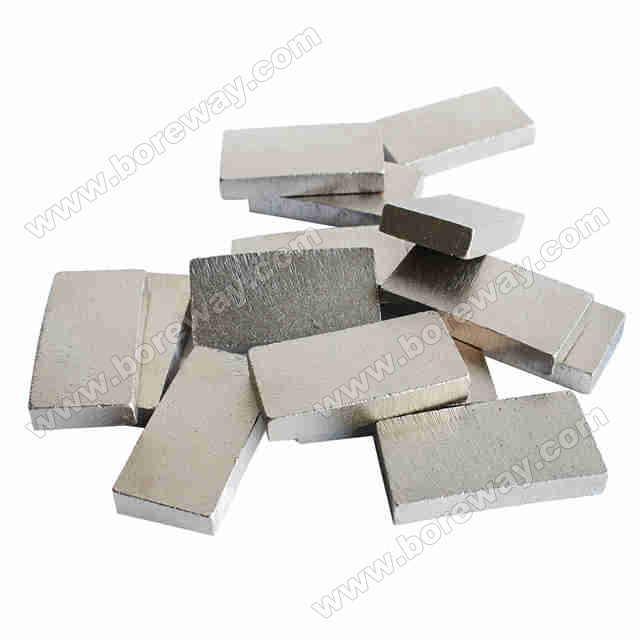

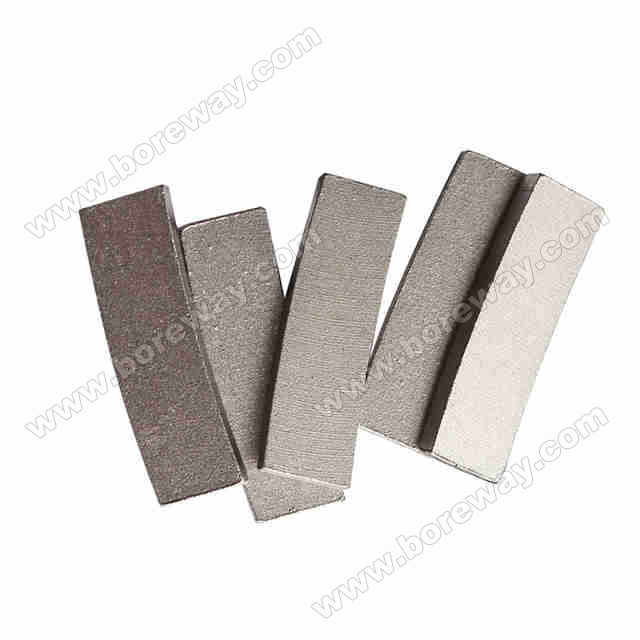

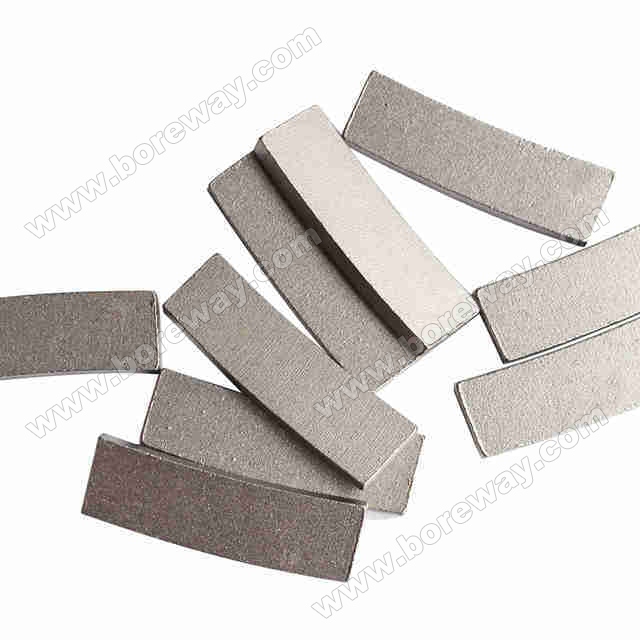

K M A V W Segments of Stone Block

Advantage:

1 K M A V W Segments of Stone Block has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long lifespan

2 Segment is good cutting result:smooth cutting,flat surface and even size

3 Stable cutting,narrow cutting gap,stone waste reduction 4M-Shape segment is easy for diamond opening

Application:

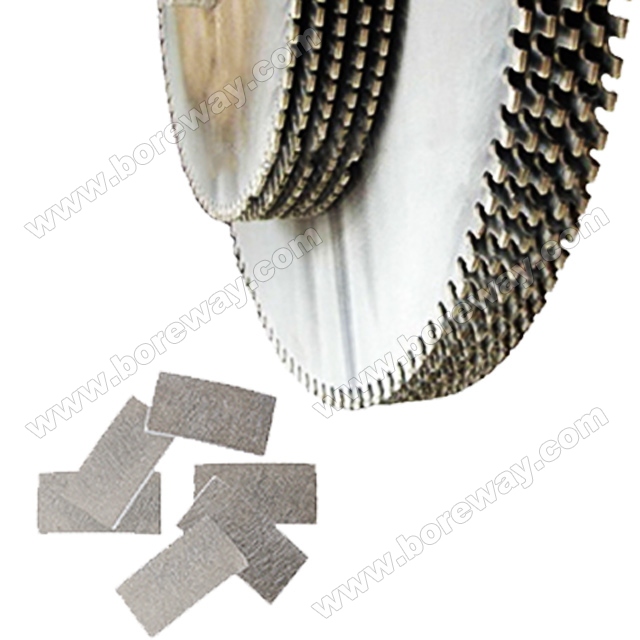

K M A V W Segments of Stone Block with normal flat shape of circular saw blades for block cutting of Marble,Granite, Sandstone, various hard stone with quartz.

Cutting effect:

Application machine:

K M A V W Segments of Stone Block suitable for bridge cutting machines, manual handling cutting machines or table cutting machines.

K M A V W Segments of Stone Block silver welding by high frequency welding machine.

Saw Blade Segment is wet use

High frequency silver welded machine is recommended instead of welding by fire.

Don’t weld diamond segment for a long time, just a few minutes, otherwise the diamond inside might be damaged because of the high temperature, which will affect the cutting performance of the granite segment greatly.

Relatsd Products:

Multi Blade Diamond Segment	W Shape Edge Cutting Diamond Segment for Granite	1400mm Diamond Cutting Tools Marble Block Diamond Segments

About us:

Our serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?

Please test in a very small order and then you will know the quality. Now, so
Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Plese note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.

-Lyon Chang-

Fujian Nan'an Boreway Machinery Co.,Ltd.

Tel,Wechat,WhatsApp: +86 18650679939

E-mail: boreway@boreway.com
