Boreway High Quality 1100mm Diamond Circular Cutter Blade Segment For Wholesaler

Add / Delete to Basket

Product parameters

Name:	Boreway High Quality 1100mm Diamond Circular Cutter Blade Segment For Wholesaler
Model Number:	BW-DSGB-02-03
Shape:	V shape
Material:	Diamond
Segment No.:	74pcs
Outer diameter:	1100MM
Segment size:	24X7.5X15mm
Key word:	Diamond cutting segment
Technology:	Cold pressed,Hot pressed Sintered
Welding Technology:	Silver welding by high frequency machine

Product Description

Boreway High Quality 1100mm Diamond Circular Cutter Blade Segment For Wholesaler

Feature:

Typical features of high quality 1100mm diamond circular cutter blade segment

1. Sharpness, Fast Cutting

2. Great adaptability, No Chipping

3. Customize different formulars and various hardness metal bonds according to stone nature.

Advantage:

1. Long cutting life and stable performance.

2. Segment is very sharp, high efficiency.

3. Advanced production process for sintering.

4. Strict product quality inspection processes.

5. High quality 1100mm diamond circular cutter blade segment for cutting granite in high speed without chipping.

6. Using high quality raw materials, imported cobalt powder and nickel powder, and high-quality diamond single crystals

Specification:

The following are normal specifications high quality 1100mm diamond circular cutter blade segment:

Code No.

Diameter

(mm)

Segment Size(mm)

Segment No.

(pcs/set)

Length

Width (Taper Type)

Height

BW-DSGB-02-03

1100

7.5/7.0/6.5

12/15/20

Specially designed tools are available for any standard application. We can

Tailor your tools to your specific needs

PS:A certain amount of cooling water should be added when cutting the cutter head, and the spray water flow should be large, so that it has a better cooling effect!

In addition, the speed of the combined saw blade is required to be 280-320 rpm, and the trolley can not be transported too fast!

Product Detail:

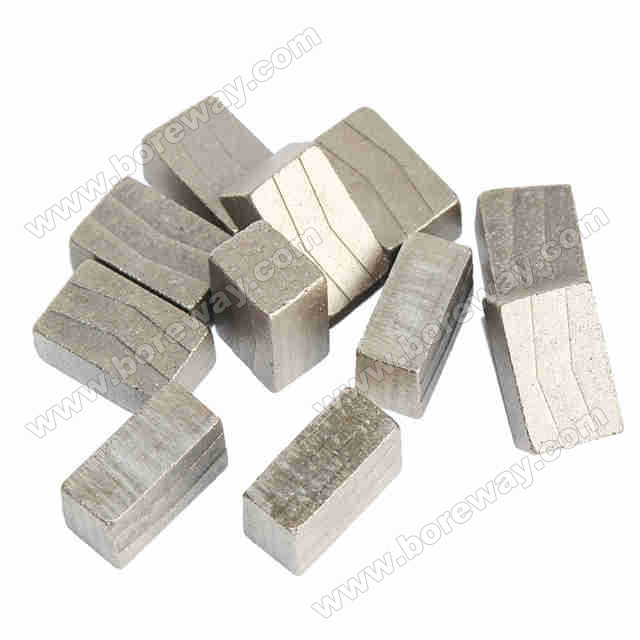

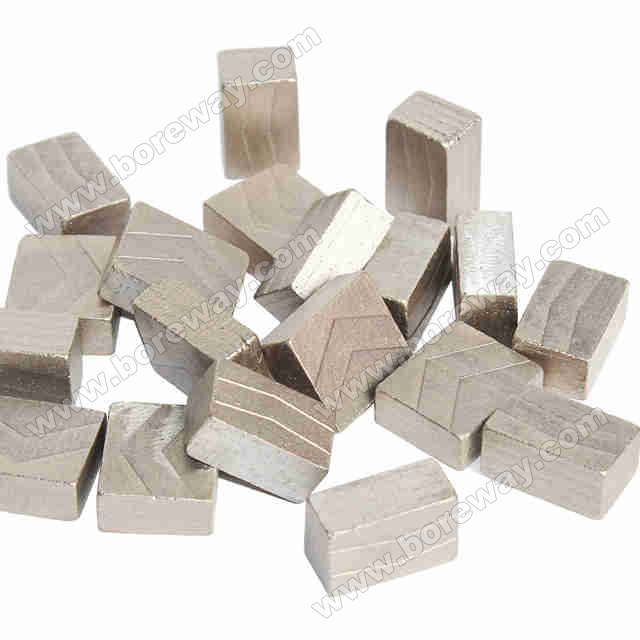

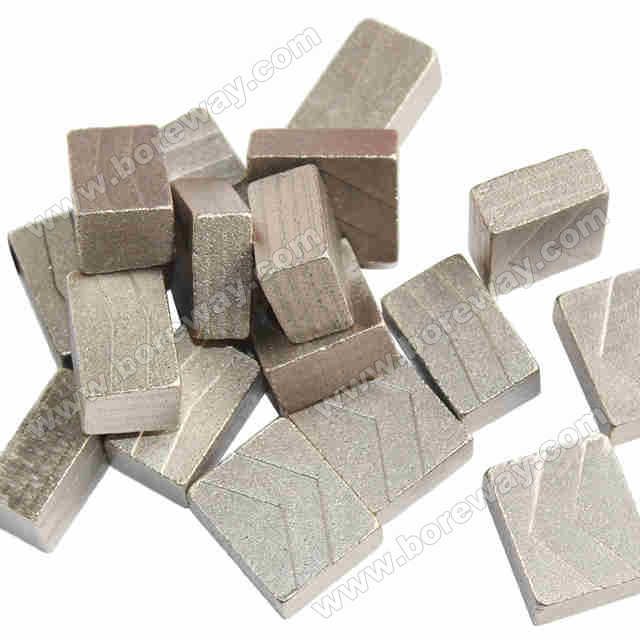

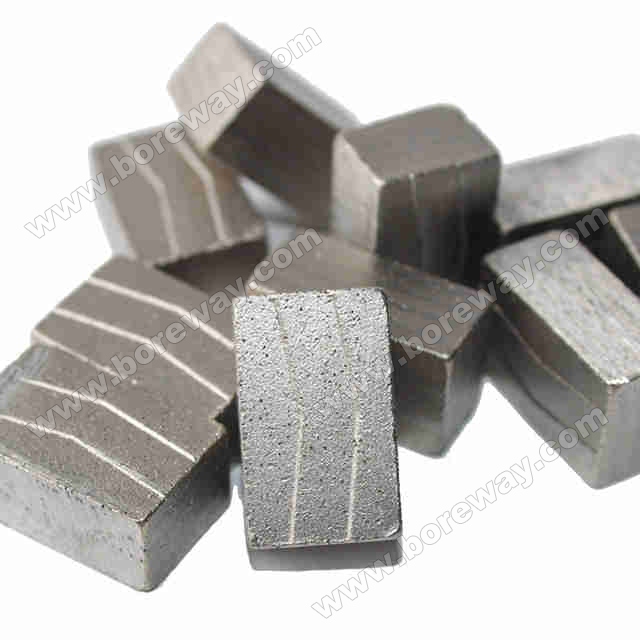

High quality 1100mm diamond circular cutter blade segment

Application:

High quality 1100mm diamond circular cutter blade segment for granite cutting used for single or multi circular saw blade from 900mm to 3500mm, Cutting of Granite, Sandstone, various hard stone with quartz.

High quality 1100mm diamond circular cutter blade segment should match the nature of the material to be cut.

1. If the material is hard, the bond of the diamond segments should be softer.

Because diamonds will become blunt when cutting hard material. Softer bond can be

worn down with the blunt diamonds faster, then make new diamonds beneath be more easily exposed to participate in cutting

2. If the material is relatively softer, the bond should be harder.

The diamonds can last longer in this care. The harder bond wears slower, so that it can hold the diamonds also longer. This can make better use of the diamonds and prolong the diamond tool's service life.

Application machine:

High quality 1100mm diamond circular cutter blade segment

High frequency silver welded machine is recommended instead of welding by fire.

Don’t weld diamond segment for a long time, just a few minutes, otherwise the diamond inside might be damaged because of the high temperature, which will affect the cutting performance of the granite segment greatly.

Relatsd Products:

Diamond Saw Blade Segments of Edge Cutting for Granite	500-1200mm diamond segment stone cutting segment	Core bit of reinforced concrete stone manufacturer

About us:

Our serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?

Please test in a very small order and then you will know the quality. Now, so
Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Plese note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.
