Boreway Diamond Gang Saw Blade Segment Cutting Marble For Gang Saw Machine Manufacturer

Add / Delete to Basket

Product parameters

Name:	Boreway Diamond Gang Saw Blade Segment Cutting Marble For Gang Saw Machine Manufacturer
Model Number:	BW-DSGMB-00
Place of Origin:	Fujian, China
Brand Name:	Boreway
Segment Length:	20mm,24mm
Segment Width:	3.5mm to 5.5mm
Segment Height:	8mm,10mm,12mm
Segment bond:	Hard Bond/Soft Bond
Application:	Marble,sandstone,basalt etc
Machine:	Gang saw machine,marble block dressing machine

Product Description

Boreway Diamond Gang Saw Blade Segment Cutting Marble For Gang Saw Machine Manufacturer

Advantages:

1) our diamond gang saw blade segment adopts diamond sheet material and metal matrix (Ti + Cr + Ni + CO, etc.) to form chemical bond, which can reduce threshing, improve cutting edge and prolong service life.

2) changing single grinding into the combination of grinding and cutting to optimize the sawing performance.

3) good sharpness, fast cutting speed and high cutting efficiency.

4) good wear resistance coefficient, long service life and high comprehensive cost performance.

5) fast cutting, small cutting seam, flat and even stone surface.

6) a large number of products are exported to Eastern Europe, North America, South America, the Middle East, Australia and other overseas markets; the product quality has been unanimously recognized by overseas customers.

Matters needing attention:

A certain amount of cooling water should be added when cutting the cutter head, and the spray water flow should be large, so that it has a better cooling effect!

Descriptions:

Diamond gang saw blade segment for the precision cutting of natural stones, the gang saw blades of variable dimensions and capacities are serving all types of marbles and other material plants (except granite) for well shaped blocks.

Specifications:

The following are the normal specifications we are selling of diamond gang saw blade segment:

Segment Specification (mm)			Steel Core Thickness	Purpose	Blades No. per Machine
Length	Width	Height	Steel Core Thickness	Purpose	Blades No. per Machine
20	3.5/4.0/4.5/5.0	8/10/12	2.5/3.0/3.5mm	Gangsaw Cutting	60-80pcs
24	4.5/5.0/5.5	10/12	3.0/3.5mm	Block Dressing	1pc

Recommended Parameters	Slow Moving				High Speed Moving
Length of Stroke, mm	360	400	500	600	500	540	700	750	800
Strokes/min	80	80	80	80	120	120	120	120	120
Blade velocity, m/s	0.96	1.07	1.33	1.60	2.00	2.16	2.45	2.63	2.93
General Specifications
Required powder per blade
20-30 segments per blade	1.0-1.5kw				1.5-2.2kw
30-45 segments per blade	1.5-2.0kw				2.0-2.8kw
Down feed (cm/h)
Marble	10-20				15-35
Limestone	12-25				20-30
Agglomerate	10-20				25-35
Amount of cooling water per blade l/min	7-8				9-10
Deflection
Soft stone, mm	1.5-3.5				1.8-4.0
Hard stone, mm	1.5-3.5				1.8-4.0
Tension, kN (t)	80-90(8-9)				90-100(9-10)

Applications:

Diamond gang saw blade segment for the precision cutting of marbles and other material plants(except granite).

Diamond gang saw blade segment only wet use.


One-Blade Dressing	Gang Saw Blade	Gang Saw Segments

Machine:

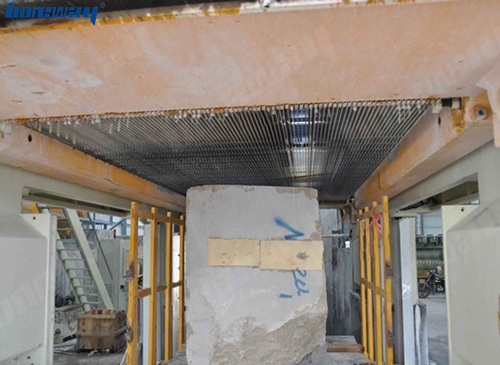

Diamond gang saw blade segment usually there are 60-80pcs blades of one gang saw machine, also the segments is used for one-blade marble block dressing machine.

Application machine:

Diamond gang saw blade segment for silver welding by high frequency welding machine.
