Boreway 2700mm Long Lifespan Saw Blade Diamond Segments For Cutting Granite

Product parameters
Name: Boreway 2700mm Long Lifespan Saw Blade Diamond Segments For Cutting Granite
Model Number: BW-DSGB-02-14
Place of Origin: Fujian, China
Brand Name: Boreway
Seg.No.: 140pcs
Disc diameter: 2700mm

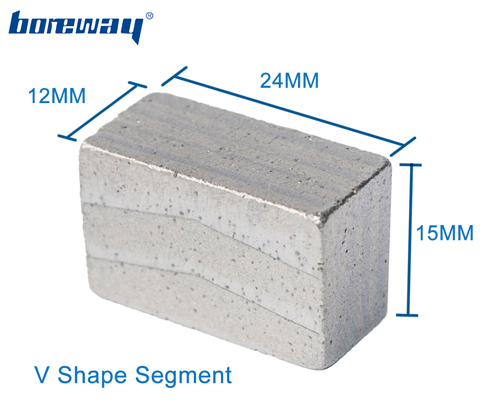

Seg. size: 24x12x15mm
Welding way: Silver welding
Material: Diamond,Co,Ni,etc
Welding method: Silver welding by high frequency welding machine.

Product Description


Boreway 2700mm Long Lifespan Saw Blade Diamond Segments For Cutting Granite

Feature:
1. For diameter from 900mm to 3500mm
2. Special powder mixture for each cutting of hard, medium hard, soft, and abrasive granite
3. Sandwich or multi-layered segment reduce side friction
4. Specification for your reference, customized size are available
5. 2700mm long lifespan saw blade diamond segments for single circular saw blade and multi-blade cutter,wire saw blades

Advantage:

1.2700mm long lifespan saw blade diamond segments are high efficiency

2.Cutting granite in high speed without chipping.

3.Long cutting lifespan and stable performance

4.Advanced production process for sintering

5.Using high quality raw material imported Co,Ni and high-quality PCD,PDC

6.Strict product quality inspection process

Segments for all kinds of blades  and other different kinds of diamond tools.

Different segments can be formulated for exactly special application.



Specification:
The following are normal specification2700mm long lifespan saw blade diamond segments:

Code No.

Diameter

(mm)

Segment Size(mm)

Segment No.

(pcs/set)

Length

Width (Taper Type)

Height

BW-DSGB-02-14

2700

24,30

12/11.5/11

15/20/25

140

12.5/12/11.5/11

30

Specially designed tools are available for any standard application. We can
Tailor your tools to your specific needs

PS:A certain amount of cooling water should be added when cutting the cutter head, and the spray water flow should be large, so that it has a better cooling effect!

In addition, the speed of the combined saw blade is required to be 280-320 rpm, and the trolley can not be transported too fast!
Product Detail:

2700mm long lifespan saw blade diamond segments

2700mm long lifespan saw blade diamond segments

Application:
Hot pressed sintered sandwich diamond segment
2700mm long lifespan saw blade diamond segments for granite cutting used for single or multi circular saw blade from 900mm to 3500mm, Cutting of Granite, Sandstone, various hard stone with quartz.

1. If the material is hard, the bond of the diamond segments should be softer.
    Because diamonds will become blunt when cutting hard material. Softer bond can be
    worn down with the blunt diamonds faster, then make new diamonds beneath be more easily exposed to participate in cutting
2. If the material is relatively softer, the bond should be harder.
    The diamonds can last longer in this care. The harder bond wears slower, so that it can hold the diamonds also longer. This can make better use of the diamonds and prolong the diamond tool's service life.

Application machine:
2700mm long lifespan saw blade diamond segments
High frequency silver welded machine is recommended instead of welding by fire.
Don’t weld diamond segment for a long time, just a few minutes, otherwise the diamond inside might be damaged because of the high temperature, which will affect the cutting performance of the granite segment greatly.
Hot pressed sintered sandwich diamond segment
Relatsd Products:

2700mm long lifespan saw blade diamond segments
2700mm long lifespan saw blade diamond segments
2700mm long lifespan saw blade diamond segments

Please try best to offer below information when you are placing order:

Diam.: (inch or mm)
Segment Size (LxWxH, and thickness of steel core if possible)
Segment Formation (sandwich type or multiple line type)
Welding technology ( Silver Welding by high frequency machine, or Laser weldng)
Cutting target (for granite, sandstone or other hard stone including quartz)
Order quantity (how many pcs of blade or how many sets of segment)
Machine power (motor/rotation speed if possible)
Feeding speed (meter/minute)
Expected cutting depth(mm, at every turn, to and from)
Cooling system(water cooling or oil cooling, is it including coolant, the rate, liter/m )
Expected delivery time

About us:

  2700mm long lifespan saw blade diamond segments


Our serice:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?
Please test in a very small order and then you will know the quality. Now, so
Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Plese note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.
