Product parameters |

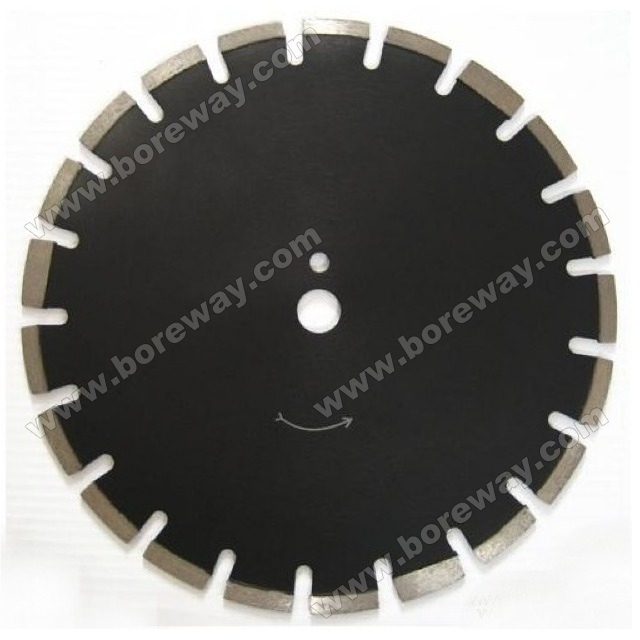

Asphalt & Green Concrete Cutting Diamond Saw Blades With Drop Segment (Low Protection Teeth)
Laser welded Diamond Saw Blade with protection teeth used for Asphalt, Green Concrete and Abrasives material cutting with high efficiency.
Drop segments prevent wear and tear of the steel core by abrasive materials.

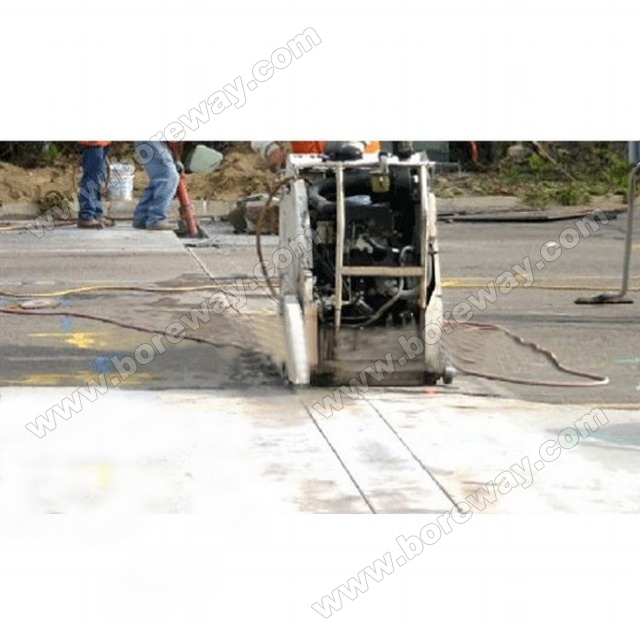

Suitable for Flat saw machines with power more than 35HP.
Code No. | Diameter (mm/inch) | Segment Size (mm) | Segment No. (pcs/set) | Welding Method |
BW-SBA-01-01 | 300mm(12") | 40x3.0x10 | 21 | Laser Welded |
BW-SBA-01-02 | 350mm(14") | 40x3.2x10 | 24 | |
BW-SBA-01-03 | 400mm(16") | 40x3.6x10 | 28 | |
BW-SBA-01-04 | 450mm(18") | 40x4.0x10 | 32 | |
BW-SBA-01-05 | 500mm(20") | 40x4.2x10 | 36 | |
BW-SBA-01-06 | 600mm(24") | 40x4.6x10 | 42 |
Kindly Noted:
When place order for Diamond Asphalt & Green Concrete Saw Blades please inform the following if possible:
Saw Blade Code No.
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Installation hole (If, Need Customer's Drawing)
Silent or None Silent Saw Blade Please indicate
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if possible please inform Steel Core Thickness)
Use of saw blade (For Marble, Limestone or other material)
Quantity NO. (How many pcs blades your would like to order)
Machine Powder/RPM (If possible)
Expected Shipping Date
Special Requirements (If)
Please use the following before operating the cutting:
