Product parameters

Name:	6mm diamond coring drill bit
Model Number:	BW-DDB-S01-01
Product name	Diamond coring drill bit
Diameter	6mm
Pipe length	100mm
Connection	12B
Application	For granite,marble and many other stone
Use	Dry and wet use
Machine	Diamond drill electric hand-held or CNC drilling machine
Advantage	High efficiency and long lifespan

Product Description

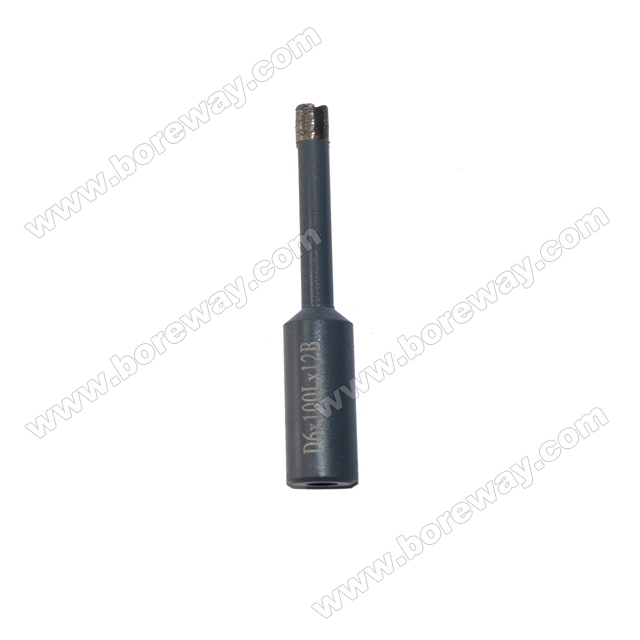

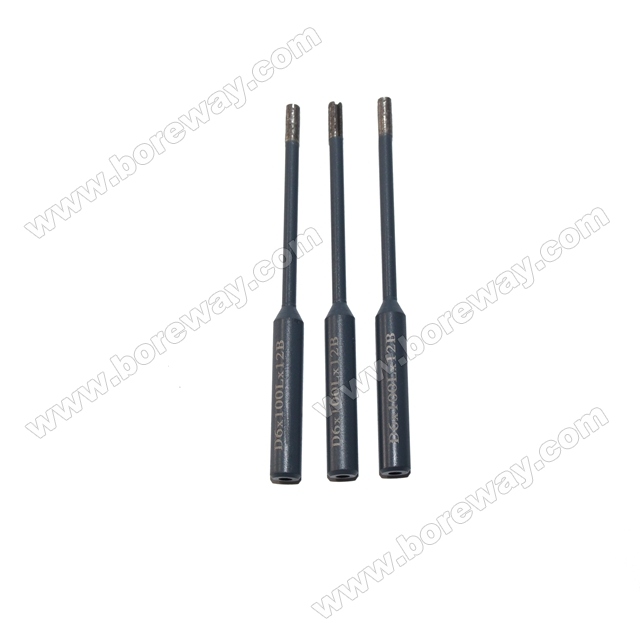

Diamond coring drill bit

Diamond coring drill bits are suitable for small diameter diamond drill electric hand-held or on a CNC

drilling machine, suitable for all kinds of stone, such as the drilling of granite, marble, sandstone, limestone,

slate, and other small caliber.Specially for small-diameter hole drilling.It can be dry or wet use.

Diamond coring drill bit

The following is the normal size of our diamond coring drill bit:

Code No.	Diameter	Segment Size	Use	Pipe Length	Welding Method	Adaptor
BW-DDB-S01-01	6mm (1/4”)	D6xH11	Wet or Dry	4" (100mm)	Silver Welding	5/8"-11 M14 1/2 Gas 10mm
BW-DDB-S01-02	8mm (5/16”)	D8xH11
BW-DDB-S01-03	10mm (3/8”)	D10xH11
BW-DDB-S01-04	12mm	D12xH11
BW-DDB-S01-05	13mm (1/2”)	D13xH11
BW-DDB-S01-06	14mm	D14xH11
BW-DDB-S01-07	16mm (5/8”)	D16xH11
BW-DDB-S01-08	18mm	D18xH11

The above specifications are for reference only.Other specifications can be ordered by customers.

When order diamond coring drill bit please Confirm.

Code No. of diamond coring drill bit(BW-DDB-S01-01)
Diameter(?)

Segment length(?)

Thread(?)

Quantity(?)
