5mm diamond core drill bit

Product parameters
Name: 5mm diamond core drill bit
Model Number: BW-DDB-S01-00
Product name Diamond core drill bit
Diameter 5mm
Pipe length 125mm
Connection 12B
Application For granite,marble and many other stone
Use Dry and wet use
Machine Diamond drill electric hand-held or CNC drilling machine
Advantage High efficiency and long lifespan

Product Description

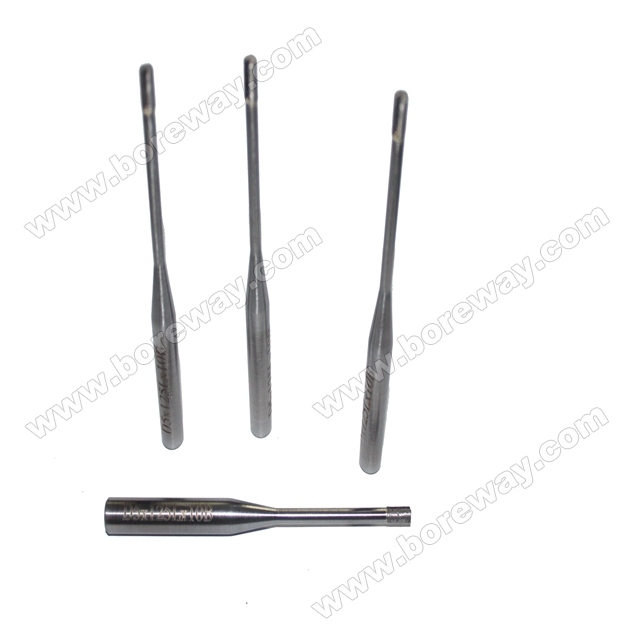

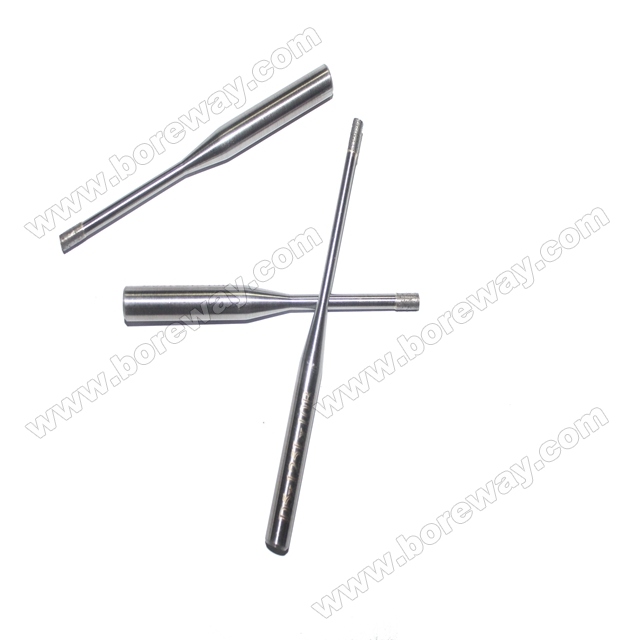

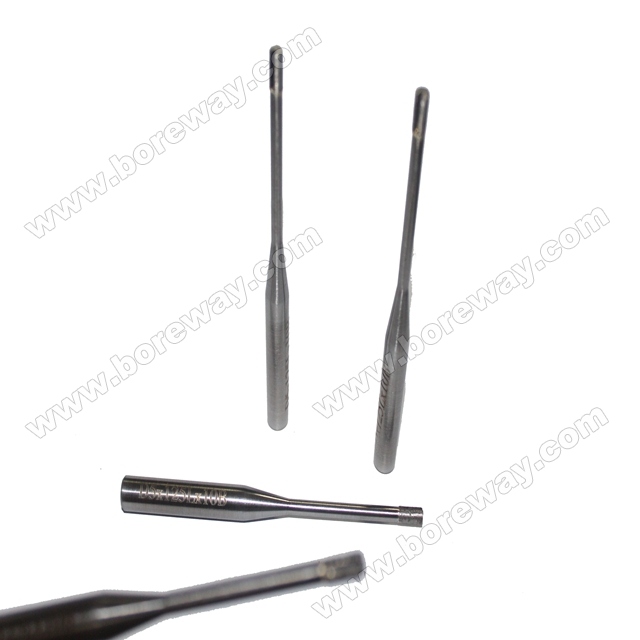

Diamond core drill bit
Diamond core drill bits are suitable for small diameter diamond drill electric hand-held or on a CNC

drilling machine, suitable for all kinds of stone, such as the drilling of granite, marble,

sandstone, limestone, slate, and other small caliber.Specially for small-diameter hole drilling.It can be dry or wet use.

Diamond core drill bit
The following is the normal size of our diamond core drill bit:
Code No.
Diameter
Segment
Size
Use
Pipe
Length
Welding
Method
Adaptor
BW-DDB-S01-01
6mm
 (1/4”)
D6xH11
Wet
or
Dry
4"
(100mm)
Silver Welding
5/8"-11
M14
1/2 Gas
10mm
BW-DDB-S01-02
8mm
 (5/16”)
D8xH11
BW-DDB-S01-03
10mm
 (3/8”)
D10xH11
BW-DDB-S01-04
12mm
D12xH11
BW-DDB-S01-05
13mm
(1/2”)
D13xH11
BW-DDB-S01-06
14mm
D14xH11
BW-DDB-S01-07
16mm
(5/8”)
D16xH11
BW-DDB-S01-08
18mm
D18xH11

 The above specifications are for reference only.Other specifications can be ordered by customers.

Kindly noted:

When order diamond core drill bit please Confirm.
Code No. of diamond core drill bit(BW-DDB-S01-00)
Diameter(?)
Segment length(?)
Thread(?)
Quantity(?)
