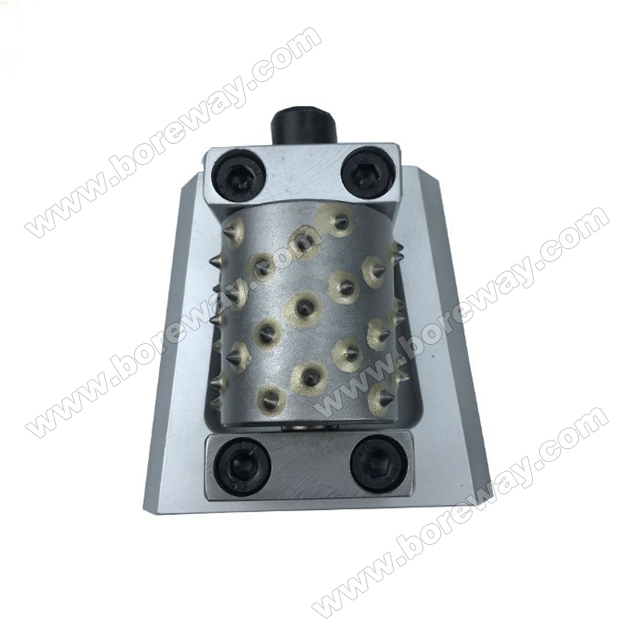

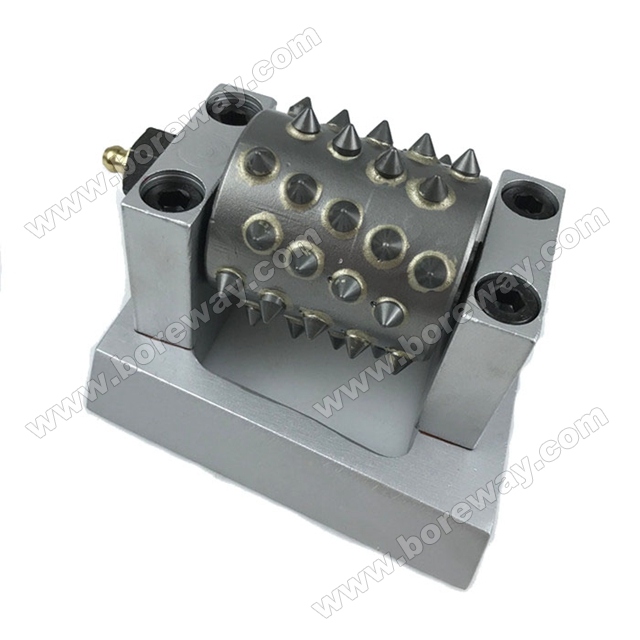

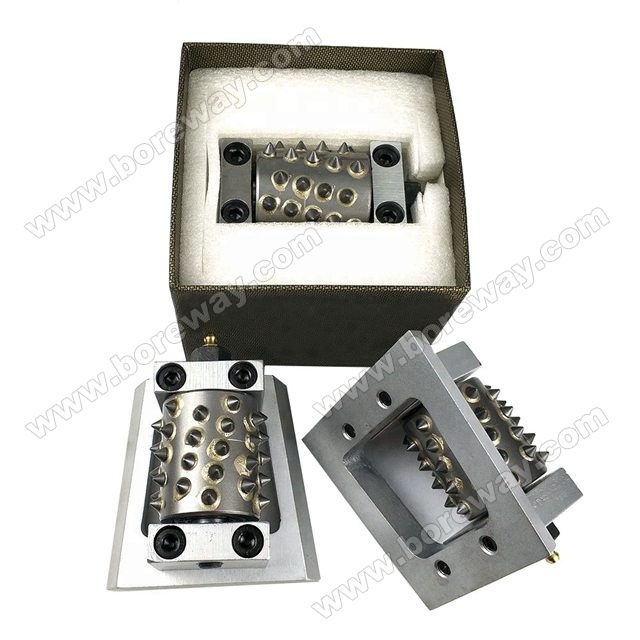

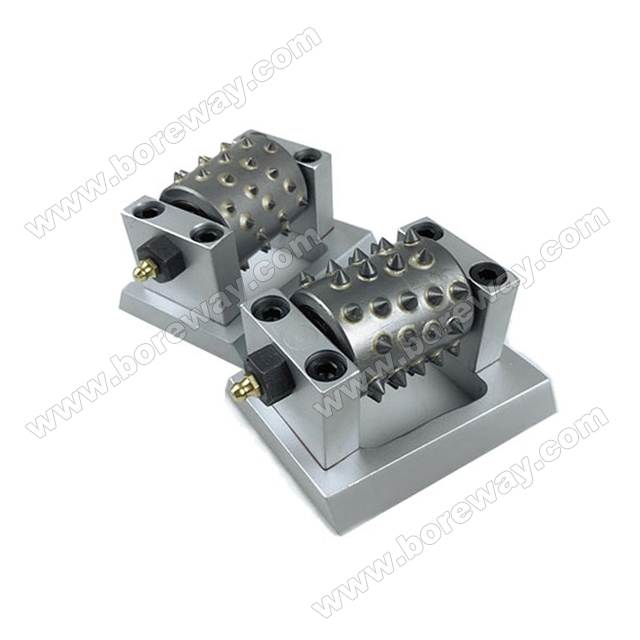

4.7mm Tungsten Carbide Frankfurt Bush Hammer Tool
4.7mm Tungsten Carbide Frankfurt Bush Hammer Tool is used sophisticated welding technology and selecting high quality aluminum alloy to casting, bush hammered's grit can be changed through the adjustment of spring elasticity on bush hammer, manual grinding machine press. Both enlarging spring's interval to reduce spring elasticity and reducing machine's press can enhance bush hammer vibration to make bush hammered face rough. Widely used on granite, marble sandstone to make rough surface.
4.7mm Tungsten Carbide Frankfurt Bush Hammer Tool is suitable for surface fabricating, making bush hammered effects for stone products.As a professional and experienced diamond tools manufacturer, Boreway has various kinds of bush hammers for making litch surface on the stone or concrete, such as "tips" type, "sink type", "frankfurt type" and other types of bush hammers.
Advantages：
1) 4.7mm high grade tungsten carbide.
2) High performance and long lifespan.
3) Competitive price and superior quality.
4) Professional package and fast delivery.
5) Qucik change when replacing the frankfurt bush hammer.
6)Offering suggestion from experts and professional service.
Specifications:
The followings are the normal specifications of our 4.7mm Tungsten Carbide Frankfurt Bush Hammer Tool:
|
Model Number:
|
BW-BHR-F45S
|
|
Size:
|
45mm*L53mm*45S-4.7mm
|
|
Material:
|
Carbide And Steel
|
|
Use Type:
|
Wet And Dry Use
|
|
Bush Hammer Type:
|
Frankfurt Bush Hammer
|
|
Applied Machine:
|
Automatic Bush Hammer Machine
|
The above specifications are for reference, other specifications can be ordered by customers.
Technical Support:
What Is Bush Hammer?
Bush hammer is a masonry tool used to texturize stone and concrete, to make a litchi surface, which is a rough surface.Normally, We divide it into two categories. One is hand bush hammer (powered by human) and the other is rotary bush hammer (powered by electricity)
Theory:
Although the appearance is different from the hand bush hammer and rotary bush hammer. But the basic theory is the same. What works is the carbide tips. The carbide tips strike on the surface of stone or concrete, to make the rugged surface, or we call it litchi surface (Just like the shell of litchi). The litchi surface has 2 purposes, one is for the shape of beauty, and the other is for functional applications, like anti-skidding.
Now, let's focus on the rotary bush hammer, because it is more efficient and has a better performance than hand bush hammer.
1.There are several types and sizes for carbide of bush hammer, such as Tips, Slide, Satellite, Knurling and etc. Different types make different surfaces. The carbides are welded on a "core" and make up the bush hammer head together with other components. Let's look at the structure of tips type bush hammer head/roller for reference:
2.The bush hammer roller have several different connecting types with different machines, such as Frankfurt type, Single layer plate, Double layers plate, Sink down type. They could be used on manual tools, or floor grinders, or bush hammer machines.
3.The appearance of the final surface not only related to the shape, numbers and arrangement of carbide, but also the rotary speed and feed speed(for machines). The arrangement of bush hammer head/roller needs to be symmetrical, thus it will be balanced when working, also increase the lifespan.
