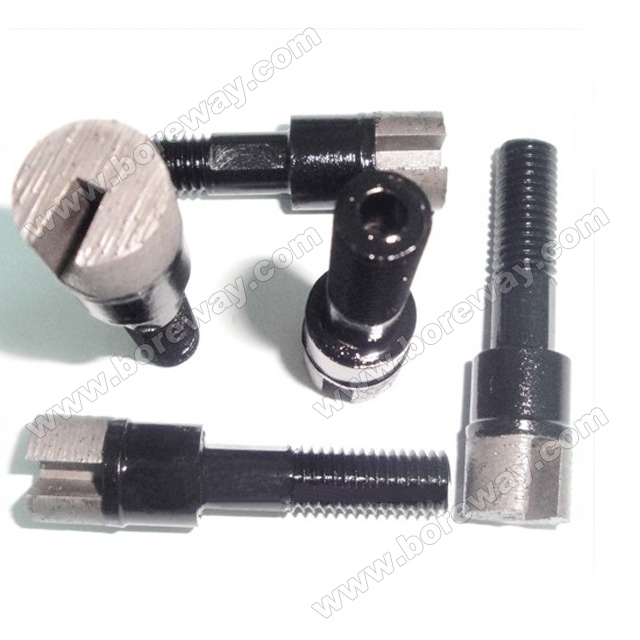

15mm Diamond Finger Bits with M10 shaft for CNC machine

Product parameters
Name: 15mm Diamond Finger Bits with M10 shaft for CNC machine
Model Number: BW-DFB-04
Type: Wet Use
Segment Height 10mm
Diameter: 15mm
Usage: For Granite Drilling and Grinding
Machine: CNC Machine
Advatage: Good sharpness and Long lifespan
Grinding result High gloss and lasting shining
Water Quantity Needed Medium
Performance: Hightly stable

Product Description


15mm Diamond Finger Bits with M10 shaft for CNC machine



Diamond Finger Bits are ideal for fast stock removal as well as truing up saw lines, Which is designed to cut Granite, Engineered Stone and Marble.Usually mounted on CNC or Radial Arm machines, for hole grinding, anchor and blind hole. Centerwaterfeed holes in each bit.


For Granite Drilling and Grinding, Wet Use



The following are the normal Specifications we are selling:



Diameter

Shaft Screw

Water Hole Segment Height
15mm

M10

3.0mm

10mm
Code No.: BW-DFB-04



The main points of this Finger Bit: The segment height should be less (Not more than 10mm) since the main working type is Grinding instead of drilling, and the Segment bond should be very soft.

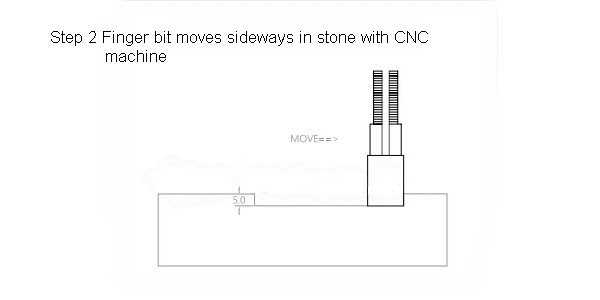

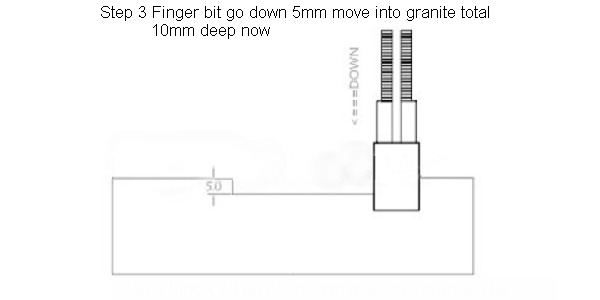

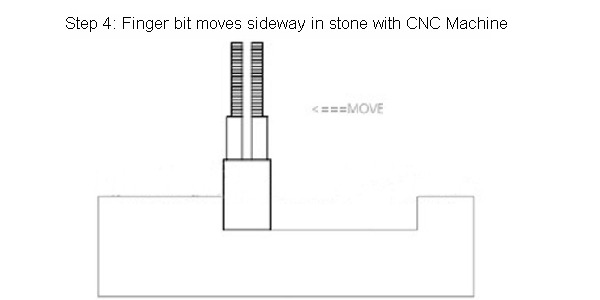

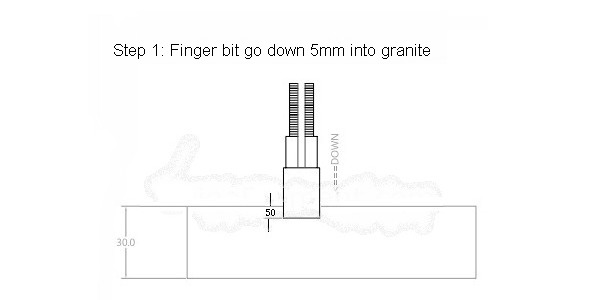

How to Use it?



















The above specification & photo is only for Reference, other or specialspecification can be ordered by customers.
