20mm vacuum brazed finger cutter bit

Add / Delete to Basket

Product parameters

Name:	20mm vacuum brazed finger cutter bit
Model Number:	BW-VCFB-02
Diameter	20mm
Bore	1/2 Gas
Segment Length	65mm
Specification	D2065T1/2G"
Use Type	Wet use
Usage	For grinding or polishing the stone and the counter,sink hole and so on
Advantage	High efficiency and long lifespan

Product Description

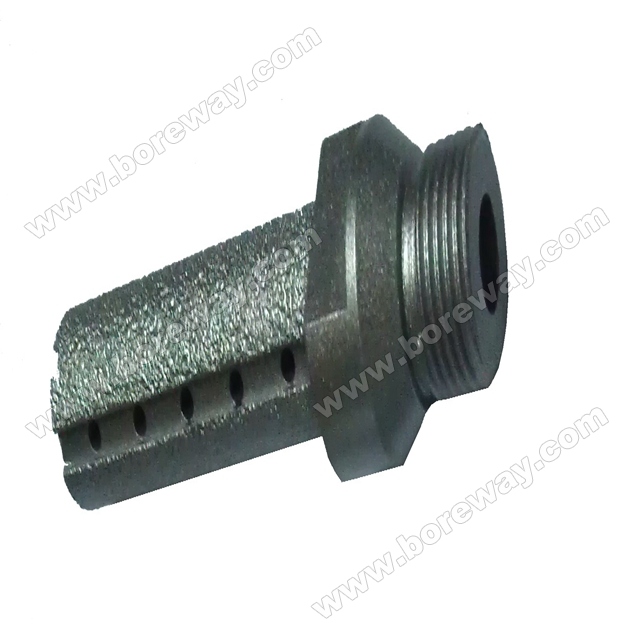

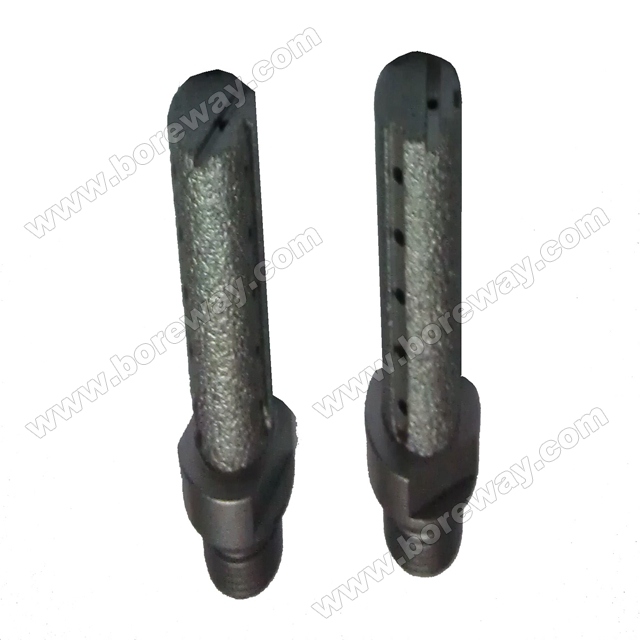

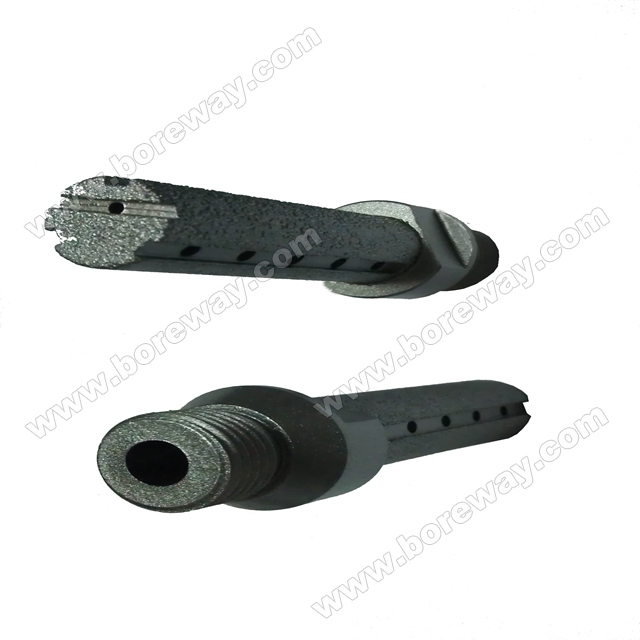

Vacuum brazed finger cutter bit

Vacuum brazed finger cutter bits are usually use after diamond core drill bits,fast removing dust,diamond sink wheel.

Vacuum brazed finger cutter bits ard ideal for fast stock removal as well as truing up saw lines , which is designed to cut granite, engineered stone and marble,counter tops, kitchen tops and basins.

Vacuum brazed finger cutter bits are usually mounted on CNC or Radial Arm machines, for hole grinding, anchor and blind hole.

Center water feed holes in each bit.

Wet use only.

Vacuum brazed finger cutter bit

The following are the normal specifications about the diamond finger bit:

Diameter	Bore (mm)	Segment Length	Segment No.
20mm (3/4")	1/2 Gas (Male Thread)	40mm 45mm 50mm 60mm	4-6pcs
25mm (1")
30mm (1-1/4")
35mm (1-3/8")
40mm (1-5/8")
50mm (2")
60mm (2-3/8")

The above the specification just a reference for clients.Other specification can be order by clients.

Kindly noted:

When order vacuum brazed finger cutter bits please Confirm.

Code No. of vacuum brazed finger cutter bits(BW-CF01-02?)

Diameter(?)

Bore(?)

Segment length(?)

Segment number(?)

Quantity(?)
